| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
N/A
|
Not available |
- |

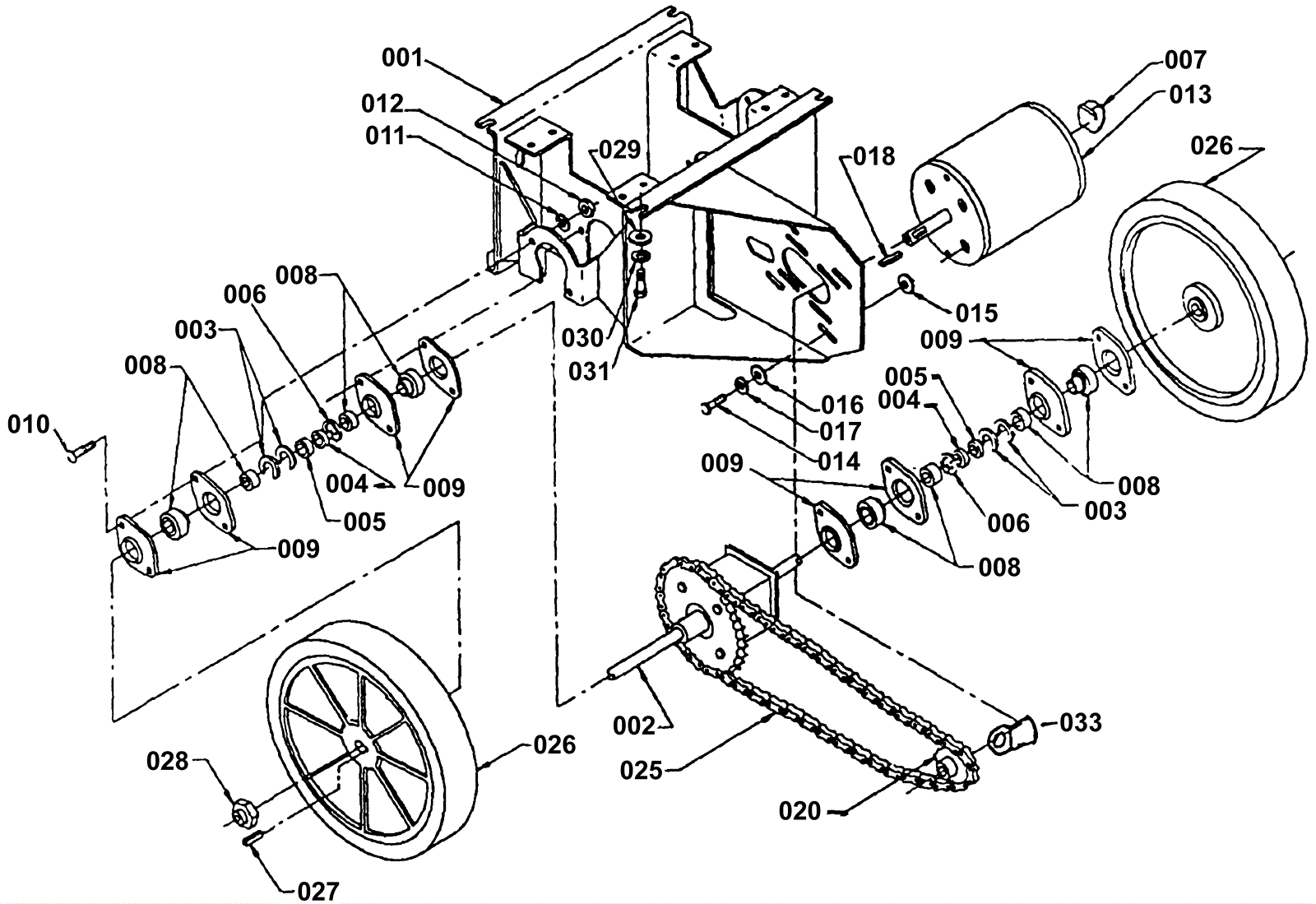

(not available) Drive carriage assembly complete |
|
001 |
175-1330
|
Carriage weldment (OBSOLETE) |
1 |
|
|
002 |
N/A
|
Not available |
1 |
Differential with axle |
|
003 |
175-0406
|
Washer.77 flate stainless steel |
4 |
|
|
004 |
N/A
|
Not available |
2 |
(not available) 0.75 inch ID clamp collar |
|
005 |
N/A
|
Not available |
2 |
(not available) Spacer |
|
006 |
N/A
|
Not available |
2 |
Retaining ring |
|
007 |
175-0411
|
Cable clip |
1 |
|
|
008 |
175-2015
|
Ball bearing (OBSOLETE) |
4 |
|
|
009 |
175-2016
|
Pop rivet 3/16 x 1/4 inch |
4 |
|
|
010 |
175-0410
|
Carriage bolt (OBSOLETE) |
8 |
|
|
011 |
175-0382
|
Washer lock spring (OBSOLETE) |
8 |
|
|
013 |
175-3226
|
Insulated stand off |
1 |
|
|
014 |
175-1331
|
Screw 1/4-20 x 8/9 hex head (OBSOLETE) |
4 |
|
|
015 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
016 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
017 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
018 |
175-0415
|
Woodruff key (OBSOLETE) |
- |
|
|
019 |
175-0373
|
Key shaft (OBSOLETE) |
1 |
|
|
020 |
175-1332
|
10 toothed sprocket (OBSOLETE) |
1 |
|
|
021 |
175-0425
|
Spacer (OBSOLETE) |
2 |
|
|
022 |
999-0601
|
Screw 5/16-18 x 5/8 pan head phillips zinc plated |
1 |
|
|
024 |
175-0382
|
Washer lock spring (OBSOLETE) |
1 |
|
|
025a |
175-0417
|
33 inch chain (OBSOLETE) |
1 |
|
|
025b |
N/A
|
Not available |
1 |
(not available) Master link |
|
026a |
175-0418
|
11 inch wheel |
2 |
|
|
026b |
175-0427
|
Foam filled tire (OBSOLETE) |
|
|
|
027 |
175-0419
|
Square key (OBSOLETE) |
2 |
|
|
028 |
999-1001
|
Nut 3/4-10 nylon insert lock zinc plated |
2 |
|
|
029 |
175-0353
|
Washer plain (OBSOLETE) |
4 |
|
|
031 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
4 |
|
|
032 |
175-0422
|
Bolt hex head set for wheels (OBSOLETE) |
4 |
|
|
N/S |
175-0423
|
Bolt hex head set for motor bracket (OBSOLETE) |
2 |
|
|
