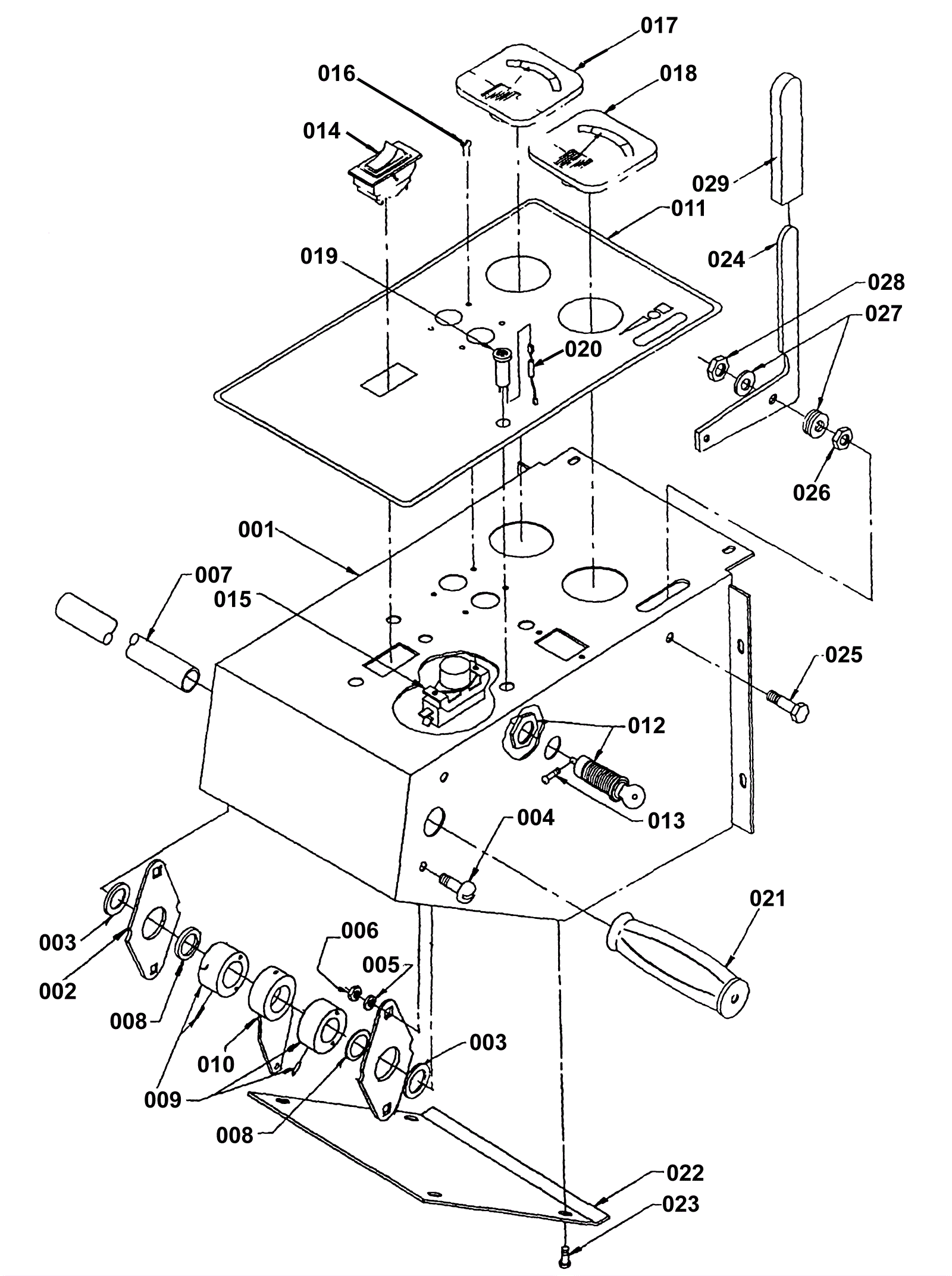

Control Console

#PartDescription ReqNotesAvailability
001 175-0378 Console frame (OBSOLETE) 1
002 175-0379 Bearing block (OBSOLETE) 2
003 175-0380 Bushing (OBSOLETE) 2
004 999-1146 Screw 5/16-18 x 3/4 truss head phillips stainless steel 4
005 175-0382 Washer lock spring (OBSOLETE) 4
007 175-0384 Handlebar 1
008 175-0385 Nylon washer 2
009 175-0386 Shaft collar (OBSOLETE) 1
010 175-0387 Handlebar actuator clamp arm (OBSOLETE) 1
011 N/A Not available 1 (not available) Console decal
012 175-0389 Keylock switch 1
013 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated 1
014 175-1326 15amp rocker switch 1
015 175-1327 Snap act. push button switch (OBSOLETE) 2
016 999-1145 Screw 6-32 x 1/4 truss head phillips zinc plated 4
017 175-0392 19amp ammeter (OBSOLETE) 1
018 175-0402 Volt meter kit (OBSOLETE) 1
019 175-0393 Pilot light (green) 1
020 175-0394 Resistor assembly 1
021a 164-0304 Handle grip 2
021b 991-8571 Handle grip 2 (NON-OEM)
022 175-1329 Console lid (OBSOLETE) 1
023 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 4
024 175-0396 Water valve handle (OBSOLETE) 1
025 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1
026 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
027 175-0399 Washer 8mm plain (OBSOLETE) 3
028 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
029 175-0401 Handle closure 1
N/S N/A Not available
N/S N/A Not available 1
