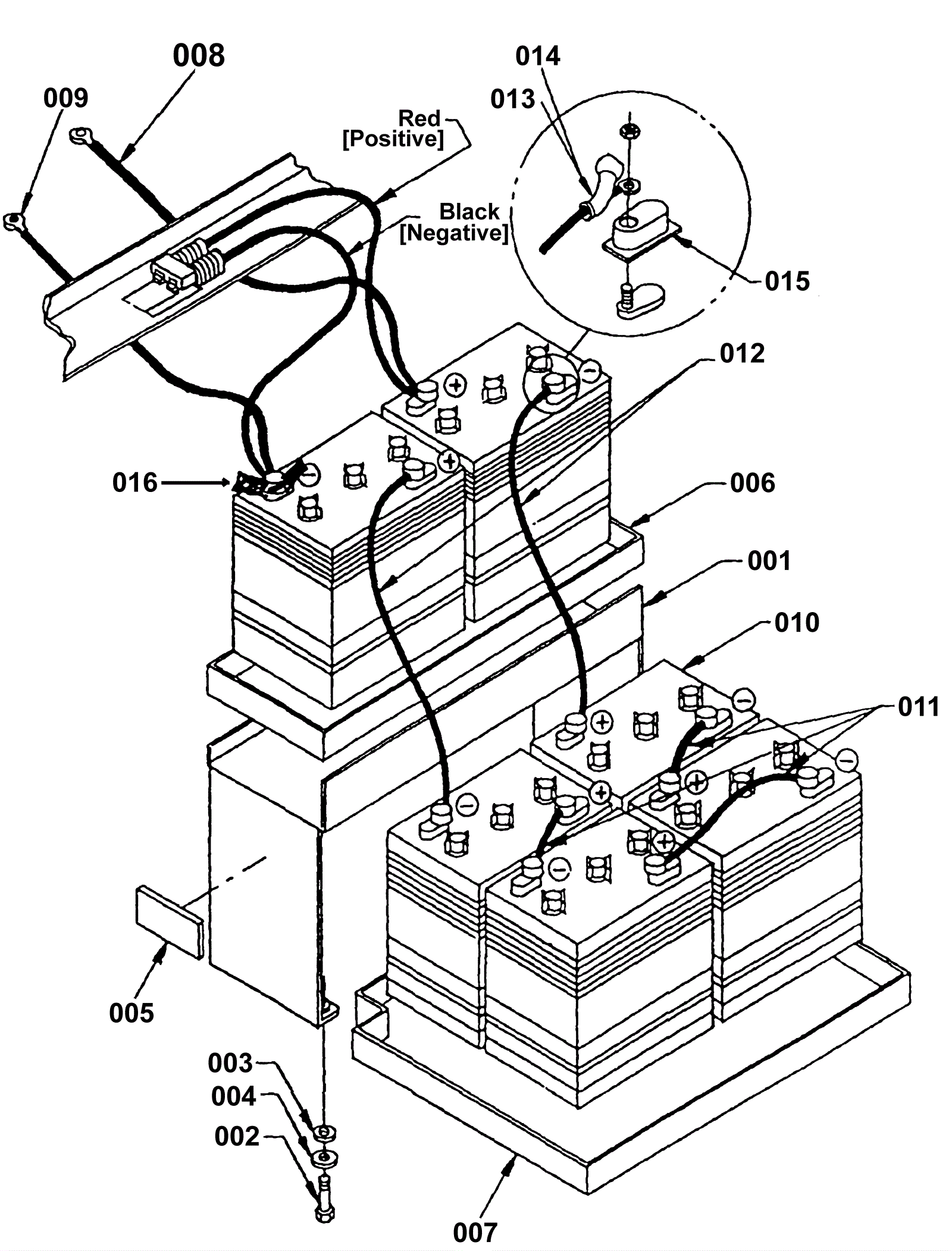

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
175-0365
|
Cable kit for battery set up (OBSOLETE) |
|
|
|
001 |
175-0351
|
Battery tray (OBSOLETE) |
1 |
|
|
002 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
4 |
|
|
003 |
175-0353
|
Washer plain (OBSOLETE) |
4 |
|
|
005 |
175-0355
|
Battery tray cushion (OBSOLETE) |
2 |
|
|
006 |
175-0356
|
Battery tray upper 26 inch (OBSOLETE) |
1 |
|
|
007 |
175-0357
|
Battery tray lower 26 inch (OBSOLETE) |
1 |
|
|
008 |
175-0358
|
Battery cable red (OBSOLETE) |
1 |
|
|
009 |
175-0359
|
Battery cable black (OBSOLETE) |
1 |
|
|
010 |
175-0360
|
Left side skirt assembly |
6 |
|
|
011 |
175-9009
|
Cable |
3 |
|
|
012 |
175-9022
|
Battery cable |
2 |
|
|
013 |
N/A
|
Not available |
6 |
(not available) Battery cable terminal boot, black |
|
014 |
N/A
|
Not available |
6 |
(not available) Battery cable terminal boot, red |
|
015 |
N/A
|
Not available |
12 |
(not available) Terminal cover |
|
016 |
175-0364
|
Nut wing (OBSOLETE) |
13 |
|
|
