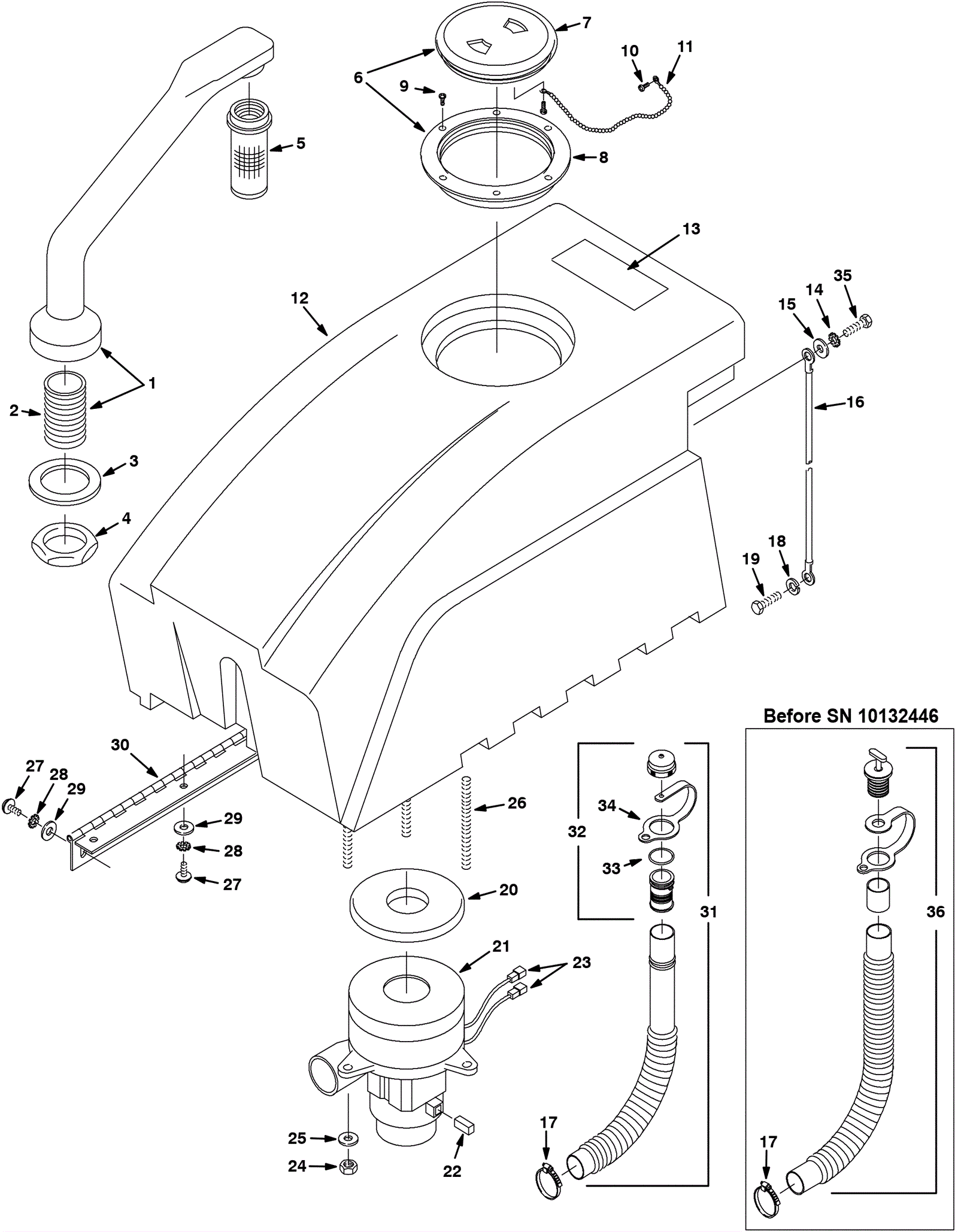

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 175-2998 Standpipe with nipple assembly 1 (includes 2)
2 175-2639 1 1/2 inch nipple fitting 1
3 175-2640 Gasket 1
4 175-2907 Nut 1 1/2 flanged hex 1
5a 675-9887 Shut-off float 1 (OEM)
5b 991-5136 Shut-off float 1 (NON-OEM)
6 164-0202 Tank lid assembly 1 (includes 7-8)
7a 164-0044 Tank lid (clear) 1 (OEM)
7b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
8 164-0205 Tank lid ring (clear) 1
9 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal 6
10 999-0434 Screw 6 x 3/8 pan head phillips 2
11 164-0204 Recovery tank lid chain 1
12 175-0022 Recovery tank assembly 1 (includes 13)
13 175-2868 Warning decal 1
14 999-1024 Washer 1/4 external tooth lock stainless steel 1
15 999-0016 Washer 1/4 flat plain finish 1
16 175-2651 Support cable 1
17 175-2057 Hose clamp 1
18 999-0553 Washer 5/16 medium split lock stainless steel 1
19 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 1
20 675-9893 Vacuum motor gasket 1
21a 275-5736 24V 3 stage vacuum motor 1 (OEM) (includes 22)
21b 991-1210-P 24V 3 stage vacuum motor tangential with Packard plug 1 (NON-OEM)
22 175-2658 Carbon brush (pkg of 2) 2
23 175-0923 Male terminal 2
24 999-0497 Nut M6-1 nylon insert lock stainless steel 3
25 999-0016 Washer 1/4 flat plain finish 3
26 175-3641 Stud 3
27 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 11
28 999-1024 Washer 1/4 external tooth lock stainless steel 11
29 999-0016 Washer 1/4 flat plain finish 11
30 175-3001 Recovery tank hinge 1
31a 175-1153 Drain hose assembly 1 (includes 32-34) (OEM)
31b 991-5126 Drain hose assembly (NON-OEM)
32a 175-4214 Drain plug assembly 1 (includes 33-34) (OEM)
32b 991-3028 Drain plug assembly 1 (NON-OEM)
33 175-5804 O-ring 1
34 175-4214 Drain plug assembly 1
35 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 1
36 N/A Not available 1 (drain hose assembly) (replaced with 31)
