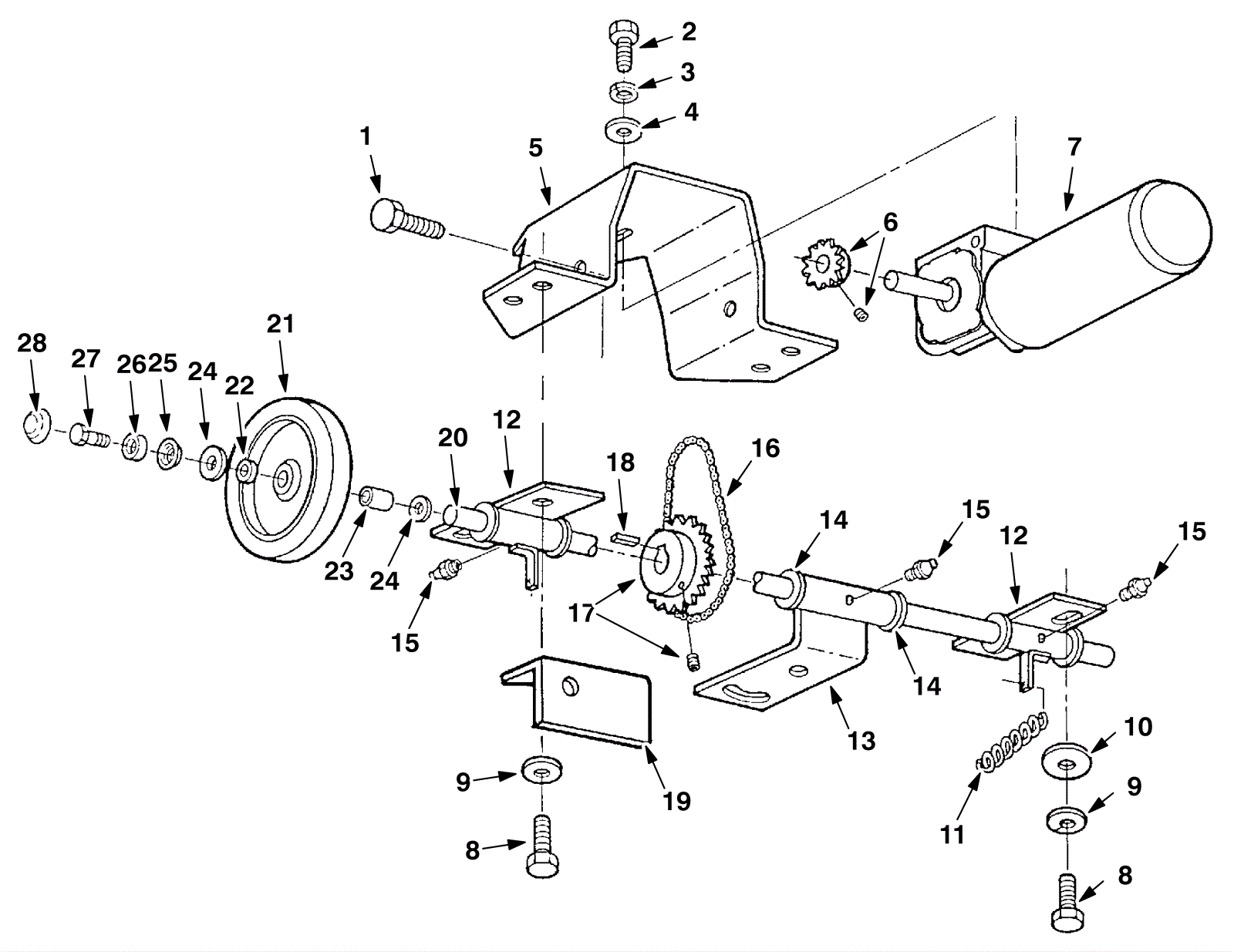

SPEEDSCRUB 2400 Wheel Axle Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 999-0687 Bolt 1/2-13 x 1 1/4 hex head stainless steel $2.68 2 ships same day
2 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.90 4 ships same day
3 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
4 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
5 275-5620 Motor mounting plate $73.30 1 usually ships 1-5 days
6 175-1077 Sprocket with set screw (OBSOLETE) $51.20 1 usually ships 1-5 days
7a 175-1078 24V Drive motor $1,124.00 1 usually ships 1-5 days
7b 175-1079 Brush card (OBSOLETE) $42.40 1 usually ships 1-5 days
8 999-0561 Bolt 1/2-13 x 1 hex head stainless steel $2.98 4 ships same day
9 999-0126 Washer 1/2 split lock $1.28 4 ships same day
10 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
11 175-2970 Extension spring $6.00 1 usually ships 6-16 days
12 175-1080 Axle bracket with bearings $168.00 2 usually ships 1-5 days
13 175-1056 Squeegee pivot mount with drive $155.00 1 usually ships 1-5 days
14 175-1081 Axle bearing (OBSOLETE) $5.60 2 usually ships 1-5 days
15 175-1082 Grease fitting $4.50 3 usually ships 1-5 days
16a 175-1083 Roller chain (OBSOLETE) $27.40 1.34 ft usually ships 1-5 days
16b 175-1084 Connecting link (OBSOLETE) $4.92 1 usually ships 1-5 days
16c 175-1085 Off set link (OBSOLETE) $7.40 1 usually ships 1-5 days
17 175-1086 Drive wheel sprocket $59.70 1 usually ships 1-5 days
18 175-1087 Square keyway $34.76 1 ships same day
19 175-1088 Chain shield (OBSOLETE) $25.40 1 usually ships 1-5 days
20 175-1089 Drive shaft axle $140.00 1 usually ships 1-5 days
21a 175-1090 Righthand wheel assembly $350.20 1 (includes 22-23) usually ships 6-16 days
21b 175-1091 Lefthand wheel assembly $350.20 1 (includes 22-23) usually ships 6-16 days
22 175-1092 Bearing seal $15.50 4 usually ships 6-16 days
23 175-1093 Bearing $91.40 2 usually ships 6-16 days
24 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
25 175-1095 Washer $3.50 2 usually ships 6-16 days
26 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
27 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel $0.90 2 ships same day
28 175-1096 Wheel cap $3.00 2 usually ships 6-16 days
