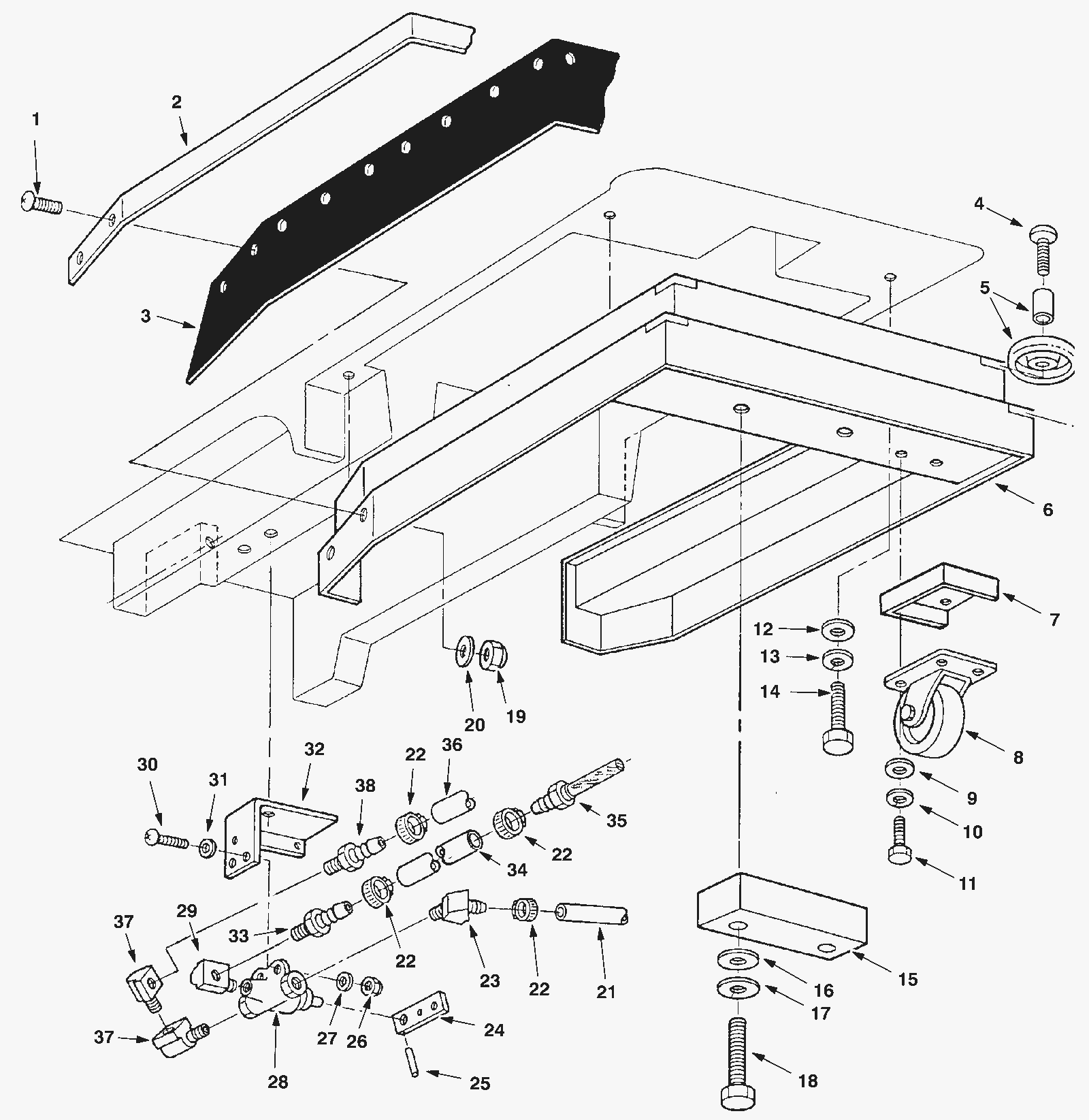

Skirt Assembly 2

#PartDescription ReqNotesAvailability
1 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 22
2 N/A Not available 2 Splash guard strap
3 N/A Not available 2 Splash guard
4 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel 4
5 175-0117 Guide wheel with bushing 4
6 N/A Not available 1
7 N/A Not available 2 (Caster shield)
8 175-1780 3 inch swivel caster wheel 2
9 999-0016 Washer 1/4 flat plain finish 8
10 999-0632 Washer 1/4 split lock stainless steel 8
11 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 8
12 999-0024 Washer 5/16 flat stainless steel 4
13 999-0553 Washer 5/16 medium split lock stainless steel 4
14 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
15 175-1041 Weight 1
16 999-0024 Washer 5/16 flat stainless steel 2
17 999-0553 Washer 5/16 medium split lock stainless steel 2
18 175-0955 Screw 5/16-18 x 2 1/2 2
19 999-0442 Nut 10-24 nylon insert lock stainless steel 22
20 999-0393 Washer 3/16 flat aluminum 22
21 175-6648 Hose 3/8 x 18 inches 2.1 ft
22 175-6081 Hose clamp 4
23 175-3061 Hosebarb 1
24 175-2031 Valve arm 1
25 175-2030 Roll pin 1
26 999-0442 Nut 10-24 nylon insert lock stainless steel 2
27 999-0393 Washer 3/16 flat aluminum 2
28 175-2029 3-way ball valve 1
29 175-1051 Street elbow 1
30 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel 2
31 999-0393 Washer 3/16 flat aluminum 2
32 175-1047 Solution valve bracket 1
33 175-6030 Straight hosebarb 1
34 175-1043 3 inch hose .34 ft
35 175-1044 Filter screen 1
36 175-6648 Hose 3/8 x 18 inches 2.1 ft
37 175-2614 90 degree elbow fitting 2
38 175-2613 Straight brass fitting 1
