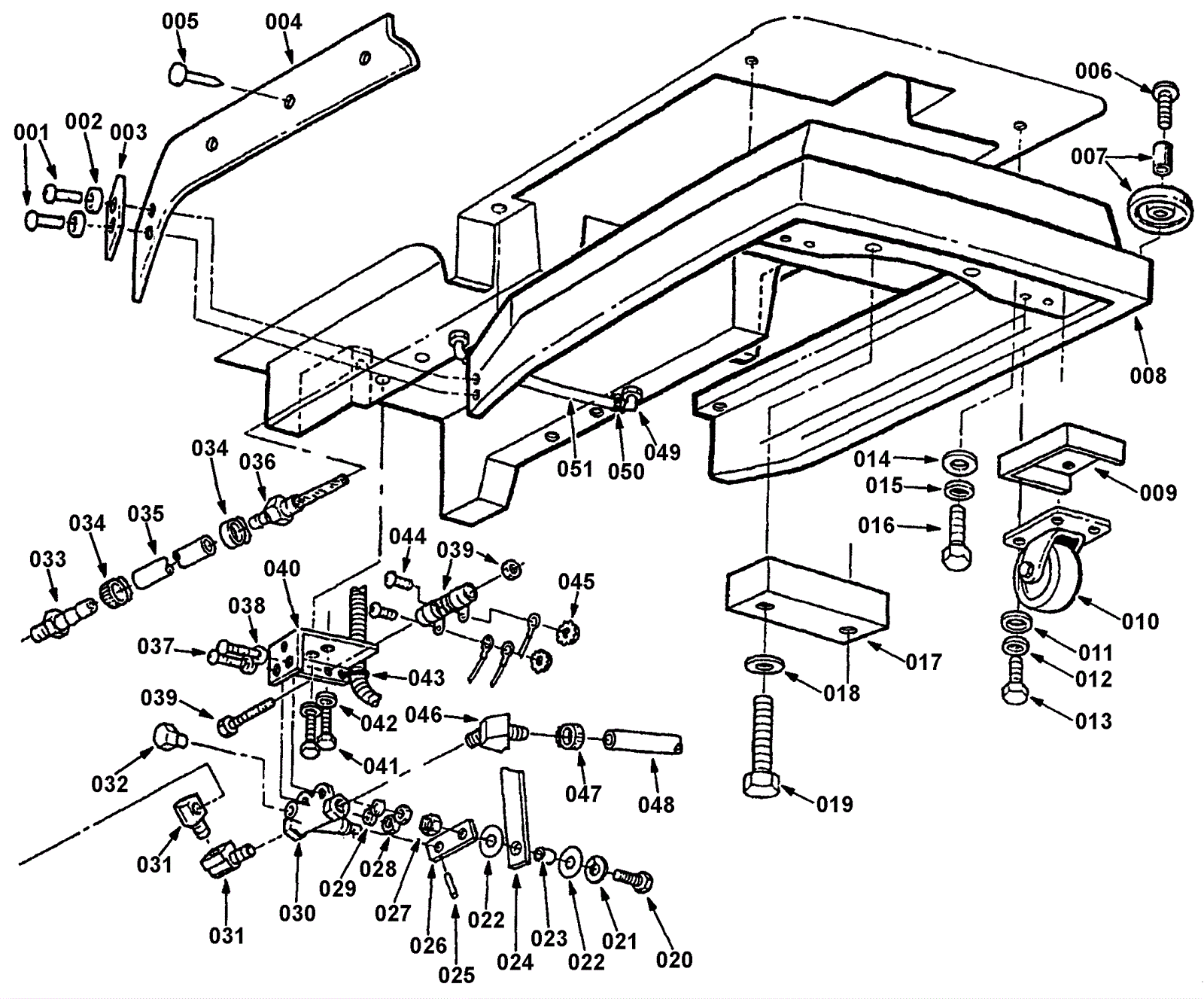

SPEEDSCRUB 1701 Skirt Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 4 ships same day
002 999-1026 Washer #10 internal lock stainless steel $0.99 4 ships same day
003 N/A Not available Call for price 2 (Bumper clamp) usually ships 3-26 days
004a N/A Not available Call for price 1 (1701 bumper kit) usually ships 3-26 days
004b 275-5103 Bumper kit (2001) (OBSOLETE) $78.21 1 usually ships 10-16 days
005 991-5122 1/4 nylon tree push-in rivet $1.55 9 ships same day
006 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel $1.65 2 ships same day
007 175-0117 Guide wheel with bushing $9.90 2 ships same day
008a 175-1037 Skirt-1701 (OBSOLETE) $130.46 1 (model 1701) usually ships 1-5 days
008b N/A Not available Call for price 1 (Skirt - model 2001) usually ships 3-26 days
009 N/A Not available Call for price 2 (Caster shield) usually ships 3-26 days
010a 175-1780 3 inch swivel caster wheel $58.08 2 (wheel with caster) ships same day
010b 175-1039 3 inch wheel (OBSOLETE) $19.03 2 (wheel only) usually ships 10-16 days
011 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
012 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
013 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 8 ships same day
014 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
015 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
016 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated $0.99 4 ships same day
017a N/A Not available Call for price 1 (weight - model 1701) usually ships 3-26 days
017b 175-1041 Weight $171.49 1 (model 2001) usually ships 1-5 days
018 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
019 175-0955 Screw 5/16-18 x 2 1/2 $5.02 2 usually ships 1-5 days
020 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish $1.76 1 ships same day
021 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
022 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
023 175-2726 Sleeved bushing $4.75 1 usually ships 10-16 days
024 175-3060 Solution valve lever $46.31 1 usually ships 10-16 days
025 175-2030 Roll pin $4.09 1 usually ships 10-16 days
026 175-2031 Valve arm $53.24 1 usually ships 10-16 days
027 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
028 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
029 999-0393 Washer 3/16 flat aluminum $0.99 2 ships same day
030 175-2029 3-way ball valve $107.25 1 usually ships 10-16 days
031 175-2614 90 degree elbow fitting $5.50 2 ships same day
032 175-1042 1/4 Inch hex brass plug fitting $4.88 1 usually ships 10-16 days
033 175-6030 Straight hosebarb $6.05 1 usually ships 10-16 days
034 175-6081 Hose clamp $4.84 2 ships same day
035 175-1043 3 inch hose $42.90 1 usually ships 10-16 days
036 175-1044 Filter screen $36.85 1 usually ships 10-16 days
037 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel $0.99 2 ships same day
038 999-0393 Washer 3/16 flat aluminum $0.99 1 ships same day
039a 175-1045 Resistor 1.5A 50W (OBSOLETE) $295.90 1 usually ships 1-5 days
039b N/A Not available Call for price 1 (resistor 1.8A 50W) usually ships 3-26 days
040 175-1047 Solution valve bracket $35.75 1 usually ships 10-16 days
041 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
042 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
043 175-0037 Wire tie $3.96 1 usually ships 10-16 days
044 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
045 999-0356 Nut 10-24 lock stainless steel $0.99 2 ships same day
046 175-3061 Hosebarb $20.90 1 usually ships 10-16 days
047 175-6081 Hose clamp $4.84 1 ships same day
048 175-6648 Hose 3/8 x 18 inches $21.34 1 ships same day
049 175-2997 Elbow $13.86 1 usually ships 10-16 days
050 175-6081 Hose clamp $4.84 2 ships same day
051 175-6648 Hose 3/8 x 18 inches $21.34 1 ships same day
