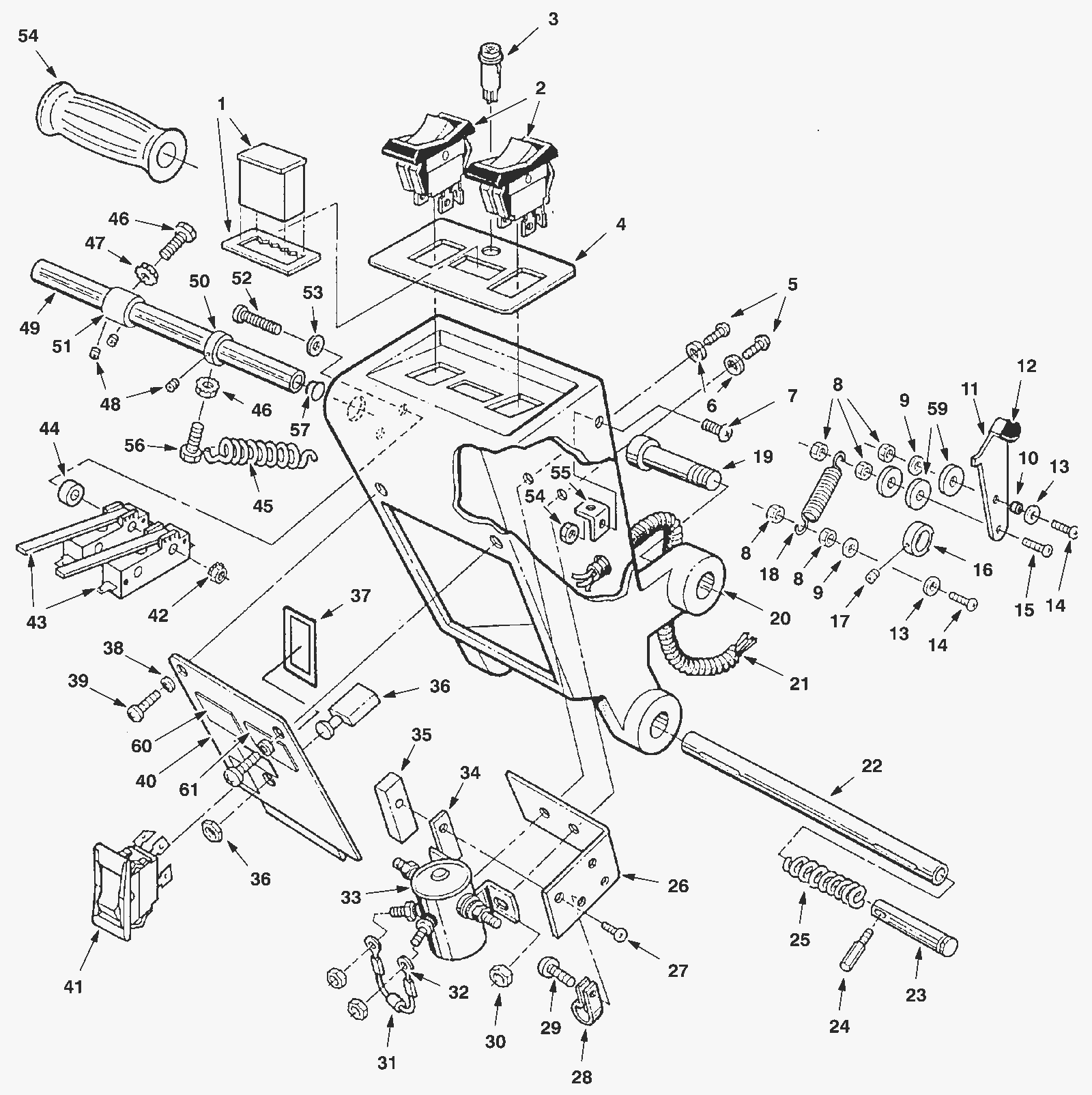

Control Console Assembly 2

#PartDescription ReqNotesAvailability
1 175-3099 24V battery voltage meter 1
2 175-1008 Rocker switch 2
3 175-2849 Indicator light 1
4 175-0997 Dash decal (OBSOLETE) 1
5 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 2
6 999-1026 Washer #10 internal lock stainless steel 2
7 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
9 999-0016 Washer 1/4 flat plain finish 2
10 175-0998 Bushing 1/4 x 3/8 x .15 1
11 273-8959 Dome accessory decal 1
12 175-1000 Two speed latch grip (OBSOLETE) 1
13 999-0016 Washer 1/4 flat plain finish 2
14 999-0375 Screw 1/4-20 x 1 round head slotted zinc plated 2
15 999-0366 Screw 1/4-20 x 1 1/2 round head slotted zinc plated 1
16 175-1001 Speed latch collar (OBSOLETE) 1
17 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 1
18 175-1002 Spring (OBSOLETE) 1
19 175-0981 Bolt 5/8 x 2 shoulder 2
20 175-1003 Control housing (OBSOLETE) 1
21 175-1004 Wire harness assembly (OBSOLETE) 1
22 175-3108 Handle adjustment tube 1
23 175-3109 Handle locking pin 2
24 175-2710 Handle adjustment pin 2
25 175-2712 Spring 1
26 175-0987 Electrical mount bracket 1
27 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
28 175-0988 P clamp 1
29 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
30 999-0356 Nut 10-24 lock stainless steel 2
31 N/A Not available 2 (ring terminal)
32 175-2757 Diode with ring terminals (small) 1
33 175-2023 24V solenoid contactor 1
34 175-0287 Acrylic foam tape 1 inch x 1 foot .09 ft
35 175-2756 24V flasher 1
36 175-2762 35amp circuit breaker 1
37 N/A Not available 1 (retainer switch plate)
38 999-1026 Washer #10 internal lock stainless steel 2
39 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 2
40 N/A Not available 1 (housing cover)
41 175-1008 Rocker switch 1
42 175-1009 Nut lock 2
43 675-9886 Snap switch 2
44 175-1010 Spacer (OBSOLETE) 2
45 175-2705 Roll throttle spring (OBSOLETE) 1
46 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 1
47 999-0181 Nut 1/4-20 hex jam plain finish 2
48 999-0312 Screw 1/4-20 x 3/8 socket head shoulder 3
49 175-1012 Tube handle 1
50 175-2702 Handle collar 1
51 N/A Not available 1 (switch collar)
52 275-5619 Screw 6-32 x 2-1/4 (OBSOLETE) 2
53 999-1158 Washer #6 flat stainless steel 2
54 675-9894 Handle grip 2
55 999-0356 Nut 10-24 lock stainless steel 1
56 175-2706 Spring bracket 1
57 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
58 N/A Not available 1 (plug)
59 175-1097 Washer flat stainless steel 3
60 275-9008 Warning decal 1
61 275-1360 Warning decal 1
