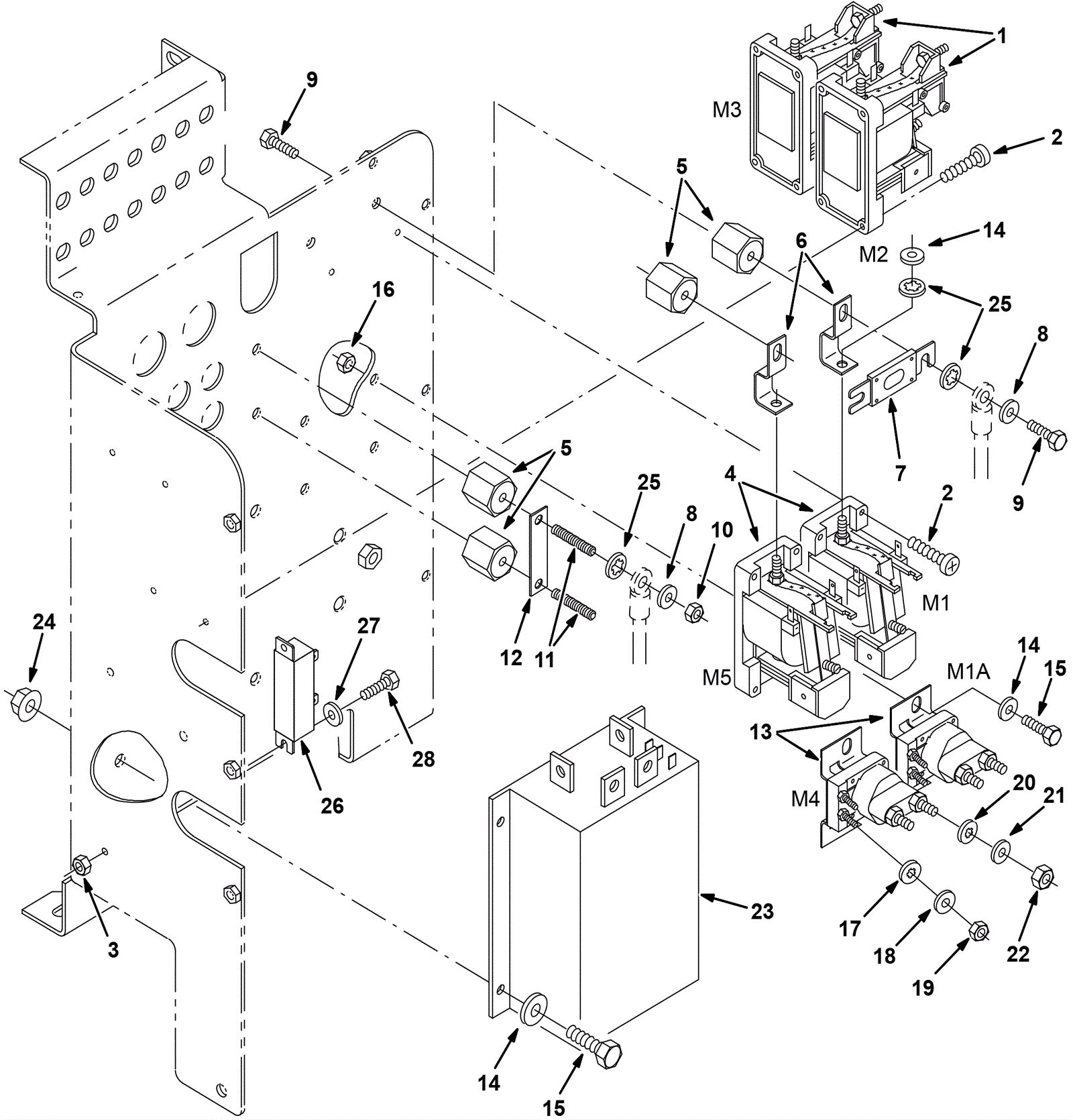

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-0845
|
RELAY, 36VDC, 100A, SPDT NO [CABELFORM] (Tennant Industrial |
2 |
|
|
2 |
999-0789
|
Screw M4-.7 x 20mm hex head |
8 |
|
|
3 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
|
|
4 |
275-4173
|
CONTACTOR, 36VDC [SPNO] (Tennant Industrial) |
2 |
|
|
5 |
175-3226
|
Insulated stand off |
4 |
|
|
6 |
175-0846
|
BUSBAR, FUSE, .6 0.6W 0.8H 2.0L (Tennant Industrial) |
2 |
|
|
7 |
175-0847
|
FUSE, 150A, 0.88 2.4L [SLO-BLO] (Tennant Industrial) |
1 |
|
|
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
9 |
999-0361
|
Bolt 1/4-20 x 3/8 hex head grade 5 zinc |
6 |
|
|
10 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
11 |
175-3227
|
Threaded rod |
2 |
|
|
12 |
175-0848
|
BUSBAR, .06 0.6W 2.5L 2/.28H (Tennant Industrial) |
1 |
|
|
13 |
175-2373
|
36V contactor |
2 |
|
|
14 |
999-0016
|
Washer 1/4 flat plain finish |
9 |
|
|
15 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
6 |
|
|
16 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
17 |
999-0089
|
Washer #10 internal star lock zinc plated |
4 |
|
|
18 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
19 |
999-0460
|
Nut 10-32 hex |
4 |
|
|
20 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
4 |
|
|
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
22 |
175-0849
|
Nut 5/16-24 hex |
4 |
|
|
23 |
175-0850
|
CONTROLLER, MOTOR, 36VDC 275A [CURT1204] (Tennant Industria |
1 |
|
|
24 |
999-6694
|
Nut M6-1 hex serrated flange stainless steel |
4 |
|
|
25 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
9 |
|
|
26 |
175-0851
|
RESISTOR, 040.000HM, 0040WATT (Tennant Industrial) |
1 |
|
|
27 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
28 |
175-0852
|
Bolt 5mm-.8 x 12 hex head |
2 |
|
|
