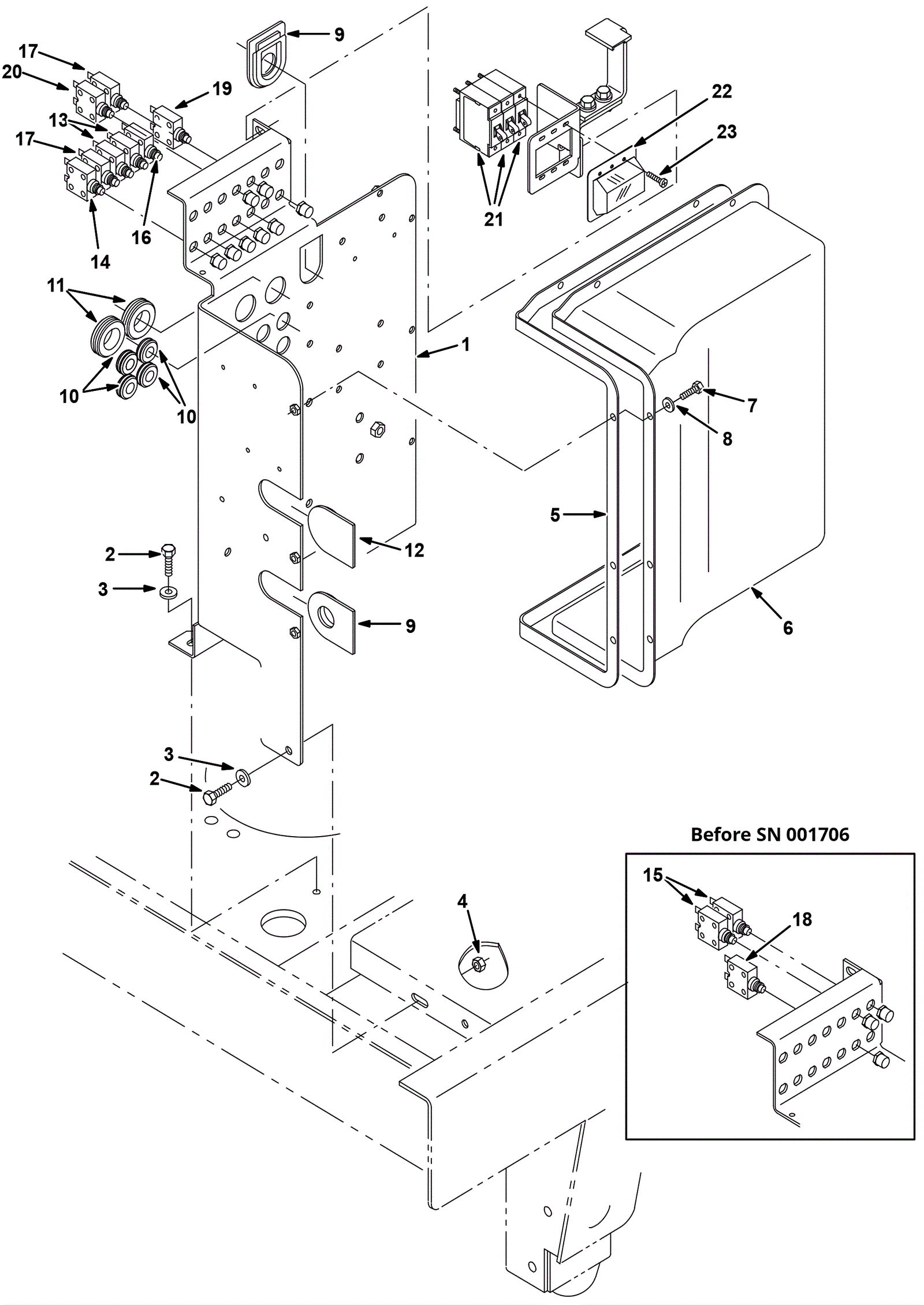

Control Box Circuit Breaker Assembly

#PartDescription ReqNotesAvailability
1a N/A Not available 1 (controlbox plate) (before SN 005000)
1b 275-9357 Control box plate (iron gray) (Tennant Industrial) 1 (after SN 004999)
2 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 3
3 999-0024 Washer 5/16 flat stainless steel 3
4 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
5 175-0835 GASKET, NEO, .12, 16.93W 20.00L, ADH (Tennant Industrial) 1
6 175-0836 COVER, CONTROLBOX (Tennant Industrial) 1
7 175-0837 Bolt M5-.8 x 16mm hex head 8
8 999-0998 Washer #10 flat stainless steel 8
9 175-0838 GROMMET, RBR, 1.00ID, F/ SL, .19 MATL (Tennant Industrial) 2
10 175-0839 Rubber grommet 1/2 ID 4
11 175-0840 Rubber grommet 2
12 175-0841 PLUG, HOLE, BLK PYU (Tennant Industrial) 1
13a 175-2337 20amp circuit breaker 2 (before SN 001706)
13b 175-2151 30amp circuit breaker 2 (after SN 001705)
14 175-0842 15amp circuit breaker 2
15 175-0844 CIRCUITBREAKER, 50.0A (Tennant Industrial) 2 (before SN 001706)
16 991-1631 25amp circuit breaker 1
17 275-2529 2.5amp circuitbreaker 2
18 175-0844 CIRCUITBREAKER, 50.0A (Tennant Industrial) 1 (before SN 001706) (center brush option)
19 175-0843 40amp circuitbreaker 1 (power steering option)
20 175-0842 15amp circuit breaker 1 (power wand / side sweep option)
21a 275-8531 CIRCUITBREAKER, 40.0A (Tennant Industrial) 3 (after SN 001705) (Max Pro 1200 disk) (Max Pro 1000 disk with standard motor)
21b 275-8532 CIRCUITBREAKER, 45.0A (Tennant Industrial) 2 (after SN 001705) (Max Pro 1000 disk with heavy duty motor) (Max Pro 1000 cylindrical) (Max Pro 1200 cylindrical)
22 275-8534 BOOT, CIRCUITBREAKER (Tennant Industrial) 1 (after SN 001705)
23 999-0463 Screw 6-32 x 3/8 pan head slotted zinc plated 6 (after SN 001705)
