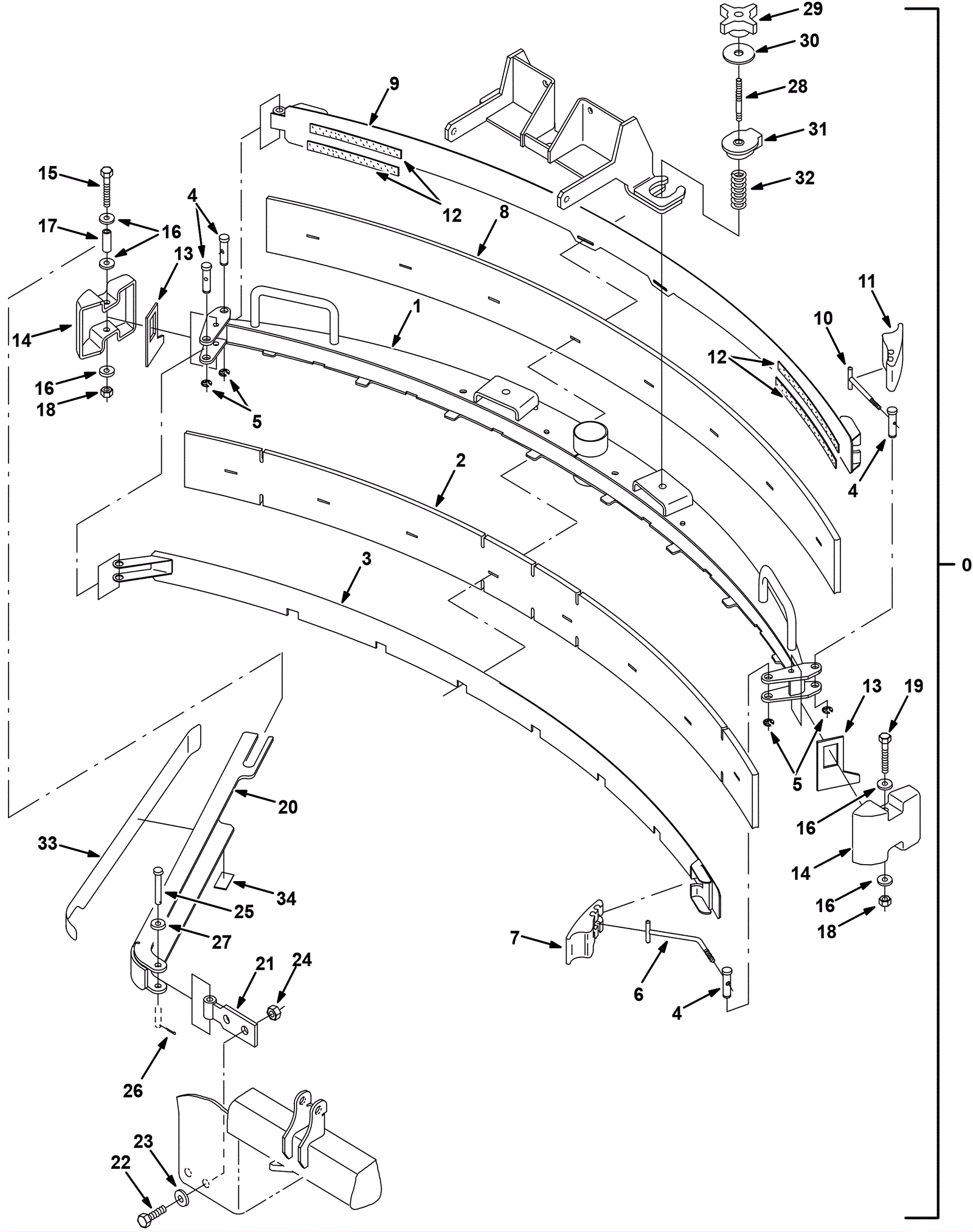

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
175-0809
|
SQUEEGEE ASSY KIT, REAR, CI [MP1000] (Tennant Industrial) |
1 |
(includes 1-2a, 3-19, 20a, 21a, 22-34) |
|
0b |
275-9344
|
Rear squeegee kit assembly (Tennant Industrial) |
1 |
(includes 1-2a, 3-19, 20b, 21b, 22-34) |
|
1 |
275-2612
|
Power wand bracket (gray) (Tennant Industrial) |
1 |
|
|
2a |
175-0811
|
BLADE, SQGE, FRONT, 49.00L linatex (Tennant Industrial) |
1 |
|
|
2b |
175-0833
|
BLADE, SQGE, FRONT, TILE, 49.00L linatex (Tennant Industria |
1 |
|
|
3 |
175-0812
|
CLAMP WLDT, FRONT (Tennant Industrial) |
1 |
|
|
4 |
175-0813
|
PIN, GRVD, 0.43D 01.8L [303SS] (Tennant Industrial) |
4 |
|
|
5 |
175-0814
|
Retaining ring (Tennant Industrial) |
4 |
|
|
6 |
175-0815
|
PIN WLDT, FRONT (Tennant Industrial) |
1 |
|
|
7 |
375-4391
|
Front cam (yellow) (Tennant Industrial) |
1 |
|
|
8 |
175-0816
|
BLADE, SQGE, REAR, 51.38L linatex (Tennant Industrial) |
1 |
|
|
9 |
175-0817
|
CLAMP WLDT, REAR (Tennant Industrial) |
1 |
|
|
10 |
175-0818
|
BAR WLDT, RETAINER, SQGE, REAR (Tennant Industrial) |
1 |
|
|
11 |
175-0819
|
CAM, REAR (Tennant Industrial) |
1 |
|
|
12 |
175-0820
|
STRIP, NON SLIP, 0.50W 06.0L (Tennant Industrial) |
4 |
|
|
13 |
175-0821
|
GASKET, SQGE (Tennant Industrial) |
2 |
|
|
14 |
175-3484
|
BUMPER, SQGE (Tennant Industrial) |
2 |
|
|
15 |
175-0822
|
SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) |
1 |
|
|
16 |
999-0355
|
175-2249 |
5 |
|
|
17 |
175-2207
|
Sleeve |
1 |
|
|
18 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
19 |
999-0909
|
Bolt M8-1.25 x 70mm hex head stainless steel |
1 |
|
|
20a |
175-0823
|
CHANNEL WLDT, GUARD, RH (Tennant Industrial) |
1 |
(before SN 005000) |
|
20b |
275-9345
|
Channel weldment (iron gray) (Tennant Industrial) |
1 |
(after SN 04999) |
|
21a |
175-0824
|
PLATE WLDT, PIVOT, GUARD (Tennant Industrial) |
1 |
(before SN 005000) |
|
21b |
275-9346
|
Guard pivot plate weldment (iron gray) (Tennant Industrial) |
1 |
(after SN 04999) |
|
22 |
999-6696
|
Bolt M12-1.75 x 30mm stainless steel hex cap screw |
2 |
|
|
23 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
24 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
|
25 |
275-7974
|
Clevis pin 1/4 x 2 (Tennant Industrial) |
1 |
|
|
26 |
175-2361
|
Cotter pin |
1 |
|
|
27 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
28 |
175-0828
|
Stud 5/16-18 (Tennant Industrial) |
2 |
|
|
29 |
175-2208
|
Plastic star knob |
2 |
|
|
30 |
175-3470
|
Washer .53b 1.88d .12 steel plated |
2 |
|
|
31 |
175-0829
|
RING, MTG, SQGE, .50L (Tennant Industrial) |
2 |
|
|
32 |
175-0830
|
SPRING, CMPR, 0.90OD .04WIR 02.0L (Tennant Industrial) |
2 |
|
|
33 |
175-0831
|
STRIP, BMPR, PYE, .06 1.75W 22.0L (Tennant Industrial) |
1 |
|
|
34 |
175-0832
|
STRIP, BMPR, PYE, .06 0.75W 01.5L (Tennant Industrial) |
1 |
|
|
