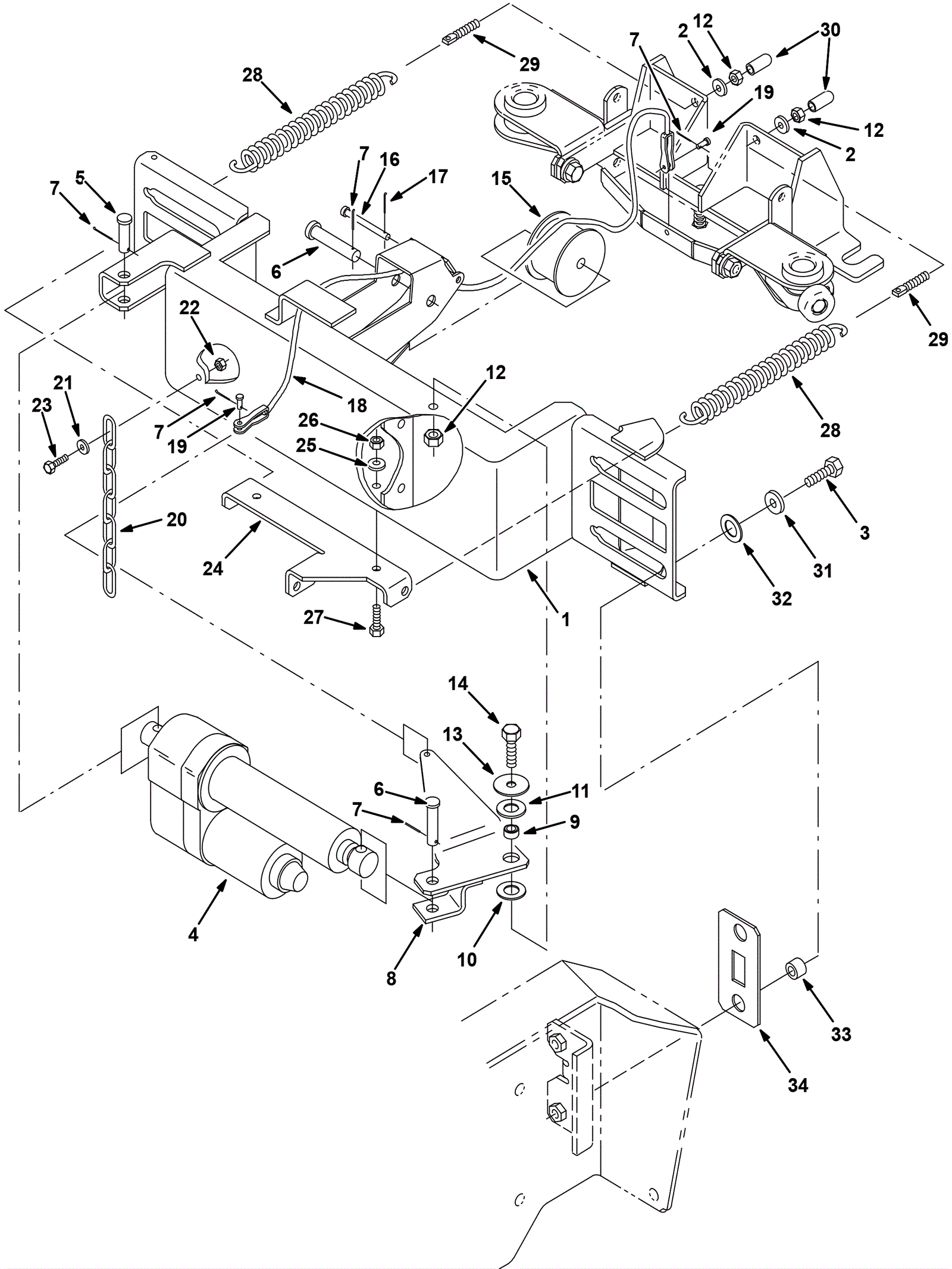

Rear Squeegee Lift Assembly

#PartDescription ReqNotesAvailability
1a 175-0793 SUPPORT WLDT (Tennant Industrial) 1 (before SN 005000)
1b 275-9341 Support weldment (iron gray) (Tennant Industrial) 1 (after SN 004999)
2 999-0355 175-2249 2
3 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread 4
4 175-0794 ACTUATOR, 36VDC, 02.1STRK, 500LB (Tennant Industrial) 1
5 175-2382 Clevis pin 1
6 175-0716 Clevis pin 2
7 175-6176 Cotter pin 5
8 175-0795 ARM WLDT (Tennant Industrial) 1
9 175-0796 Sleeve 1
10 175-3347 Washer .61 thrust 1
11 175-0784 Thrust bearing 1
12 999-1120 Nut M10-1.5 nylon insert lock stainless steel 3
13 175-0797 Washer flat 1
14 175-0792 Bolt M10-1.5 x 60mm hex head stainless steel 1
15 175-0798 DRUM, CABLE, LIFT (Tennant Industrial) 1
16 175-0799 PIN, CLEVIS, 0.25D X 2.44L (Tennant Industrial) 1
17 175-2361 Cotter pin 1
18 175-0800 CABLE, SS .12D 013.3L .2CLEVIS /.2CLEVIS (Tennant Industria 1
19 175-0801 Clevis pin 2
20 175-2094 Chain 1
21 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
22 999-0497 Nut M6-1 nylon insert lock stainless steel 1
23 999-1312 Screw M6-1 x 20mm hex head stainless steel 1
24a 175-0802 BRACKET, SPRING (Tennant Industrial) 1 (before SN 005000)
24b 275-9342 Spring bracket (iron gray) (Tennant Industrial) 1 (after SN 004999)
25 999-0355 175-2249 2
26 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
27 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
28 175-0803 SPRING, EXTN, 1.69OD 0.20WIR 09.5L (Tennant Industrial) 2
29 175-0804 BOLT, EYE, M10 X 1.50 X 064MM, 07.10 EYE (Tennant Industria 2
30 175-0805 CAP, RBR, 0.38ID 1.25L BLK (Tennant Industrial) 2
31 999-0032 Washer 3/8 USS flat plain finish 4
32 175-0806 WASHER, THRUST, 0.75B 1.25D 0.06W (Tennant Industrial) 4
33 375-5185 Sleeve (Tennant Industrial) 4
34 175-0808 PLATE, SLIDE (Tennant Industrial) 2
