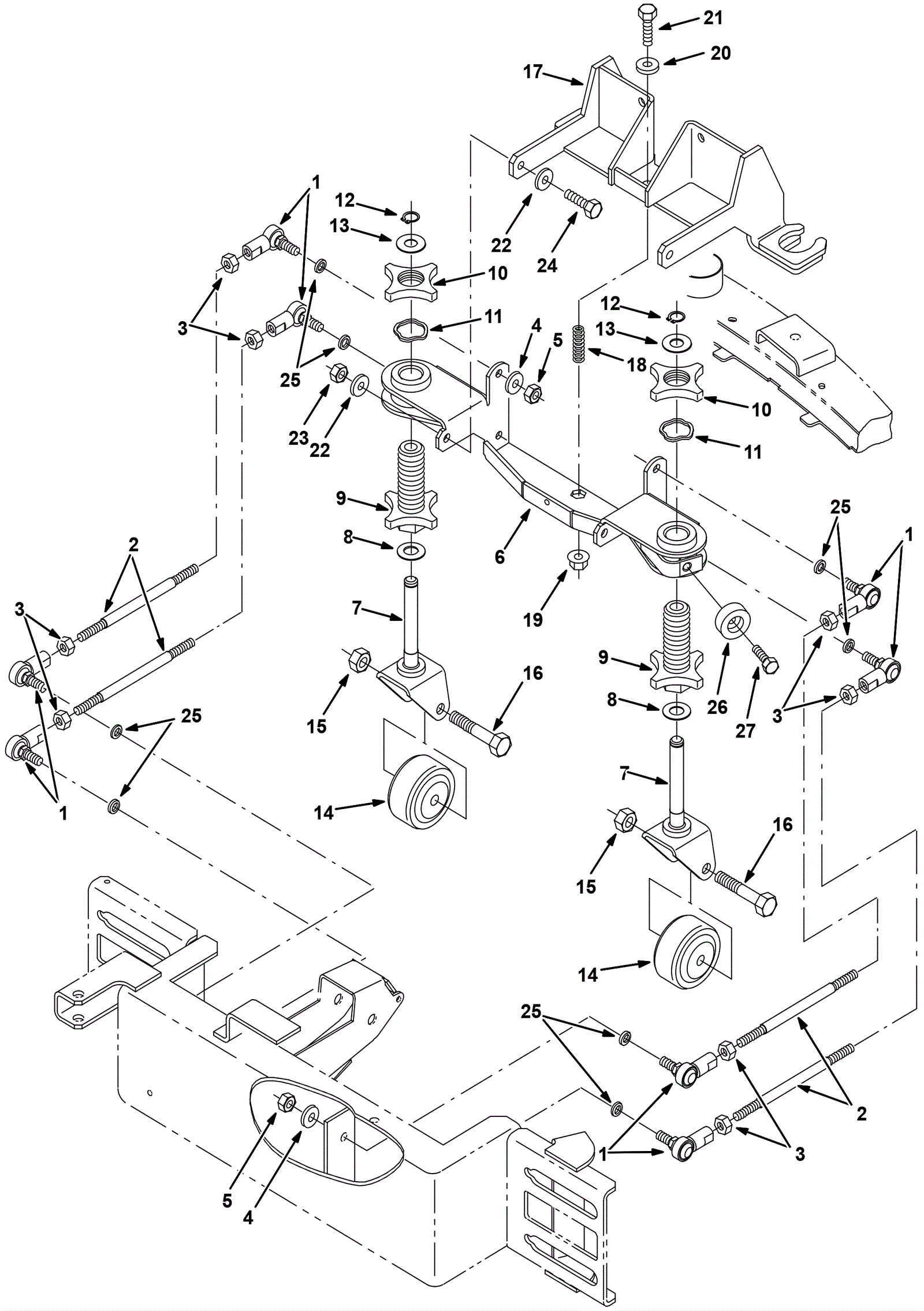

Rear Squeegee Linkage Assembly

#PartDescription ReqNotesAvailability
1 175-0779 ROD-END, M10 X 1.5RH FEM M10 X 1.5STUD (Tennant Industrial) 8
2 175-0780 ROD, THRD, 2 END, M10 X 1.5 07.4L (Tennant Industrial) 4
3 999-1625 Nut M10-1.5 hex jam stainless steel 8
4 999-0355 175-2249 8
5 999-1120 Nut M10-1.5 nylon insert lock stainless steel 8
6a 175-0782 CHANNEL WLDT (Tennant Industrial) 1 (before SN 005000)
6b 275-9338 Channel weldment (iron gray) (Tennant Industrial) 1 (after SN 004999)
7a 275-9339 CASTER KIT, SQGE, REPLMT (Tennant Industrial) 2 (includes 7-16)
7b 175-0783 PIVOT WLDT, CASTER, SQGE (Tennant Industrial) 1
8 175-0784 Thrust bearing 1
9 175-0785 KNOB, STAR, 3.00D 4EAR 4.30L .59B (Tennant Industrial) 1
10 175-0786 KNOB, STAR, 3.00D 4EAR 0.50L M30X3.5[PLS (Tennant Industria 1
11 275-8350 WASHER, WAVY, 1.20B 1.54D .13 (Tennant Industrial) 1
12 175-2472 Retaining ring 1
13 175-0787 WASHER, FLAT, 0.60B 1.31D .10, SS (Tennant Industrial) 1
14 175-3481 WHEEL, 03.0D 1.38W 0.50B (Tennant Industrial) 1
15 999-1208 Nut 1/2-13 nylon insert lock stainless steel 1
16 999-0640 Bolt 1/2-13 x 3 18-8 hex head stainless steel 1
17a 175-0789 BRACKET WLDT, PIVOT (Tennant Industrial) 1 (before SN 005000)
17b 275-9340 Channel weldment (iron gray) (Tennant Industrial) 1 (after SN 004999)
18 175-0790 SPRING, DSL, 1.00OD 0.50ID 2.00L (Tennant Industrial) 1
19 175-0791 Nut M10 x 1.5 hex flange 1
20 999-0355 175-2249 1
21 175-0792 Bolt M10-1.5 x 60mm hex head stainless steel 1
22 999-0355 175-2249 4
23 999-1120 Nut M10-1.5 nylon insert lock stainless steel 2
24 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread 2
25 175-3454 Spacer stainless steel 8
26 175-0745 BUMPER, RBR, 1.5D 0.63 0.31H (Tennant Industrial) 1
27 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
