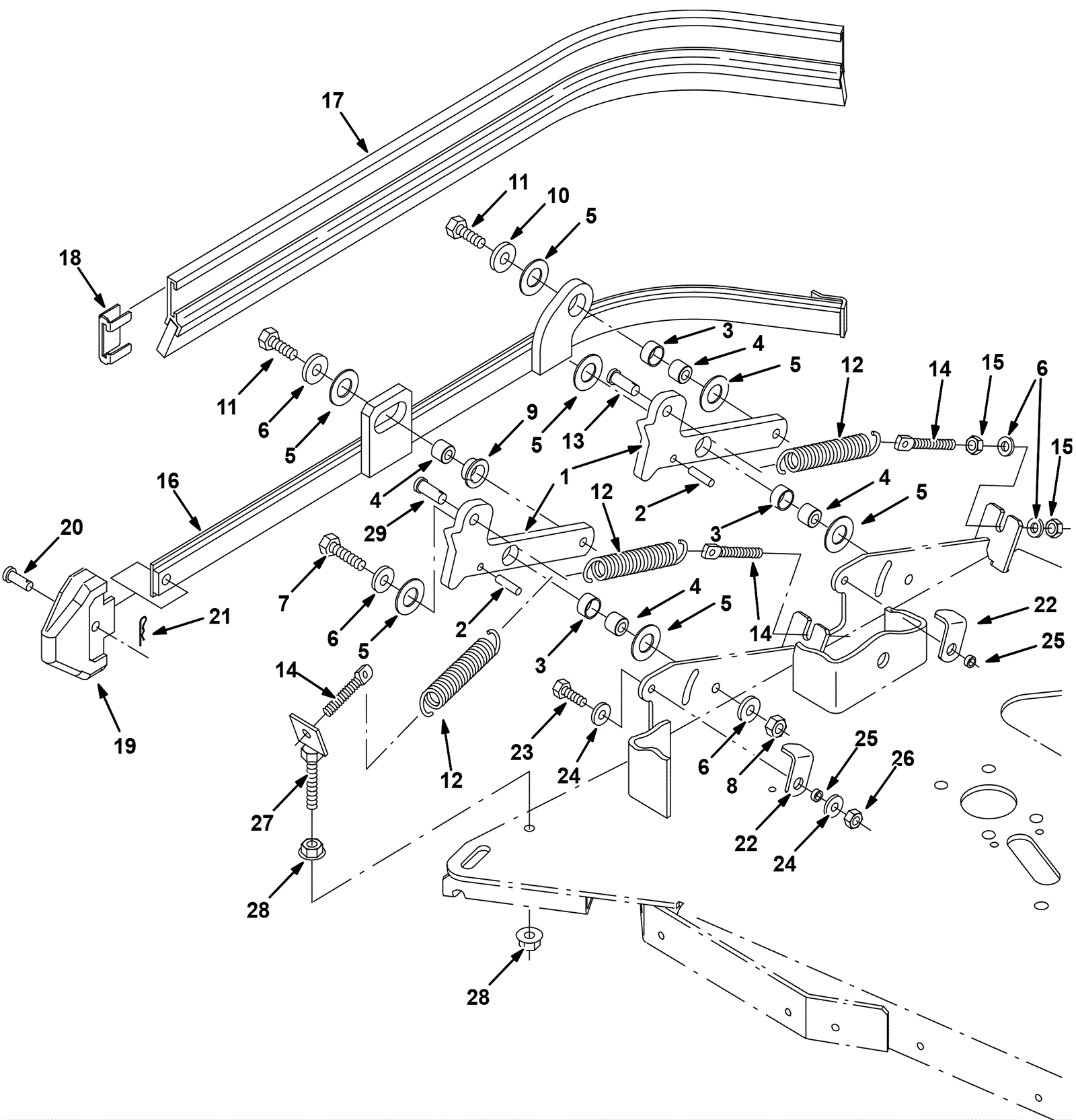

7300 Right Side Squeegee Assembly - Disc - Max Pro 1000

#PartDescriptionPriceReqNotesAvailability
1 175-0771 Squeegee side arm frame weldment (gray) (Tennant Industrial $70.31 2 usually ships 5-16 days
2 175-0768 PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) $4.84 2 usually ships 1-5 days
3 175-3349 Sleeved bushing $11.20 3 ships same day
4 175-0769 SLEEVE, P/M, 0.34B 0.63D 0.5L [316SS] (Tennant Industrial) $7.01 4 usually ships 1-5 days
5 175-3347 Washer .61 thrust $4.40 7 ships same day
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 7 ships same day
7 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
9 175-3460 Flanged bushing $9.60 2 usually ships 5-16 days
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
11 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
12 175-0770 Extension spring $4.50 3 usually ships 5-16 days
13 202-3501 Ring pin $14.70 1 usually ships 3-11 days
14 175-0772 BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial $36.57 3 usually ships 1-5 days
15 999-1424 Nut M8-1.25 hex stainless steel $1.65 6 usually ships 11-24 days
16 175-0773 FRAME WLDT, SQGE, SIDE, RH (Tennant Industrial) $355.71 1 usually ships 1-5 days
17 175-2969 BLADE ASSY, SQGE, 28.6L (Tennant Industrial) $96.69 1 usually ships 5-16 days
18 175-3357 Squeegee blade retainer $10.00 1 ships same day
19 175-0774 GUIDE, POINT, SQGE, SIDE (Tennant Industrial) $56.95 1 usually ships 5-16 days
20 175-0775 Clevis pin (Tennant Industrial) $6.01 1 usually ships 5-16 days
21 175-2113 Cotter pin $2.20 1 ships same day
22 175-0776 BRACKET, LATCH, DBL SCB, SQGE, SIDE (Tennant Industrial) $13.86 2 usually ships 1-5 days
23 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
25 175-0777 P/M sleeve $4.40 2 usually ships 5-16 days
26 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
27 275-8349 BRACKET WLDT, MTG, SPRING (Tennant Industrial) $43.92 1 usually ships 1-5 days
28 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 2 ships same day
29 175-2111 Clevis pin $3.50 1 ships same day
