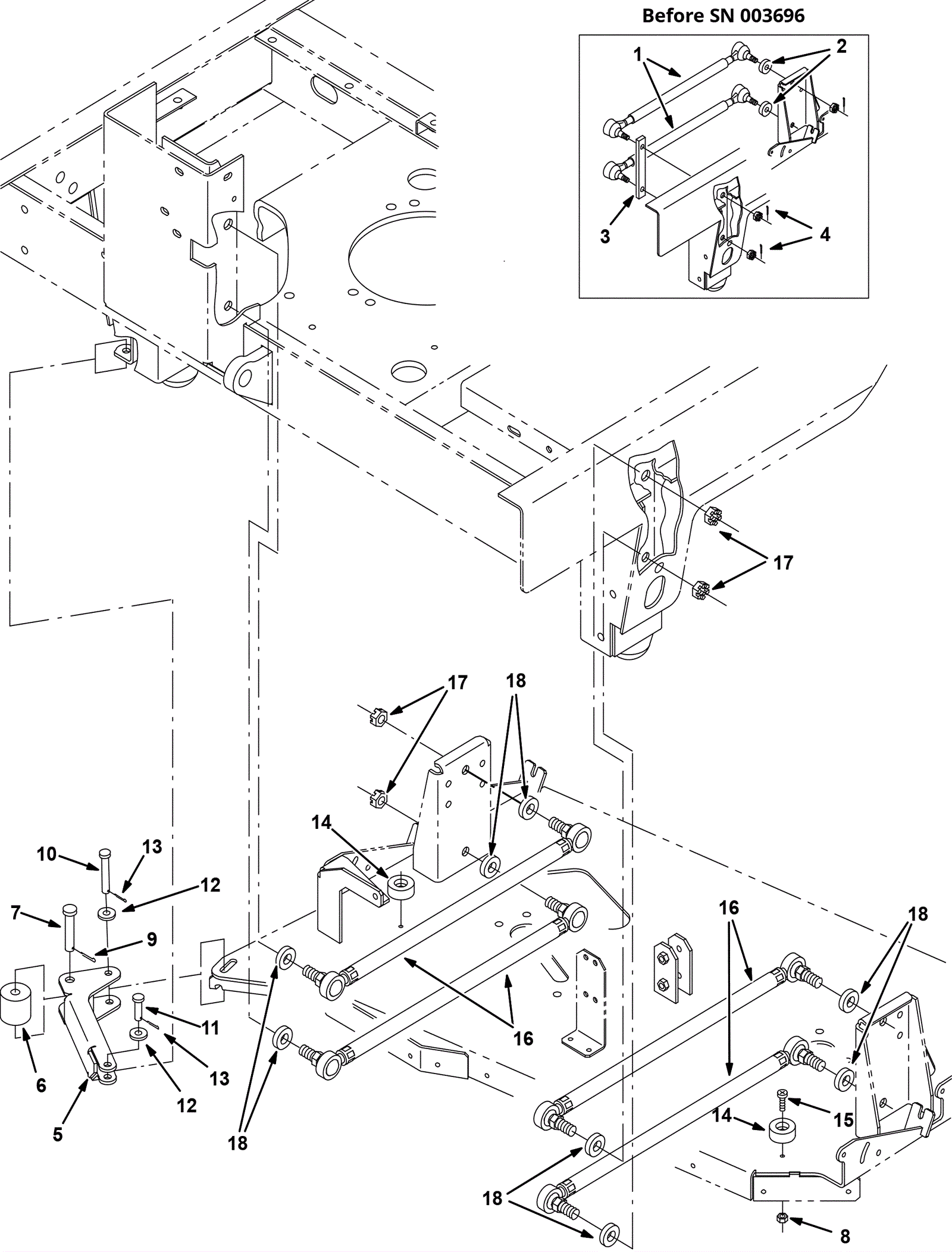

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-9319
|
LINK ASSY, ROD-END, .63-18 (Tennant Industrial) |
4 |
(before SN 003696) |
|
2 |
275-2563
|
Rod-end link assembly (Tennant Industrial) |
4 |
(before SN 003696) |
|
3 |
N/A
|
Not available |
2 |
(link) (before SN 003696) |
|
4 |
175-2040
|
Cotter pin |
8 |
(before SN 003696) |
|
5a |
275-8346
|
GUARD, KICK IN, SCB HEAD (Tennant Industrial) |
1 |
(before SN 005000) |
|
5b |
275-9318
|
Scrub head kick in guard (iron gray) (Tennant Industrial) |
1 |
(after SN 004999) |
|
6 |
175-0742
|
TUBE, 0.52ID 1.75OD 01.6L, STL (Tennant Industrial) |
1 |
|
|
7 |
175-0716
|
Clevis pin |
1 |
|
|
8 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
9 |
175-3281
|
Cotter pin |
1 |
|
|
10 |
175-0743
|
PIN, CLEVIS, 0.38D X 2.50L (Tennant Industrial) |
1 |
|
|
11 |
175-0744
|
Clevis pin .37D x 1 5/16 |
1 |
|
|
12 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
13 |
175-6176
|
Cotter pin |
2 |
|
|
14 |
175-0745
|
BUMPER, RBR, 1.5D 0.63 0.31H (Tennant Industrial) |
2 |
|
|
15 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
16 |
275-9319
|
LINK ASSY, ROD-END, .63-18 (Tennant Industrial) |
4 |
(after SN 003695) |
|
17 |
999-0403
|
Nut 5/8-18 nylon insert lock grade 8 yellow zinc |
8 |
(after SN 003695) |
|
18 |
275-9320
|
Rod-end tube (gray) (Tennant Industrial) |
8 |
(after SN 003695) |
|
