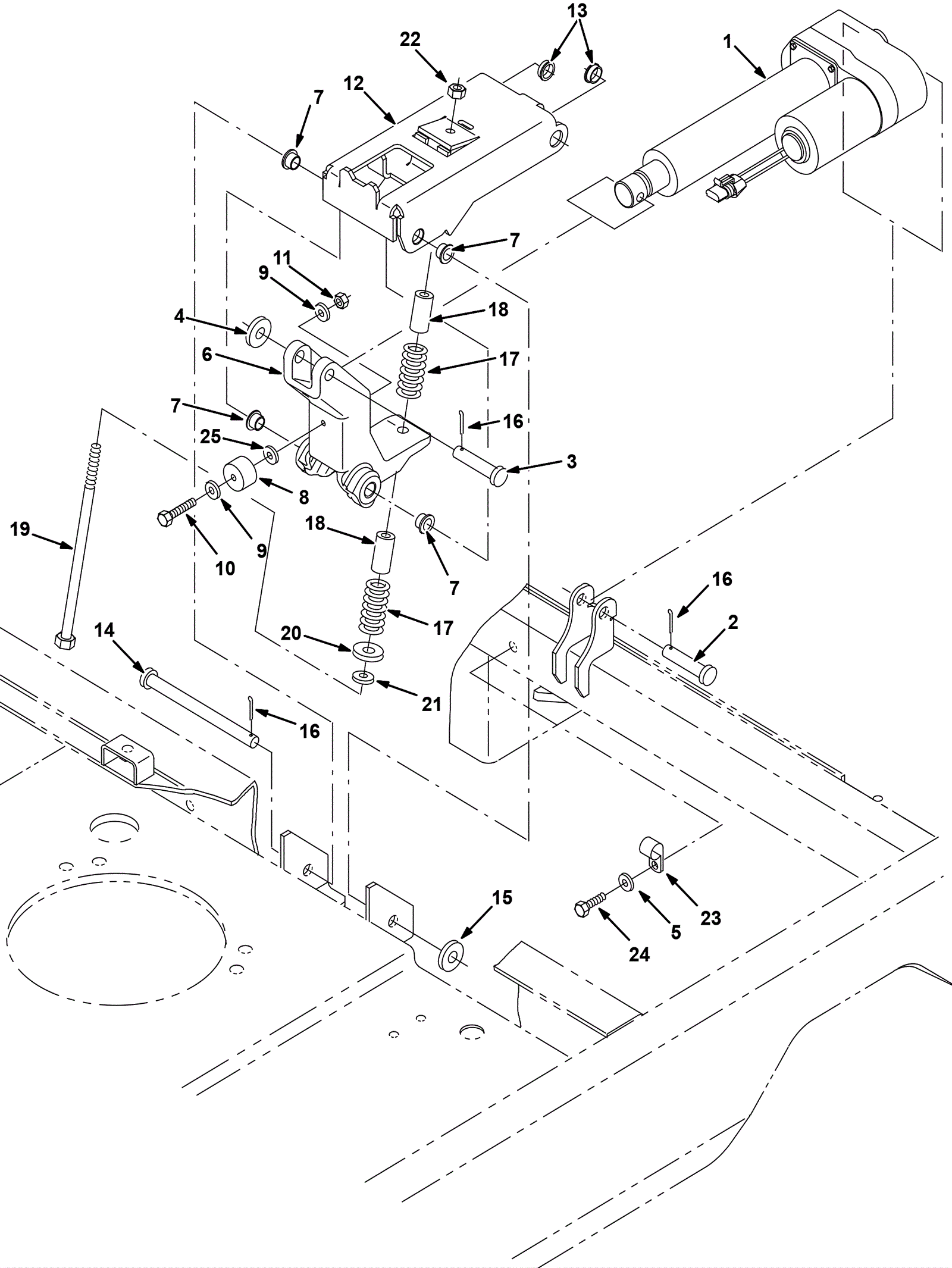

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-0714
|
ACTUATOR, 36VDC, 07.0STRK, 700LB (Tennant Industrial) |
1 |
|
|
2 |
174-0347
|
Clevis pin 1/2 x 1.75 |
1 |
|
|
3 |
175-0716
|
Clevis pin |
1 |
|
|
4 |
999-0187
|
Washer 1/2 flat plain finish |
1 |
|
|
5 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
6 |
175-0717
|
BELLCRANK, LIFT, HEAD (Tennant Industrial) |
1 |
|
|
7 |
175-3335
|
Flanged bushing |
4 |
|
|
8 |
175-0718
|
BUMPER, RBR, 1.2D 0.72L (Tennant Industrial) |
1 |
|
|
9 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
10 |
175-3382
|
Bolt M5-.8 x 25mm hex head stainless steel |
1 |
|
|
11 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
12 |
175-8378
|
Arm weldment (Tennant Industrial) |
1 |
|
|
13 |
175-2099
|
Flanged bushing |
2 |
|
|
14 |
175-0720
|
Clevis pin 1/2D x 5 1/2 |
1 |
|
|
15 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
16 |
175-3281
|
Cotter pin |
3 |
|
|
17 |
175-0721
|
SPRING, CMPR, 1.50OD, 02.5L (Tennant Industrial) |
2 |
|
|
18 |
175-0722
|
SLEEVE, P/M, 0.38B 0.75D 1.7L, BNZ (Tennant Industrial) |
2 |
|
|
19 |
175-0723
|
SCREW, HEX, M8 X 1.25 X 160, 8.8 (Tennant Industrial) |
1 |
|
|
20 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
21 |
999-0355
|
175-2249 |
1 |
|
|
22 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
23 |
175-3170
|
P clamp |
1 |
|
|
24 |
175-0536
|
Bolt M6-1 x 20mm hex head thread forming |
1 |
|
|
25 |
175-2367
|
Steel plated washer |
1 |
|
|
