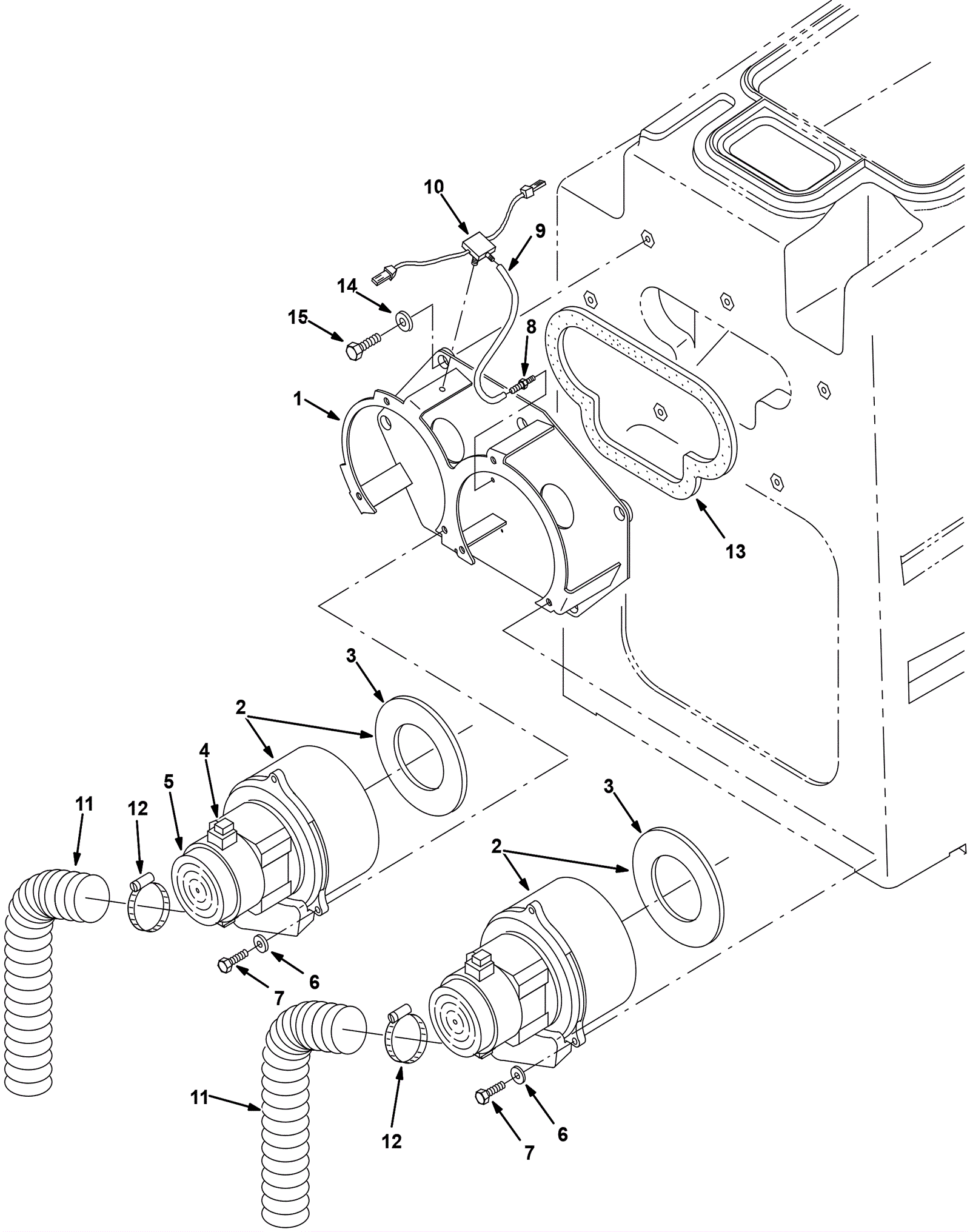

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
175-0710
|
BRACKET WLDT, MTG, FAN (Tennant Industrial) |
1 |
(before SN 003473) |
|
1b |
275-9316
|
Mounting fan bracket weldment (iron gray) (Tennant Industri |
1 |
(after SN 003472) |
|
2a |
275-5200
|
36V 3 stage vacuum motor kit |
1 |
(includes 3a, 4-5) (OEM) |
|
2b |
991-1202-D
|
36V 3 stage vacuum motor tangential with Delphi plug |
2 |
(NON-OEM) |
|
3a |
164-0881
|
Vacuum motor gasket |
1 |
(OEM) |
|
3b |
991-3029
|
Vacuum motor gasket |
1 |
(NON-OEM) |
|
4 |
275-5816
|
Carbon brush kit (pkg of 2) |
1 |
|
|
5 |
175-6954
|
Cooling fan cover |
1 |
|
|
6 |
999-0016
|
Washer 1/4 flat plain finish |
6 |
|
|
7 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
6 |
|
|
8 |
175-3366
|
Fitting |
1 |
|
|
9 |
175-0698
|
HOSE, VACUUM, 0.16ID X 006.0L (Tennant Industrial) |
1 |
|
|
10 |
175-0711
|
SWITCH, VACUUM, DUAL LEVEL (Tennant Industrial) |
1 |
|
|
11 |
175-0712
|
HOSE, EXHAUST, VACFAN, 2.0ID, 47.0L (Tennant Industrial) |
2 |
|
|
12 |
997-2003
|
Hose clamp |
2 |
|
|
13 |
175-0713
|
GASKET, MTG, FAN, .31TH, NEO, ADH (Tennant Industrial) |
1 |
|
|
14 |
175-2367
|
Steel plated washer |
6 |
|
|
15 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
6 |
|
|
