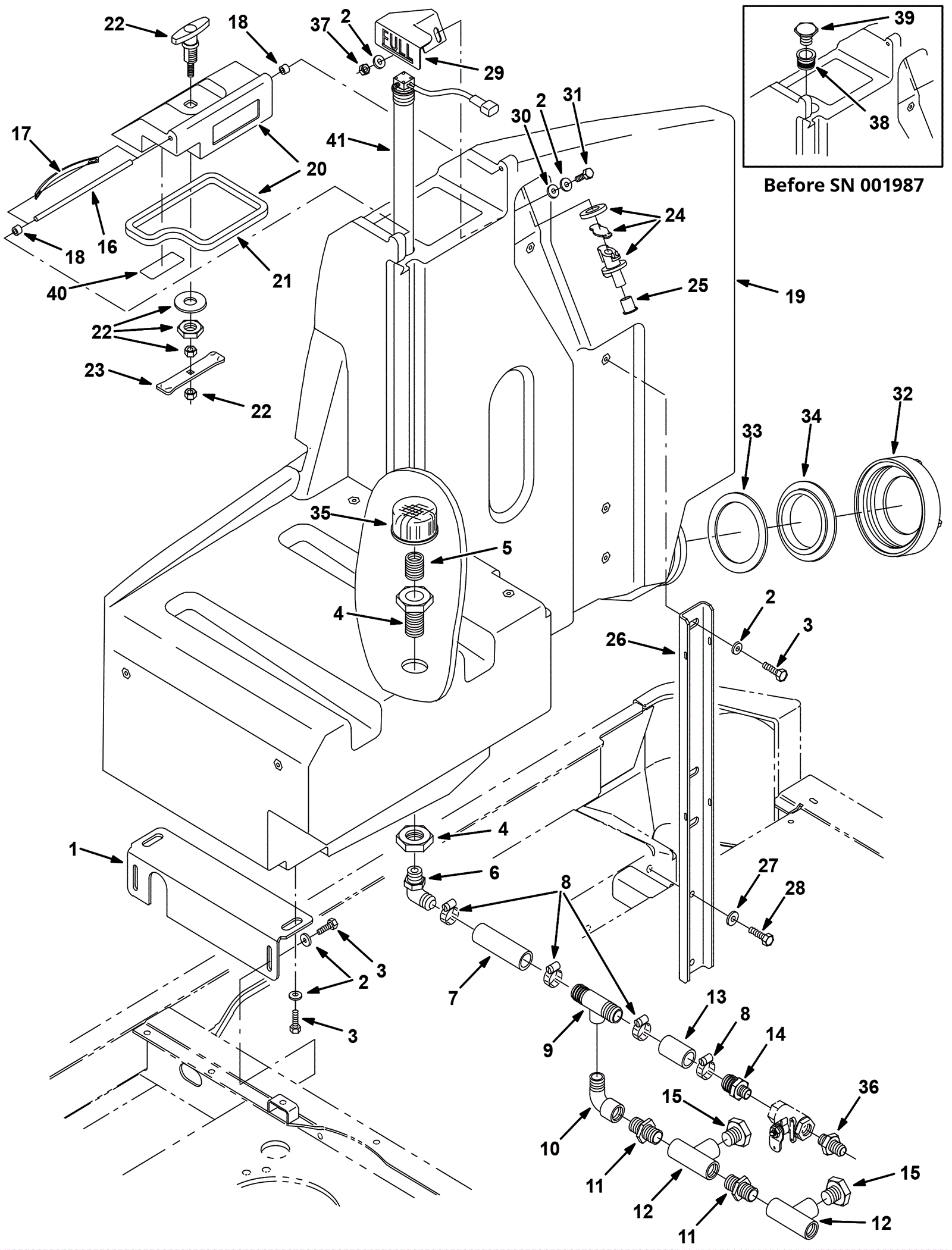

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 275-9287 Tank mounting bracket (iron gray) (Tennant Industrial) 1
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 9
3 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 7
4 175-0657 FITTING, PLSTC, PF16/PF16, BH (Tennant Industrial) 1
5 175-0658 Strain plastic fitting 1
6 175-0659 FITTING, PLSTC, E90, BM16/PM16 (Tennant Industrial) 1
7 175-0660 HOSE, PVC, BRD, 1.00ID 1.38OD 003.5L,CLR (Tennant Industria 1
8 175-2254 Hose clamp 4
9 175-0661 FITTING, PLSTC, TEE, BM16/PF12/BM16, BR (Tennant Industrial 1
10 175-0662 90 degree plastic fitting 1
11 175-0663 FITTING, PLSTC, STR, PM12/PM12 1.60L (Tennant Industrial) 2
12 175-0664 Plastic tee fitting 2
13 175-0665 HOSE, PVC, BRD, 1.00ID 1.38OD 002.3L,CLR (Tennant Industria 1
14 175-0666 FITTING, PLSTC, STR, BM16/PM12 (Tennant Industrial) 1
15 175-2247 Plastic fitting 2
16 175-0667 PIN, HINGE, COVER (Tennant Industrial) 1
17 175-0668 SPRING, COVER (Tennant Industrial) 1
18 175-0669 CAP, VINYL, 0.26D, 0.38L RED (Tennant Industrial) 2
19a 275-9288 TANK KIT, SOLTN, W/ LABEL, REPLMT [7300] (Tennant Industria 1 (before SN 005000)
19b 275-9289 Solution tank kit with label (teal) (Tennant Industrial) 1 (after SN 004999)
20a 275-9290 Solution cover kit with gasket (Tennant Industrial) 1 (before SN 005000) (includes 21a)
20b 275-9291 Solution cover kit with gasket (teal) (Tennant Industrial) 1 (after SN 004999) (includes 21a)
21a 175-0670 GASKET, CELR URE, .50, 05.94W 08.88L,ADH (Tennant Industria 1
21b 175-0672 COVER, TANK, SOLTN (Tennant Industrial) 1
22 175-0673 HANDLE (Tennant Industrial) 1
23 175-0674 BAR (Tennant Industrial) 1
24 175-0675 Valve check kit 1
25 175-0676 Cap plug 1
26a 175-0677 CHANNEL, .19, 2.5W 1.0 29.3L, H&S (Tennant Industrial) 1 (before SN 005000)
26b 275-9292 Channel (Tennant Industrial) 1 (after SN 004999)
27 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
28 999-0246 Bolt M10-1.5 x 35mm hex head full thread 2
29 175-0678 BRACKET [FULL] (Tennant Industrial) 1
30 175-2896 Washer 5/16 1
31 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 1
32 175-3384 Tank cap 1
33 275-4663 Gasket 1
34 175-3414 Tank cover 1
35 175-3408 Solution filter 1
36 175-0680 Strain plastic fitting 1
37 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
38 175-0681 Level sensing grommet 1 (before SN 001987)
39 175-0682 Plastic plug fitting 1 (before SN 001987)
40 175-5222 Attention users decal (FaST) 1 (after SN 001986)
41 275-8326 SWITCH KIT, PRESS, W/34INCH TUBE, REPLMT (Tennant Industria 1 (after SN 001986)
