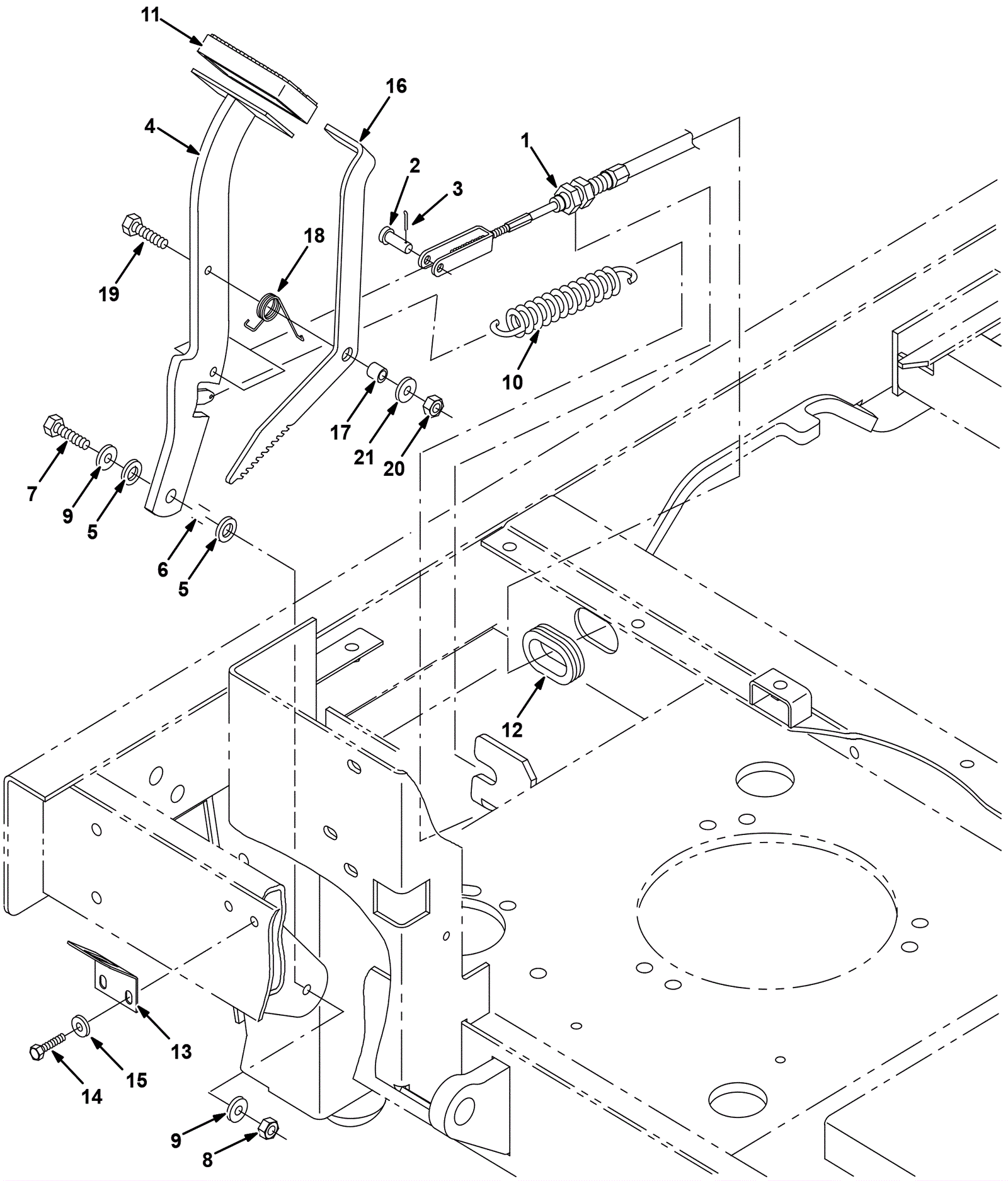

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-0627
|
CABLE, PULL, 049.0L, .3CLEVIS /.3CLEVIS (Tennant Industrial |
1 |
|
|
2 |
175-3351
|
Clevis pin |
1 |
|
|
3 |
175-6176
|
Cotter pin |
1 |
|
|
4 |
275-7957
|
Iron lever weldment (Tennant Industrial) |
1 |
|
|
5 |
175-3354
|
Thrust washer |
2 |
|
|
6 |
175-2249
|
Sleeve |
1 |
|
|
7 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
1 |
|
|
8 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
9 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
10 |
175-0629
|
SPRING, EXTN, 1.00OD 0.11WIR 05.5L (Tennant Industrial) |
1 |
|
|
11 |
175-3279
|
Pedal pad |
1 |
|
|
12 |
175-2366
|
Rubber grommet |
1 |
|
|
13 |
175-0630
|
PLATE, STOP (Tennant Industrial) |
1 |
|
|
14 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
2 |
|
|
15 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
16 |
275-7958
|
Iron parking brake pedal (Tennant Industrial) |
1 |
|
|
17 |
175-0632
|
Sleeve bushing |
1 |
|
|
18 |
175-0633
|
Spring |
1 |
|
|
19 |
175-0634
|
Bolt M8-1 1/4 x 35mm hex head |
1 |
|
|
20 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
