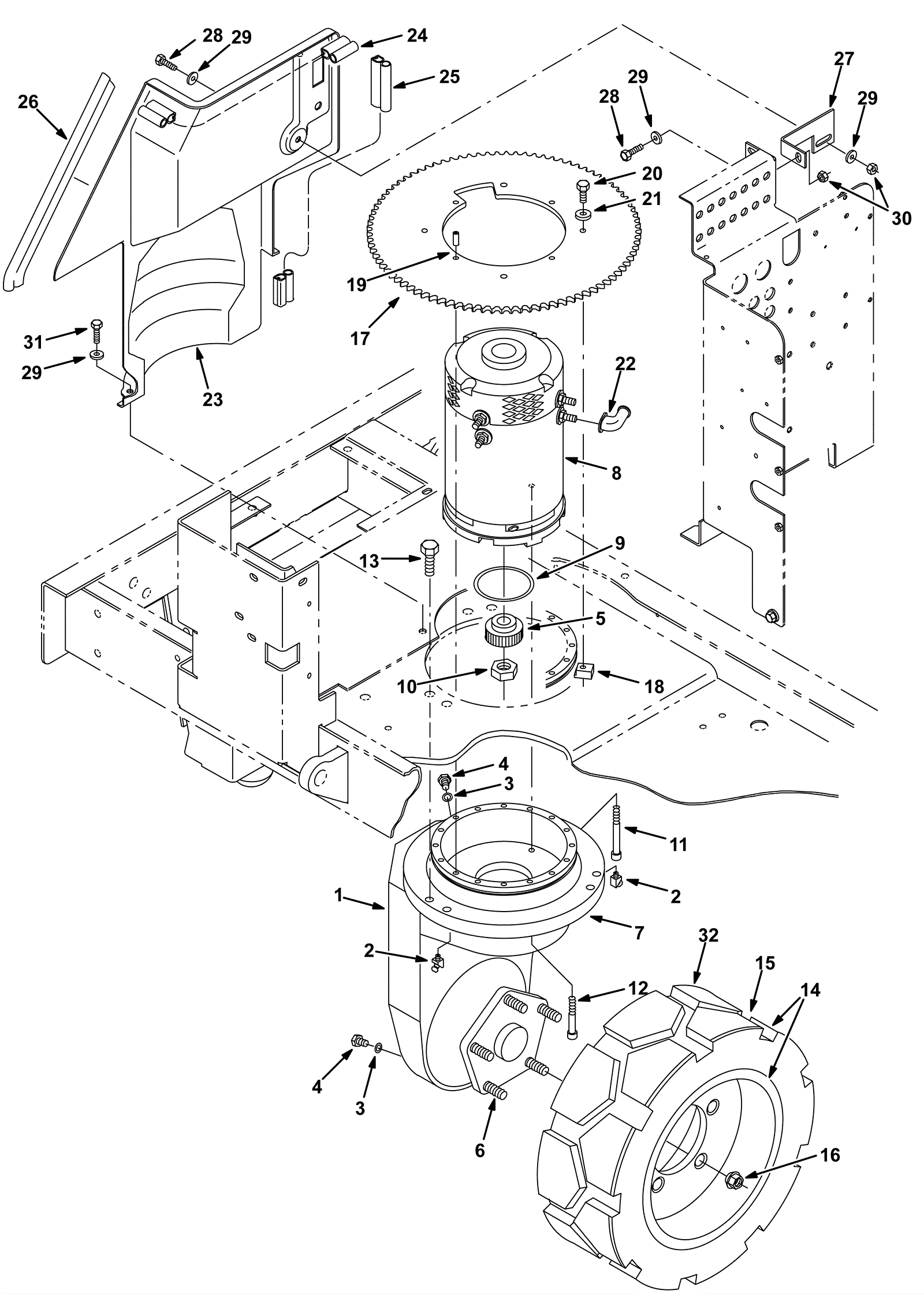

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-0604
|
GEARBOX, 90, DRIVE WHEEL, REAR [HU] (Tennant Industrial) |
1 |
(includes 2-7) |
|
2 |
175-0605
|
FITTING, GREASE (Tennant Industrial) |
2 |
|
|
3 |
175-0606
|
VR, SEAL, ORG (Tennant Industrial) |
2 |
|
|
4 |
175-0607
|
VR, PLUG, GEARBOX, DRIVE WHEEL (Tennant Industrial) |
2 |
|
|
5 |
175-0608
|
VR, GEAR, DRIVE (Tennant Industrial) |
1 |
|
|
6 |
175-0609
|
VR, BOLT, GEARBOX, DRIVE WHEEL (Tennant Industrial) |
5 |
|
|
7 |
175-0610
|
VR, HOUSING, UPPER, GEARBOX, DRIVE WHEEL (Tennant Industria |
1 |
|
|
8 |
175-0611
|
MOTOR, ELE, 36VDC 2000RPM 3.00HP (Tennant Industrial) |
1 |
|
|
9 |
175-0612
|
SEAL, ORG, .139 X 02.98ID (Tennant Industrial) |
1 |
|
|
10 |
999-0182
|
Nut 1/2-20 hex plain finish |
1 |
|
|
11 |
175-0613
|
SCREW, SOC, M8 X 1.25 X 80, 12.9 (Tennant Industrial) |
2 |
|
|
12 |
175-0614
|
Screw M8-1.25 x 60mm socket head (Tennant Industrial) |
1 |
|
|
13 |
175-0615
|
Bolt M12-1.75 x 25mm hex head |
6 |
|
|
14 |
275-8322
|
TIRE ASSY, SOLID, 16.2X6.0 5.7BC/5BOLT (Tennant Industrial) |
1 |
(includes 15) |
|
15 |
275-8323
|
Solid tire (Tennant Industrial) (OBSOLETE) |
1 |
|
|
16 |
175-0618
|
NUT, WHEEL, M14-1.5 (Tennant Industrial) |
5 |
|
|
17 |
175-0619
|
SPROCKET WLDT, #40, 96TOOTH, 7.00B (Tennant Industrial) |
1 |
|
|
18 |
175-0620
|
BLOCK, CLIP, SPRKT, .5 0.8W 01.0L (Tennant Industrial) |
4 |
|
|
19 |
175-0621
|
PIN, ROLL, .312D X 0.75L, .312/.318 (Tennant Industrial) |
4 |
|
|
20 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
|
21 |
175-2305
|
Washer |
4 |
|
|
22 |
175-2122
|
90 degree cable boot |
4 |
|
|
23a |
175-0622
|
PANEL, MOTOR, COVER, W/ LABEL (Tennant Industrial) |
1 |
(includes 24-26) (before SN 005000) |
|
23b |
675-3431
|
PANEL, MOTOR, COVER, W/ LABEL, TEAL (Tennant Industrial) |
1 |
(includes 24-26) (after SN 004999) |
|
24 |
175-0623
|
SEAL, BULB, 90, 1.33 .06-.09GRIP 015.5L (Tennant Industrial |
1 |
|
|
25 |
275-7442
|
SEAL, BULB, SD-0504 32.50LG (Tennant Industrial) |
1 |
|
|
26 |
175-0625
|
SEAL, BULB, STR, 0.58D .06-.09GRIP 12.5L (Tennant Industria |
1 |
|
|
27a |
175-0626
|
BRACKET, PANL (Tennant Industrial) |
1 |
(before SN 005000) |
|
27b |
275-9286
|
Panel bracket (Tennant Industrial) |
1 |
(after SN 004999) |
|
28 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
29 |
999-0024
|
Washer 5/16 flat stainless steel |
8 |
|
|
30 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
31 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
4 |
|
|
32a |
275-7335
|
TIRE, DRIVE, SCRBR, NON-SKID, 16.0X6.0 (Tennant Industrial) |
1 |
(optional) |
|
32b |
175-8283
|
Polyurethane drive wheel (gray) (Tennant Industrial) |
1 |
(optional) |
|
