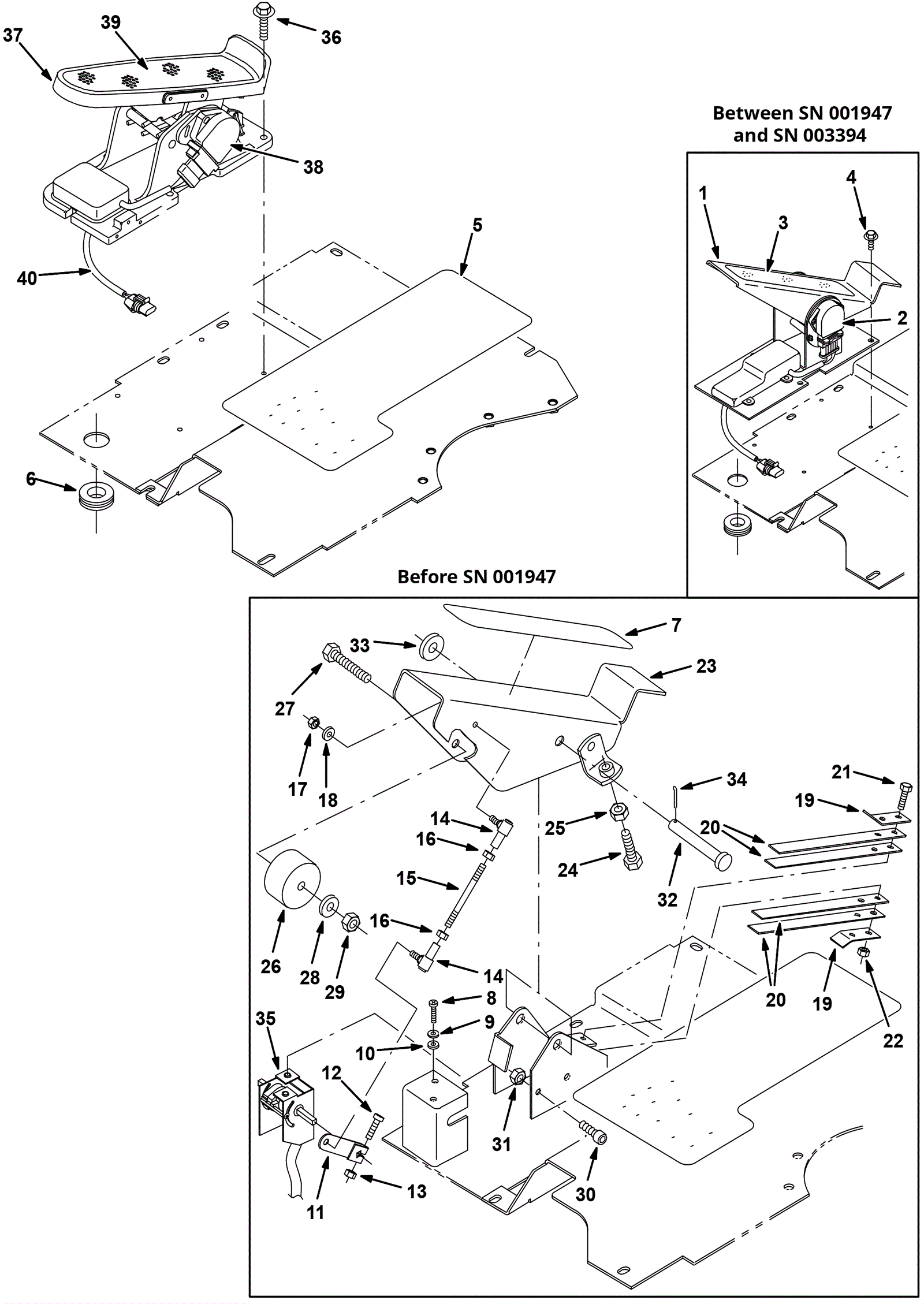

Directional Control Assembly

#PartDescription ReqNotesAvailability
1a 275-9282 PEDAL ASSY, PROPEL, 36VDC (Tennant Industrial) 1 (includes 2-3) (between SN 001947 and SN 003394) (replaced by 1b)
1b 275-5774 Pedal kit (Tennant Industrial) 1 (includes 2-3) (after SN 003393)
2 175-9511 VR, SENSOR, POSITION, PEDAL (Tennant Industrial) 1 (between SN 001947 and SN 003394)
3 175-3307 Non-skid tread 1 (between SN 001947 and SN 003394)
4 175-3298 Bolt M6-1 x 12mm hex head 4 (between SN 001947 and SN 003394)
5 275-8320 TREAD, NON-SKID, 06.0W 15.5L (Tennant Industrial) 1 (after SN 001946)
6 175-3311 Rubber grommet 1 (after SN 001946)
7 175-3307 Non-skid tread 1 (before SN 001947)
8 175-0598 Screw 5mm-.8 x 6 pan head 2 (before SN 001947)
9 999-0998 Washer #10 flat stainless steel 2 (before SN 001947)
10 999-0089 Washer #10 internal star lock zinc plated 2 (before SN 001947)
11 175-0599 Electronic control throttle arm 1 (before SN 001947)
12 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 1 (before SN 001947)
13 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1 (before SN 001947)
14 175-3302 Balljoint 1/4-28 2 (before SN 001947)
15 175-0600 2 end thread rod 1 (before SN 001947)
16 999-0651 Nut 1/4-28 hex stainless steel 2 (before SN 001947)
17 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel 2 (before SN 001947)
18 999-0123 Washer 1/4 SAE flat zinc plated 2 (before SN 001947)
19 175-3299 Spring retainer 2 (before SN 001947)
20 175-3300 Strip stainless 4 (before SN 001947)
21 999-0518 Bolt M6-1 x 25mm hex head full thread zinc 2 (before SN 001947)
22 999-0469 Nut M6-1 nylon insert lock zinc plated 2 (before SN 001947)
23 175-3301 Accelerator pedal weldment 1 (before SN 001947)
24 175-3258 Bolt M10-1.5 x 35mm hex head 1 (before SN 001947)
25 999-0767 Nut M10-1.5 hex coarse thread 1 (before SN 001947)
26 175-3303 Spacer 1 (before SN 001947)
27 999-9081 Screw M10-1.5 x 65mm hex head stainless steel 1 (before SN 001947)
28 999-0120 Washer 3/8 SAE flat 1 (before SN 001947)
29 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1 (before SN 001947)
30 175-0602 Screw M8-1.25 x 25mm socket 1 (before SN 001947)
31 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1 (before SN 001947)
32 175-3280 Clevis pin 1 (before SN 001947)
33 999-0114 Washer 1/2 SAE flat 1 (before SN 001947)
34 175-3281 Cotter pin 1 (before SN 001947)
35 175-0597 Speed controller 1 (before SN 001947)
36 999-0779 Screw M6-1 x 25mm hex head plain finish 4 (after SN 003394)
37 275-9282 PEDAL ASSY, PROPEL, 36VDC (Tennant Industrial) 1 (includes 38-40) (after SN 003394)
38 175-9511 VR, SENSOR, POSITION, PEDAL (Tennant Industrial) 1 (after SN 003394)
39 275-9283 Non-skid tread 1 (after SN 003394)
40 275-9284 Pedal Circuitboard 1 (after SN 003394)
