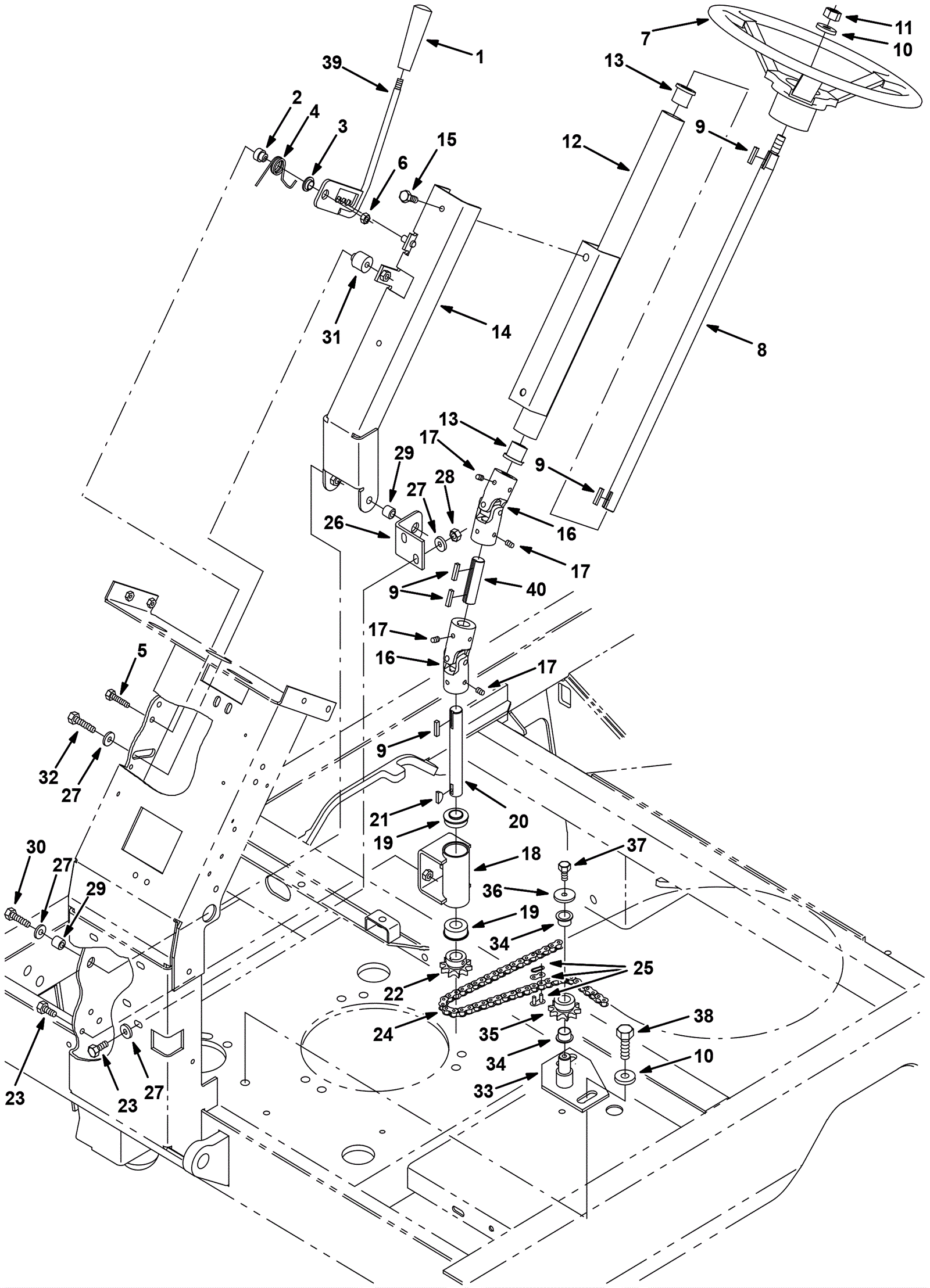

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-0570
|
KNOB, 1.12D 3.88L M08 X 1.25, PLSTC[TPR] (Tennant Industria |
1 |
|
|
2 |
175-0571
|
Pin (Tennant Industrial) (OBSOLETE) |
1 |
|
|
3 |
175-0572
|
BUSHING, FLNG, 0.50B 0.62D 0.25L (Tennant Industrial) |
1 |
|
|
4 |
175-0573
|
SPRING, TORS (Tennant Industrial) |
1 |
|
|
5 |
175-0574
|
Bolt 6mm-1 x 35 hex head |
1 |
|
|
6 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
7 |
275-4653
|
Steering wheel |
1 |
|
|
8 |
175-3203
|
Upper steering shaft |
1 |
|
|
9 |
175-3200
|
Square keyway |
5 |
|
|
10 |
999-0187
|
Washer 1/2 flat plain finish |
2 |
|
|
11 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
12 |
175-0575
|
COLUMN WLDT, STEERING, IRON GRAY (Tennant Industrial) |
1 |
|
|
13 |
175-0576
|
BUSHING, FLNG, 0.75B 1.00D 1.00L, NYL (Tennant Industrial) |
2 |
|
|
14 |
175-0577
|
BRACKET WLDT, STEERING, TILT (Tennant Industrial) |
1 |
|
|
15 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
2 |
|
|
16 |
275-5323
|
U joint |
2 |
(includes 17) |
|
17 |
999-0104
|
Screw 5/16-18 x 1/2 socket head alloy plain finish |
8 |
|
|
18 |
175-0579
|
HOUSING WLDT, BRG (Tennant Industrial) |
1 |
|
|
19 |
175-3195
|
Ball bearing |
2 |
|
|
20 |
175-0580
|
SHAFT, 0.75D 06.0L, 2/.19 KEY, SL (Tennant Industrial) |
1 |
|
|
21 |
175-3198
|
Woodruff key |
1 |
|
|
22 |
175-0581
|
Sprocket |
1 |
|
|
23 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
5 |
|
|
24 |
175-0582
|
CHAIN, RLR, 40 X 129 PITCHES (Tennant Industrial) |
1 |
|
|
25 |
175-0583
|
LINK, CHAIN, RLR, 40 (Tennant Industrial) |
1 |
|
|
26 |
175-0584
|
BRACKET, SPPT, TILT (Tennant Industrial) (OBSOLETE) |
1 |
|
|
27 |
999-0024
|
Washer 5/16 flat stainless steel |
6 |
|
|
28 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
29 |
175-0585
|
TUBE, 0.38ID 0.62OD 00.6L, STL (Tennant Industrial) |
2 |
|
|
30 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
2 |
|
|
31 |
175-0586
|
SLEEVE, FLNG, 0.38B 1.00/0.48D 1.0L, STL (Tennant Industria |
1 |
|
|
32 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
1 |
|
|
33 |
175-0588
|
PLATE WLDT, MTG, IDLER (Tennant Industrial) |
1 |
|
|
34 |
175-0589
|
BUSHING, FLNG, 0.71B 0.79D 0.47L, NYL (Tennant Industrial) |
2 |
|
|
35 |
175-0590
|
SPROCKET, 40, 10TOOTH, 0.79B 0.87W (Tennant Industrial) |
1 |
|
|
36 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
37 |
175-0591
|
Bolt M8-1.25 x 12mm hex head |
1 |
|
|
38 |
175-0592
|
Bolt M10-1.5 x 40mm hex head |
2 |
|
|
39 |
175-0593
|
HANDLE WLDT, STEERING, TILT (Tennant Industrial) |
1 |
|
|
40 |
175-0594
|
SHAFT, 0.75D 02.8L, .19 KEY, SL (Tennant Industrial) |
1 |
|
|
