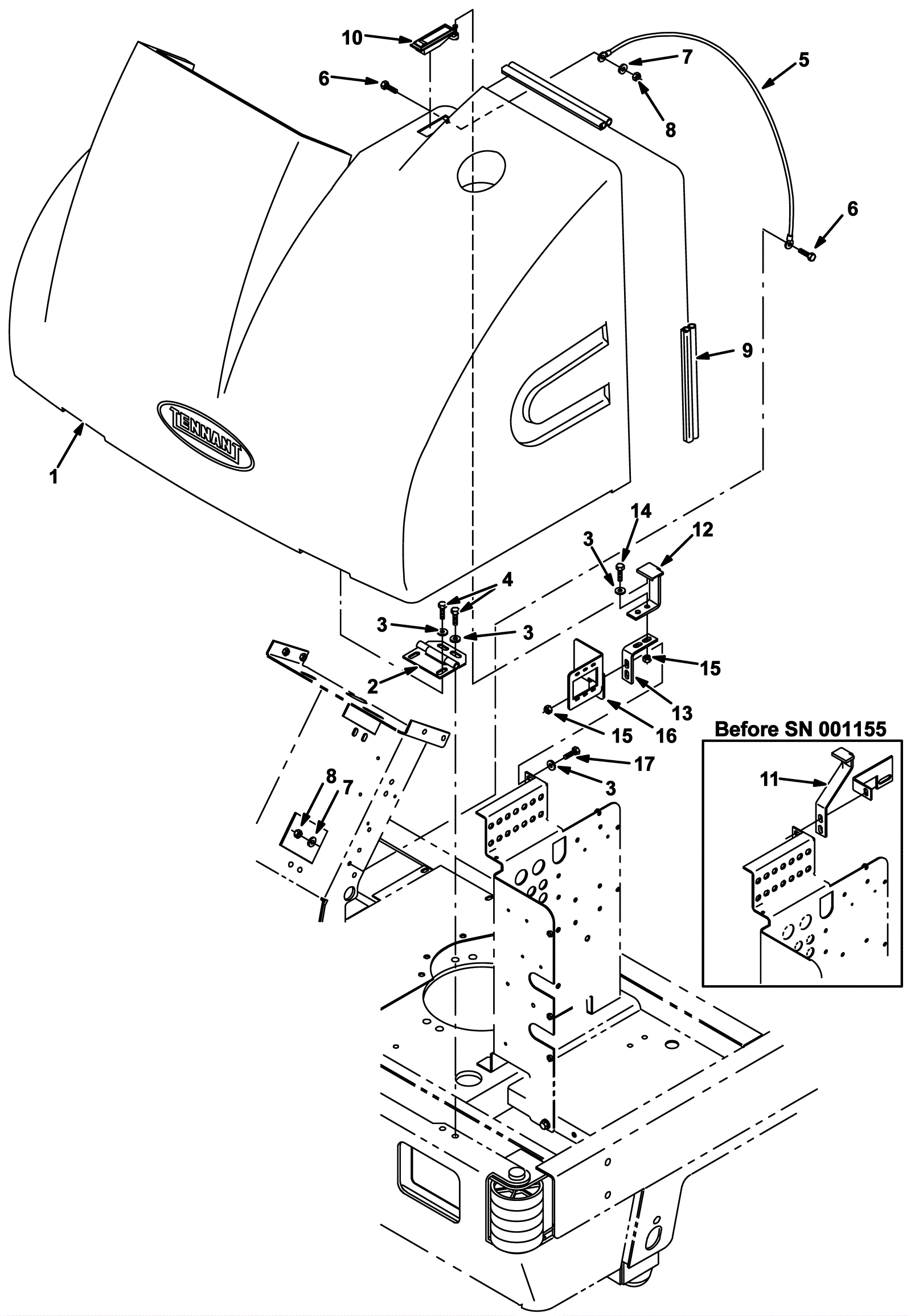

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
175-0537
|
COVER, FRONT (Tennant Industrial) (OBSOLETE) |
1 |
(before SN 005000) |
|
1b |
275-9263
|
Front cover (teal) (Tennant Industrial) |
1 |
(after SN 004999) |
|
2 |
175-0538
|
HINGE, .38PIN .11 3.5W 04.0L, 4/0.38SL (Tennant Industrial) |
2 |
|
|
3 |
999-0024
|
Washer 5/16 flat stainless steel |
12 |
|
|
4 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
8 |
|
|
5 |
175-0539
|
CABLE, GLV .13D 027.0L .25EYE /.25EYE (Tennant Industrial) |
1 |
|
|
6 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
2 |
|
|
7 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
8 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
9 |
175-0540
|
SEAL (Tennant Industrial) (OBSOLETE) |
1 |
|
|
10 |
175-0541
|
LATCH, TRIGGER (Tennant Industrial) |
1 |
|
|
11 |
N/A
|
Not available |
1 |
(replacement bracket kit) (before SN 001155) |
|
12a |
275-9268
|
BRACKET, LATCH, COVER (Tennant Industrial) |
1 |
(between SN 001155 and SN 004999) |
|
12b |
275-9264
|
Latch cover bracket (iron gray) (Tennant Industrial) |
1 |
(after SN 004999) |
|
13a |
275-9267
|
BRACKET, LATCH, COVER (Tennant Industrial) |
1 |
(between SN 001155 and SN 004999) |
|
13b |
275-9265
|
Latch cover bracket (iron gray) (Tennant Industrial) |
1 |
(after SN 004999) |
|
14 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
(after SN 001154) |
|
15 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
(after SN 001154) |
|
16a |
275-8533
|
BRACKET, MTG, CIRCUITBREAKER [HI-MAG] (Tennant Industrial) |
1 |
(between SN 001706 and SN 004999) |
|
16b |
275-9266
|
Circuitbreaker mounting bracket (Tennant Industrial) |
1 |
(after SN 004999) |
|
17 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
2 |
(after SN 001705) |
|
