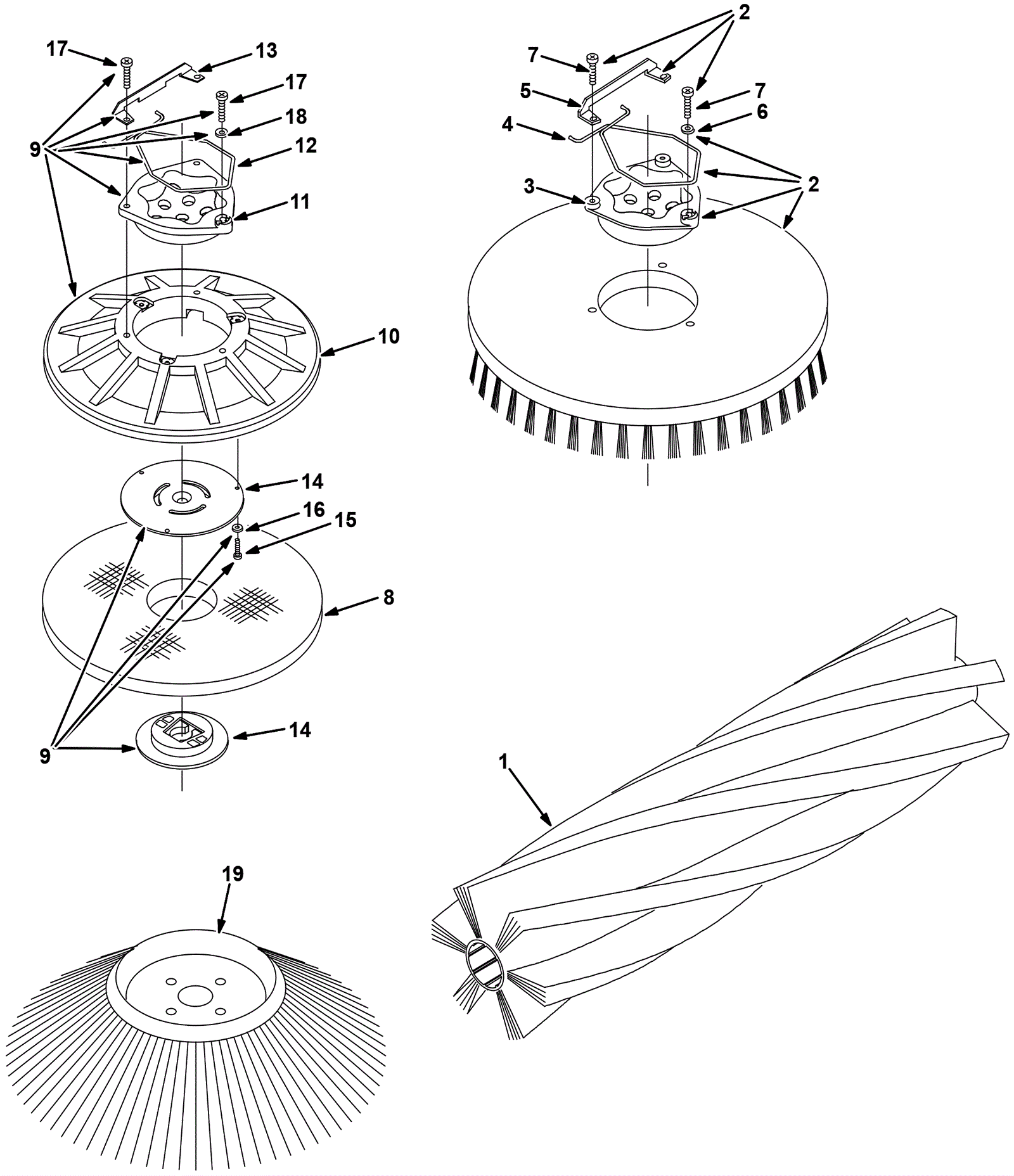

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-8279
|
BRUSH, SCB, 39L, 20SR, PYP, SPL (Tennant Industrial) |
2 |
|
|
1b |
275-8280
|
BRUSH, SCB, 39L, 20SR, SAB, SPL (Tennant Industrial) |
2 |
|
|
1c |
175-2978
|
BRUSH, SCB, 39L, 20SR, NYL, SPL (Tennant Industrial) |
2 |
|
|
2a |
175-0504
|
Scrub brush disk assembly 20 D Nylon (Tennant Industrial) |
2 |
(includes 3-7) |
|
2b |
996-1019
|
Polypropelene scrubbing brush ( Tennant Industrial) |
2 |
(includes 3-7) |
|
2c |
996-1624
|
19 inch heavy grit stripping brush - 80 grit |
2 |
(includes 3-7) |
|
3 |
175-2335
|
Brush adaptor |
1 |
|
|
4 |
175-2071
|
Brush retaining spring |
1 |
|
|
5 |
175-2072
|
Spring retainer bracket |
1 |
|
|
6 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
7 |
175-0505
|
Screw M6-1 x 35mm pan head stainless steel |
3 |
|
|
8a |
255-2020
|
20 inch premium white polishing pad (pkg of 5) |
2 |
|
|
8b |
175-0510
|
Buff pad 20d red |
2 |
|
|
8c |
175-0511
|
20in scrub pad (blue) |
2 |
|
|
8d |
255-2092
|
20 inch premium brown stripping pad (pkg of 5) |
2 |
|
|
8e |
475-3466
|
20 inch stripping pad (each) |
2 |
|
|
8f |
475-3477
|
20 inch surface prep pad (maroon)(each) |
2 |
|
|
9 |
175-0513
|
DRIVER ASSY, PAD, 20.0D (Tennant Industrial) |
2 |
(includes 10-18) |
|
10 |
175-0514
|
DISK, DRIVER, PAD, W/ FACE, 20.0D (Tennant Industrial) |
1 |
|
|
11 |
175-2335
|
Brush adaptor |
1 |
|
|
12 |
175-2071
|
Brush retaining spring |
1 |
|
|
13 |
175-2072
|
Spring retainer bracket |
1 |
|
|
14 |
175-0515
|
Centering device (OBSOLETE) |
1 |
|
|
15 |
175-2079
|
Screw M4-.07 x 35mm pan head stainless steel |
3 |
|
|
16 |
999-0266
|
Washer #8 SAE flat stainless steel |
3 |
|
|
17 |
175-0505
|
Screw M6-1 x 35mm pan head stainless steel |
3 |
|
|
18 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
19 |
275-1971
|
Polypropylene side broom (Tennant Industrial) |
1 |
(option) |
|
