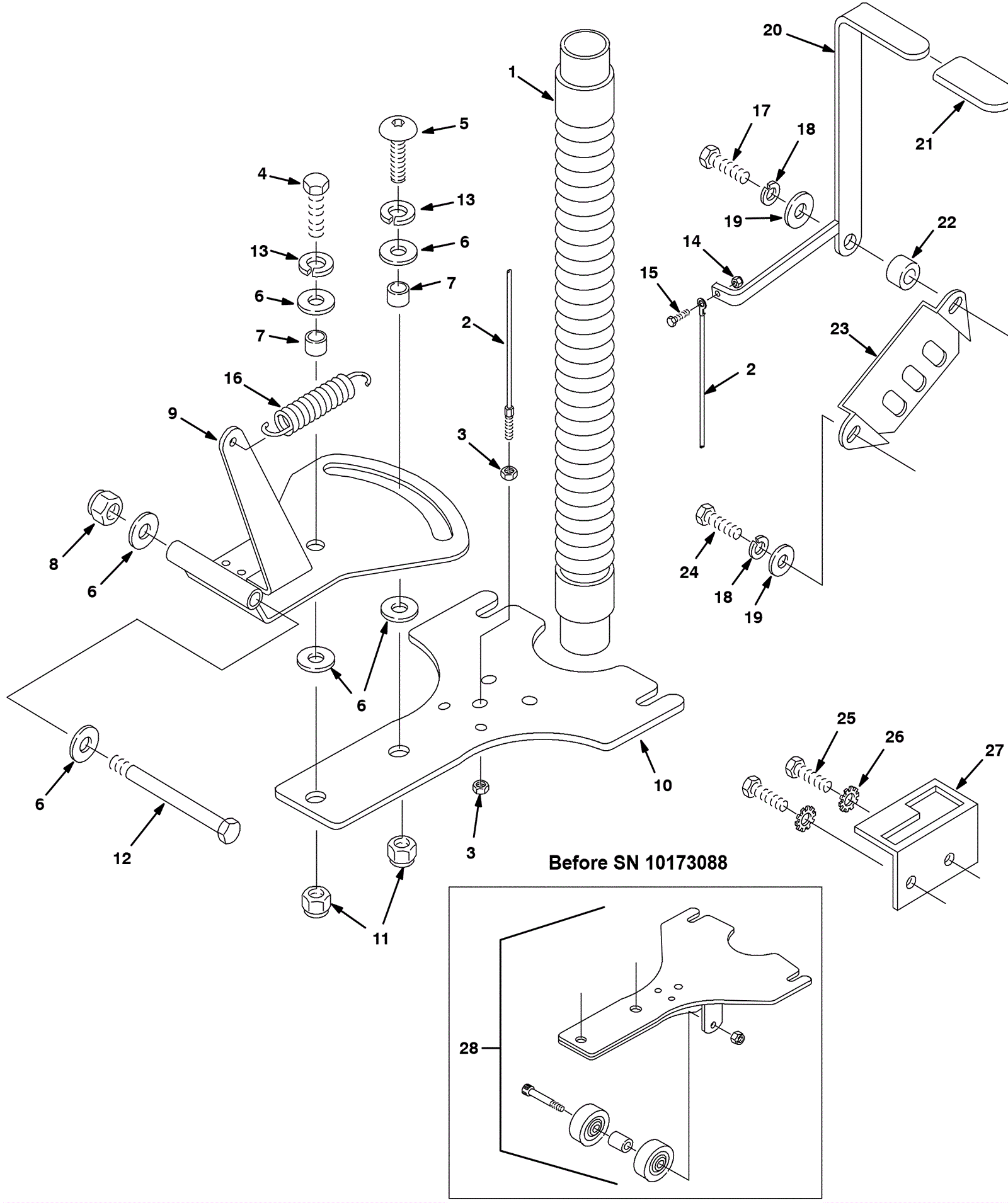

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-3067
|
Vacuum hose 1 1/2 x 30 inch with cuffs |
1 |
|
|
2 |
175-3068
|
Squeegee lift cable |
1 |
|
|
3 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
4 |
999-0687
|
Bolt 1/2-13 x 1 1/4 hex head stainless steel |
1 |
|
|
5 |
175-3701
|
Screw 1/2 - 13 x 1 1/4 |
1 |
|
|
6 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
6 |
|
|
7 |
175-2743
|
Sleeved bushing |
2 |
|
|
8 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
1 |
|
|
9 |
275-6137
|
Squeegee pivot mounting bracket (OBSOLETE) |
1 |
|
|
10 |
175-8742
|
Squeegee mount bracket |
1 |
|
|
11 |
999-0050
|
Nut 1/2-13 hex jam plain finish |
2 |
|
|
12 |
175-3069
|
Screw 1/2-13 x 5 1/2 |
1 |
|
|
13 |
999-0126
|
Washer 1/2 split lock |
2 |
|
|
14 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
15 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
16 |
175-3704
|
Spring |
1 |
|
|
17 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
|
18 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
19 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
20 |
175-3077
|
Squeegee lift handle |
1 |
|
|
21 |
175-2723
|
Handle grip (rubber) |
1 |
|
|
22 |
175-3078
|
Bushing spacer (OBSOLETE) |
1 |
|
|
23 |
175-2728
|
Locking plate |
1 |
|
|
24 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
|
25 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
26 |
999-0311
|
Washer #10 external star lock zinc plated |
2 |
|
|
27 |
175-3080
|
Squeegee lock plate |
1 |
|
|
28 |
275-4796
|
Squeegee caster kit |
1 |
|
|
