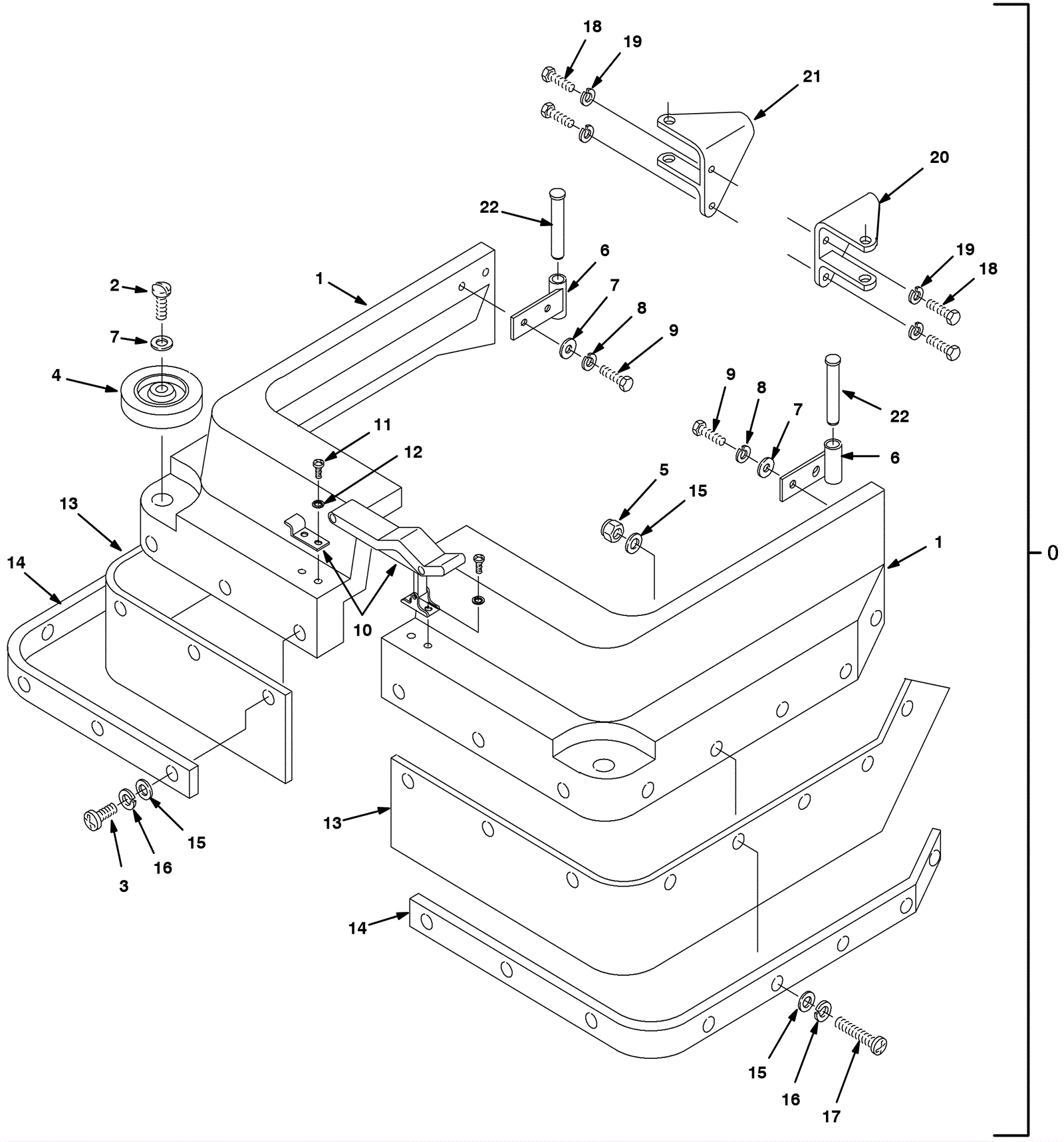

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
175-0360
|
Left side skirt assembly |
1 |
(includes 1a-17) (2401) |
|
0b |
175-0361
|
Left side skirt assembly |
1 |
(includes 1a-17) (2601) |
|
0c |
175-0362
|
Right side skirt assembly |
1 |
(includes 1a-17) (2401) |
|
0d |
175-0363
|
Right side skirt assembly |
1 |
(includes 1a-17) (2601) |
|
1a |
175-3045
|
Skirt left side green (2401) |
1 |
|
|
1b |
175-3046
|
Skirt left side green (2601) |
1 |
|
|
1c |
175-3047
|
Skirt right side green (2401) (OBSOLETE) |
1 |
|
|
1d |
175-3048
|
Skirt right side green (2601) |
1 |
|
|
2 |
999-0742
|
Screw M8-1.25 x 40mm pan head phillips zinc |
2 |
|
|
3 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
10 |
|
|
4 |
175-0117
|
Guide wheel with bushing |
2 |
|
|
5 |
999-0740
|
Nut M5-.8 hex stainless steel |
6 |
|
|
6 |
175-3049
|
Skirt mount bracket |
2 |
|
|
7 |
999-0024
|
Washer 5/16 flat stainless steel |
6 |
|
|
8 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
9 |
999-0900
|
Screw M8-1.25 x 18mm hex head stainless steel |
4 |
|
|
10a |
375-7802
|
Latch |
1 |
(OEM) |
|
10b |
991-8561
|
Rubber draw latch with keeper |
1 |
(NON-OEM) |
|
11 |
999-0530
|
Screw M4-.7 x 8mm pan head slotted zinc |
4 |
|
|
12 |
999-1083
|
Washer #8 internal star lock stainless steel |
4 |
|
|
13a |
175-3052
|
Splash guard 2401 (OBSOLETE) |
2 |
|
|
13b |
175-3053
|
Splash guard 2601 |
2 |
|
|
14a |
175-3054
|
Splash guard strap 2401 |
2 |
|
|
14b |
175-3055
|
Splash guard strap 2601 |
2 |
|
|
15 |
999-0393
|
Washer 3/16 flat aluminum |
22 |
|
|
16 |
999-1026
|
Washer #10 internal lock stainless steel |
16 |
|
|
17 |
999-0797
|
Screw M5-.8 x 30mm pan head phillips stainless steel |
6 |
|
|
18 |
175-3679
|
Screw M8 x 1 1/4 x 20 |
4 |
|
|
19 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
20 |
175-3050
|
Skirt mount bracket lefthand |
1 |
|
|
21 |
175-3051
|
Skirt mount bracket righthand |
1 |
|
|
22 |
175-2795
|
Skirt pin (OBSOLETE) |
2 |
|
|
