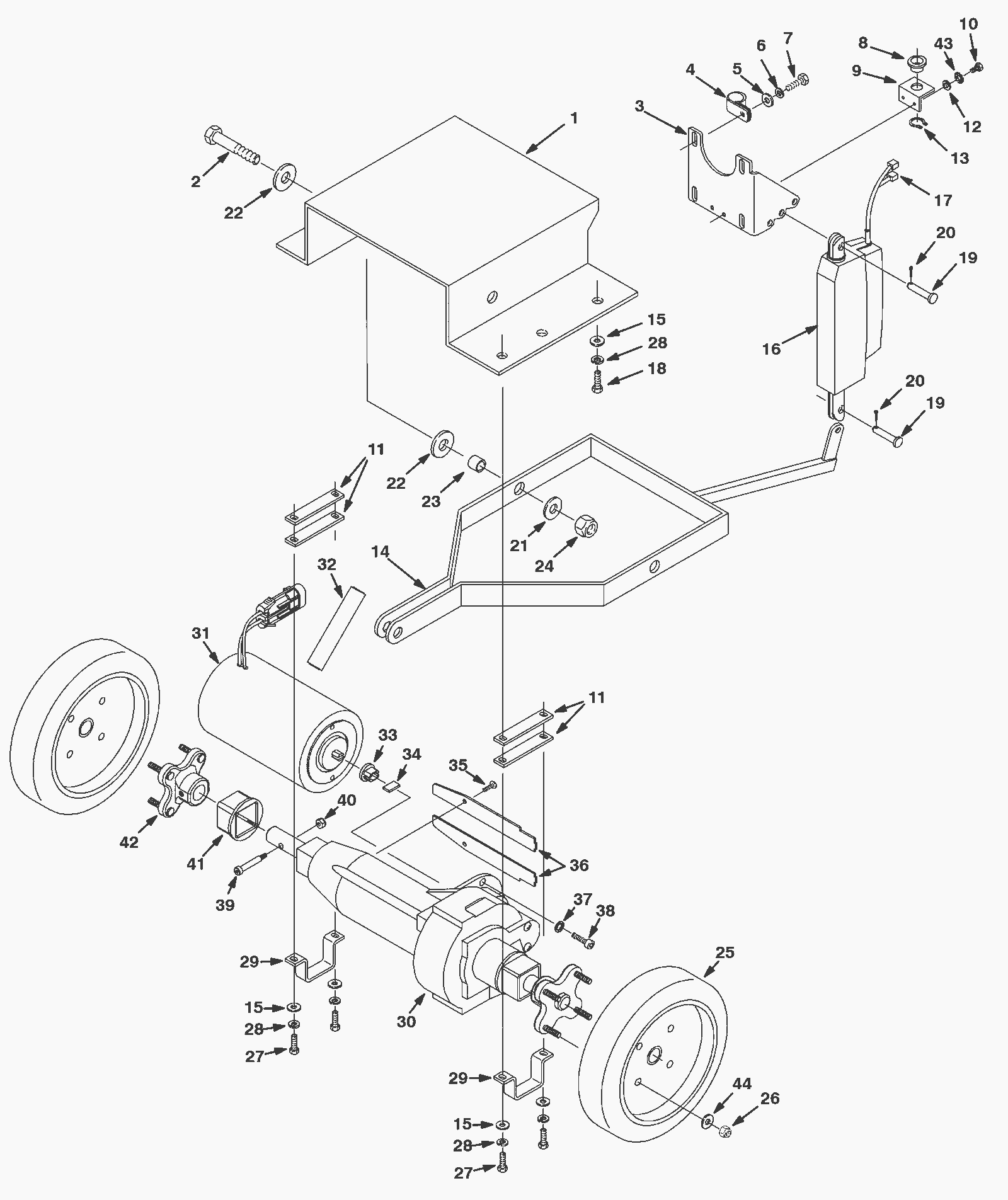

Drive Assembly

#PartDescription ReqNotesAvailability
1 175-3002 Base transaxle plate 1
2 175-3648 Shoulder bolt (Tennant industrial) 2
3 275-4594 Actuator bracket 1
4 175-3005 P clamp 1
5 999-0024 Washer 5/16 flat stainless steel 4
6 999-0553 Washer 5/16 medium split lock stainless steel 4
7 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
8 175-8735 Cable bushing 1
9 175-3007 Cable guide bracket 1
10 999-0807 Screw M6-1 x 10mm flat head phillips 2
11 175-3666 Axle spacer 4
12 999-0016 Washer 1/4 flat plain finish 2
13 175-3008 Retaining ring 1
14 175-3025 Lift dual motor bracket (OBSOLETE) 1
15 999-0617 Washer 3/8 x 1 flat stainless steel 6
16 175-3010 Actuator 1
17 175-3011 Female terminal 2
18 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel 2
19 175-3012 Clevis pin 2
20 175-5080 Cotter pin 2
21 999-0032 Washer 3/8 USS flat plain finish 2
22 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
23 175-3023 Bushing 2
24 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2
25a 175-3017 Neoprene solid wheel (OBSOLETE) 2
25b 675-9896 Air filled (pneumatic) tire (OBSOLETE) 2
25c 175-3652 Foam filled wheel 2
25d 175-3146 Air filled (pneumatic) tire kit (pkg of 2) (OBSOLETE) 1
25e 175-3147 Foam filled tire kit (pkg of 2) (OBSOLETE) 1
26 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
27 175-3019 Screw M10 x 35mm 4
28 999-1081 Washer M10 split lock stainless steel 6
29 175-3667 Transaxle MTG bracket 2
30a 175-3622 24V transaxle motor assembly 1 (includes 30b -42)
30b 175-3654 Transaxle body 1
31 175-3657 24V transaxle motor 1
32a 175-7898 Carbon brush (pkg of 4) 1 (After SN 10169615 - for motor #614165)
32b 175-4345 Carbon brush (pkg of 2) 1 (Before SN 10169615 - for motor #612877)
33 175-3655 Transaxle coupling 1
34 175-3656 Transaxle key 1
35 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc 2
36 N/A Not available 2
37 999-0238 Washer 1/4 internal star lock zinc plated 2
38 999-1320 Screw M6-1 x 20mm socket head stainless steel 2
39 999-0745 Screw 10-24 x 1 1/4 socket head shoulder 2
40 999-0442 Nut 10-24 nylon insert lock stainless steel 2
41 175-3660 Transaxle sleeve 2
42 275-5229 Transaxle wheel hub with retainer 2
43 999-1024 Washer 1/4 external tooth lock stainless steel 2
44 999-0016 Washer 1/4 flat plain finish 8
