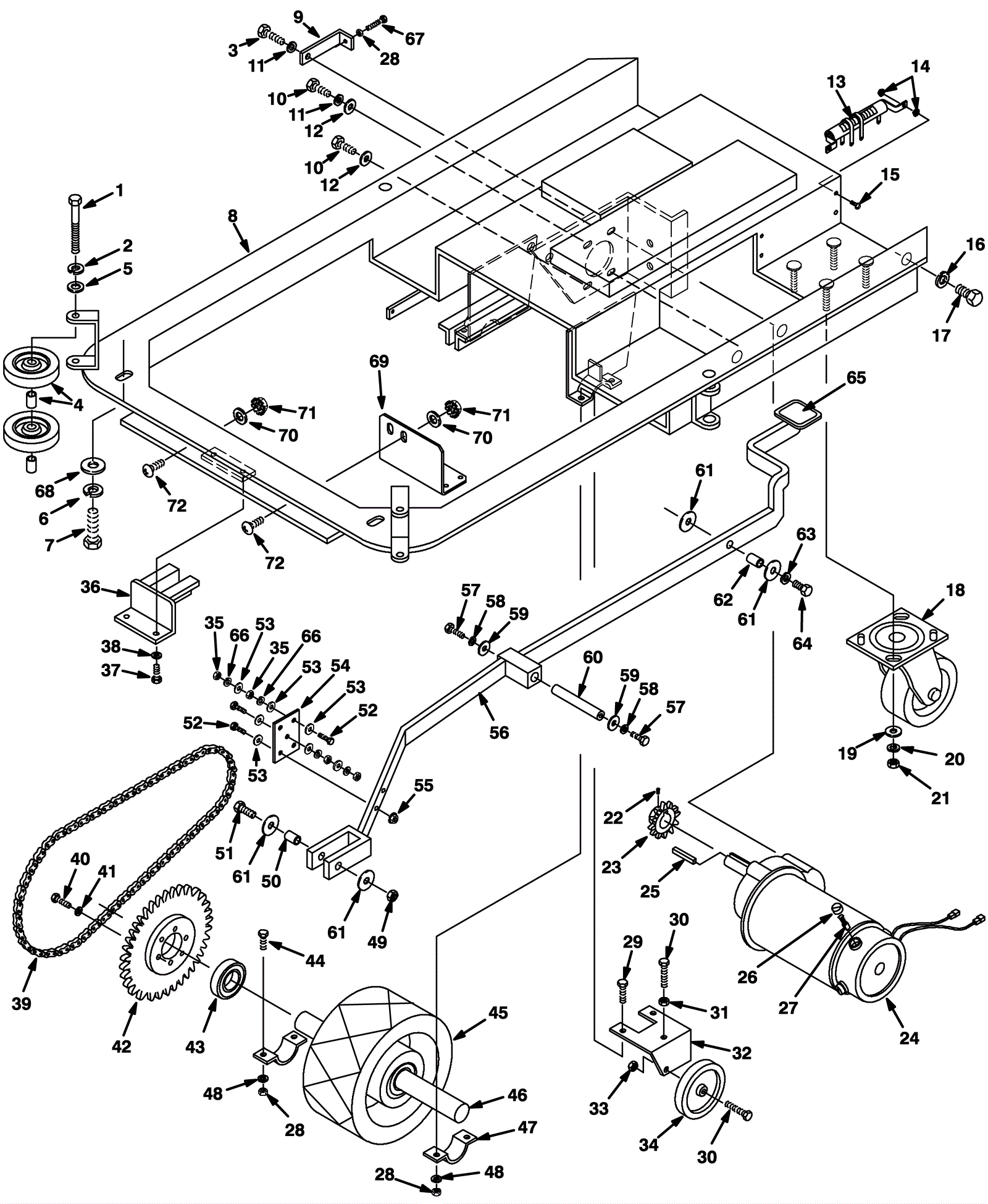

Drive Wheel Assembly

#PartDescription ReqNotesAvailability
1 175-2945 Screw 5/15-18 x 2 3/4 (OBSOLETE) 2
2 999-0553 Washer 5/16 medium split lock stainless steel 2
3 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 1
4 175-0117 Guide wheel with bushing 4
5 999-0024 Washer 5/16 flat stainless steel 2
6 999-1081 Washer M10 split lock stainless steel 2
7 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel 2
8 175-2765 Chassis (OBSOLETE) 1
9 175-2766 Drive motor tension bracket 1
10 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 3
11 999-0034 Washer 3/8 split lock plain finish 3
12 999-0617 Washer 3/8 x 1 flat stainless steel 3
13 175-2767 Resistor 2
14 999-0356 Nut 10-24 lock stainless steel 8
15 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 4
16 999-0126 Washer 1/2 split lock 3
17 999-1223 Screw M12-1.75 x 25mm hex head stainless steel 3
18a 175-2768 Swivel caster wheel 2 (standard)
18b 275-5617 4 inch swivel caster 2 (softer thread compound)
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8
20 999-1081 Washer M10 split lock stainless steel 8
21 999-0767 Nut M10-1.5 hex coarse thread 8
22 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 1
23 175-2769 Sprocket (OBSOLETE) 1
24 175-2770 24V drive motor (OBSOLETE) 1 (includes 26-27)
25 175-2601 Square keyway 1
26 275-5751 Carbon brush cap 4
27 175-2773 Carbon brush (sold individually) 4
28 999-0170 Nut 3/8-16 hex plain finish 5
29 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 2
30 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 2
31 999-0170 Nut 3/8-16 hex plain finish 1
32 175-2774 Wheel bracket 1
33 999-0170 Nut 3/8-16 hex plain finish 1
34 175-2775 Wheel 4 x 1 3/8 inch 1
35 999-0181 Nut 1/4-20 hex jam plain finish 6
36 175-2778 Guide bracket 1
37 999-0553 Washer 5/16 medium split lock stainless steel 2
38 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
39a 991-0101 Chain (sold by the link) 62 (OEM)
39b 991-0103 Master link 1 (NON-OEM)
40 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 6
41 999-0553 Washer 5/16 medium split lock stainless steel 6
42 175-2780 Drive wheel sprocket 1
43 175-2781 Wheel bearing 2
44 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 2
45 175-2782 8 inch drive wheel 1
46 175-2783 Drive wheel shaft 1
47 175-2784 Axle clamp 2
48 999-0034 Washer 3/8 split lock plain finish 4
49 999-0050 Nut 1/2-13 hex jam plain finish 1
50 275-5752 Sleeve 1
51 999-0657 Bolt 1/2-13 x 2 18-8 hex head stainless steel 1
52 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 5
53 999-0016 Washer 1/4 flat plain finish 8
54 175-2786 Connection board 1
55 999-0015 Nut 1/4-20 k-lock zinc plated 2
56 175-2787 Lifting arm 1
57 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
58 999-0632 Washer 1/4 split lock stainless steel 2
59 999-1119 Washer 1/4 x 1 fender zinc plated 2
60 175-2788 Lift arm pivot pin 1
61 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
62 175-2743 Sleeved bushing 1
63 999-0126 Washer 1/2 split lock 1
64 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 1
65 175-2745 Non-slip pad 1
66 999-0632 Washer 1/4 split lock stainless steel 6
67 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 1
68 999-0617 Washer 3/8 x 1 flat stainless steel 2
