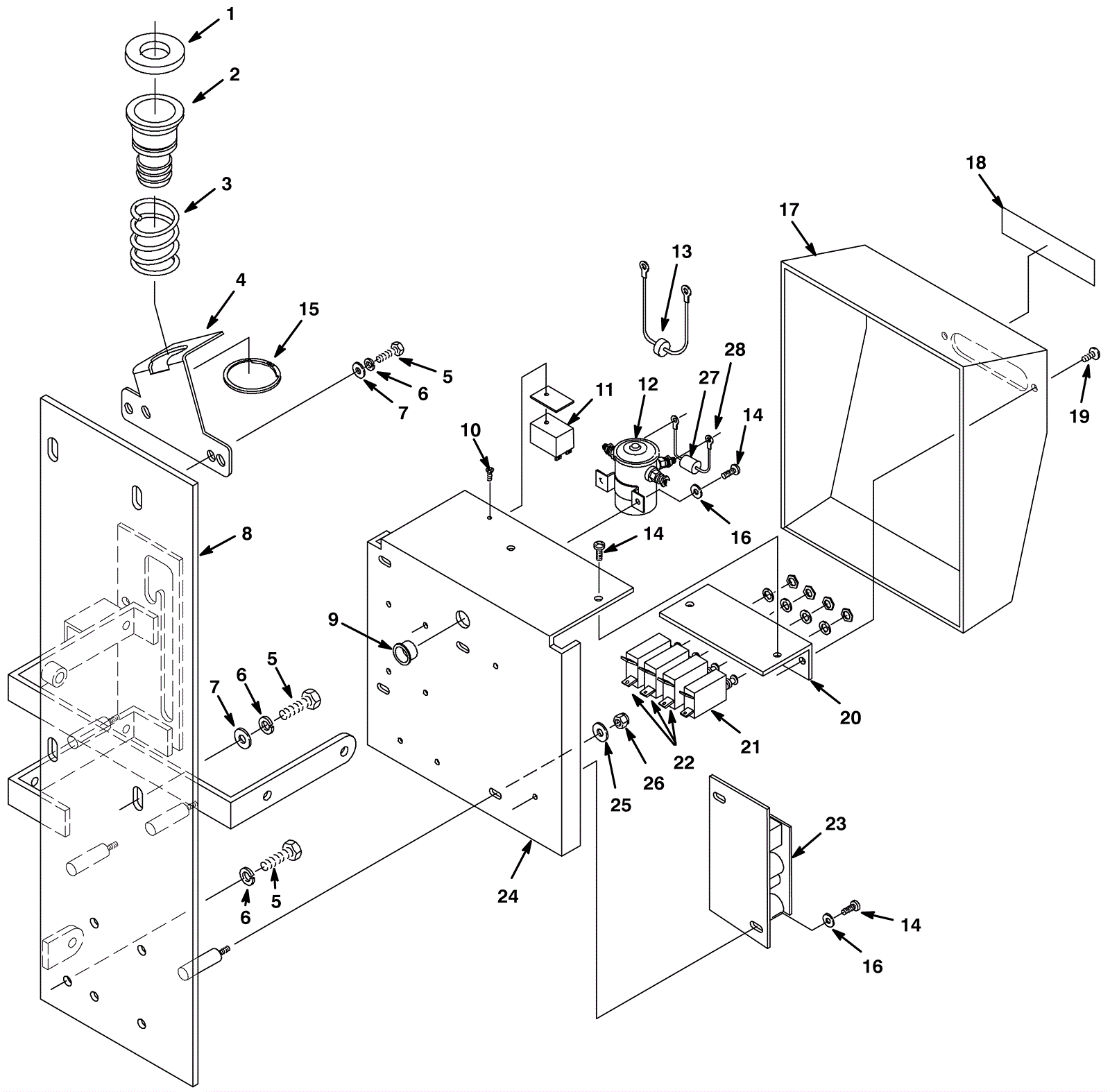

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
175-3635
|
Transition tube |
1 |
|
|
4 |
175-3636
|
Vacuum tube bracket |
1 |
|
|
5 |
999-0900
|
Screw M8-1.25 x 18mm hex head stainless steel |
5 |
|
|
6 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
5 |
|
|
7 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
8 |
175-2742
|
Rear weldment panel |
1 |
|
|
11 |
175-2756
|
24V flasher |
1 |
|
|
12 |
175-2023
|
24V solenoid contactor |
3 |
|
|
13 |
175-1182
|
Diode with ring terminals (large) |
1 |
|
|
17 |
175-2758
|
Electrical panel cover |
1 |
|
|
18 |
175-2759
|
Circuit breaker decal |
1 |
|
|
21 |
175-2761
|
10amp circuit breaker |
1 |
|
|
23 |
175-2763
|
Speed control assembly (OBSOLETE) |
1 |
|
|
27 |
175-2757
|
Diode with ring terminals (small) |
3 |
|
|
28 |
175-0924
|
#10 ring terminal |
6 |
|
|
