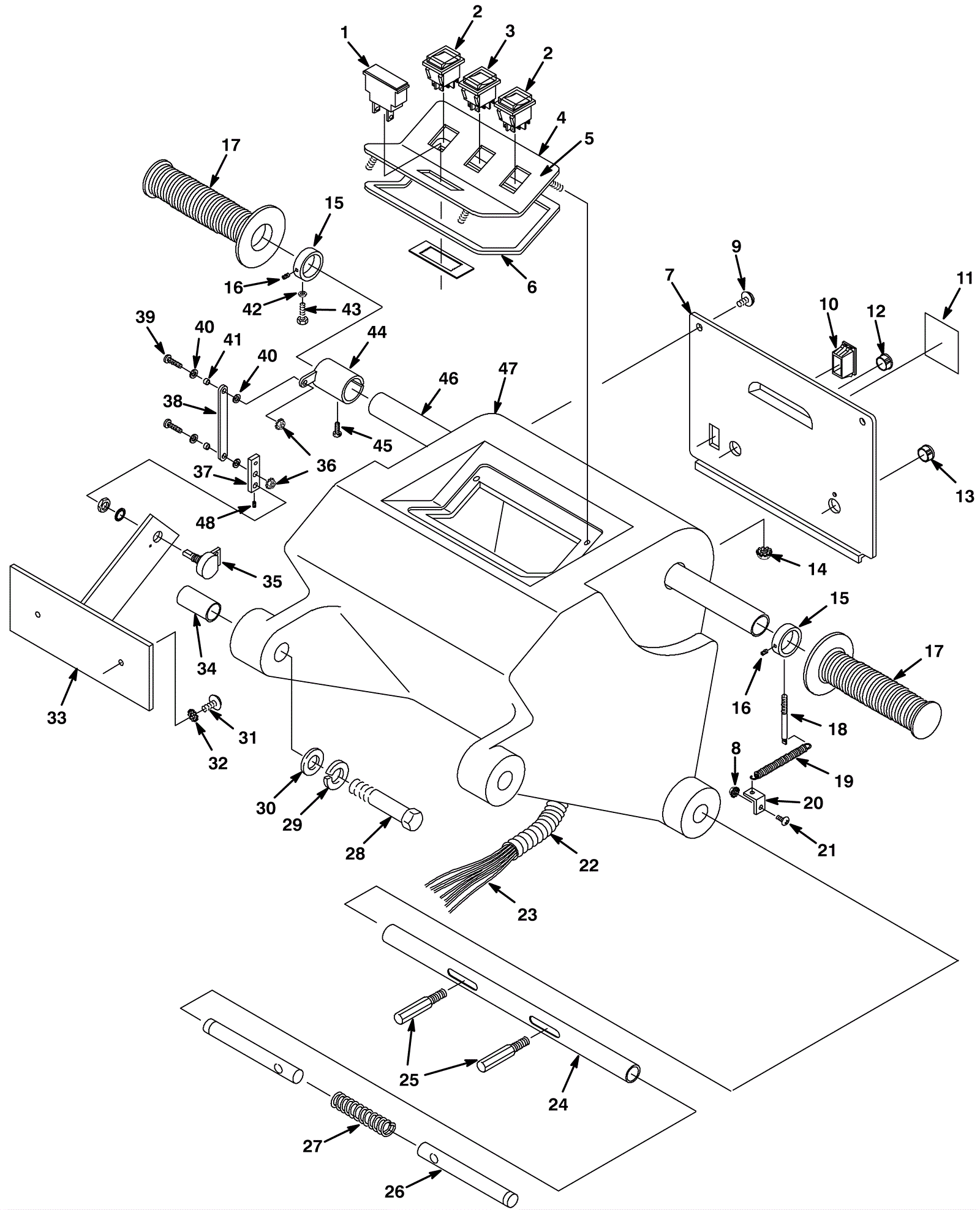

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-2691
|
Battery voltage meter |
1 |
|
|
2 |
N/A
|
Not available |
2 |
(main and brush) (rocker switch) |
|
3 |
175-2693
|
Rocker switch |
1 |
(vacuum) |
|
4 |
175-2694
|
Console panel (black) |
1 |
|
|
5 |
175-2695
|
Console decal (OBSOLETE) |
1 |
|
|
6 |
175-2696
|
Console gasket |
1 |
|
|
7 |
175-2697
|
Rear cover panel (OBSOLETE) |
1 |
|
|
8 |
999-0356
|
Nut 10-24 lock stainless steel |
1 |
|
|
9 |
999-0999
|
Screw 10-24 x 3/8 truss head phillips stainless steel |
2 |
|
|
10 |
175-2698
|
Switch plug |
1 |
|
|
11 |
175-2649
|
Do not spray decal |
1 |
|
|
12 |
175-2700
|
Plug |
1 |
|
|
13 |
175-2701
|
Plug |
1 |
|
|
14 |
999-0356
|
Nut 10-24 lock stainless steel |
4 |
|
|
15 |
175-2702
|
Handle collar |
2 |
|
|
16 |
999-0096
|
Screw 1/4-20 x 1/4 cup point socket set plain finish |
2 |
|
|
17a |
675-9894
|
Handle grip |
2 |
(OEM) |
|
17b |
991-8571
|
Handle grip |
2 |
(NON-OEM) |
|
18 |
175-2704
|
Spring return pin (OBSOLETE) |
1 |
|
|
19 |
175-2705
|
Roll throttle spring (OBSOLETE) |
1 |
|
|
20 |
175-2706
|
Spring bracket |
1 |
|
|
21 |
999-1028
|
Screw 10-24 x 3/4 truss head phillips stainless steel |
1 |
|
|
22 |
175-2707
|
Loom wrap |
1 |
|
|
23 |
175-2708
|
Housing harness |
1 |
|
|
24 |
175-2709
|
Handle adjustment tube |
1 |
|
|
25 |
175-2710
|
Handle adjustment pin |
2 |
|
|
26 |
175-2711
|
Handle adjustment locking pin |
2 |
|
|
27 |
175-2712
|
Spring |
1 |
|
|
28 |
999-0619
|
Screw 10-24 x 3/4 truss head slotted stainless steel |
2 |
|
|
29 |
999-0126
|
Washer 1/2 split lock |
2 |
|
|
30 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
31 |
999-0557
|
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
2 |
|
|
32 |
999-1024
|
Washer 1/4 external tooth lock stainless steel |
2 |
|
|
33 |
175-2713
|
Speed potentiometer bracket |
1 |
|
|
34 |
175-2714
|
Bushing |
2 |
|
|
35 |
175-2715
|
Potentiometer kit (OBSOLETE) |
1 |
|
|
36 |
999-0356
|
Nut 10-24 lock stainless steel |
2 |
|
|
37 |
175-2716
|
Speed potentiometer lever arm |
1 |
|
|
38 |
175-2717
|
Speed potentiometer link |
1 |
|
|
39 |
999-1028
|
Screw 10-24 x 3/4 truss head phillips stainless steel |
2 |
|
|
40 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
41 |
175-2718
|
Bushing (OBSOLETE) |
2 |
|
|
42 |
999-0181
|
Nut 1/4-20 hex jam plain finish |
1 |
|
|
43 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
|
44 |
175-2719
|
Speed potentiometer tube bracket |
1 |
|
|
45 |
999-1195
|
Screw 10-24 x 1 1/4 round head phillips zinc plated |
1 |
|
|
46 |
175-2720
|
Handle tube |
1 |
|
|
47a |
275-5615
|
Control housing (gray) |
1 |
|
|
47b |
175-2721
|
Control housing (green) |
1 |
|
|
47c |
275-5616
|
Control housing (green) (FaST) |
1 |
|
|
48 |
999-0448
|
Screw 10-24 x 1/4 cup point socket set alloy plain finish |
1 |
|
|
