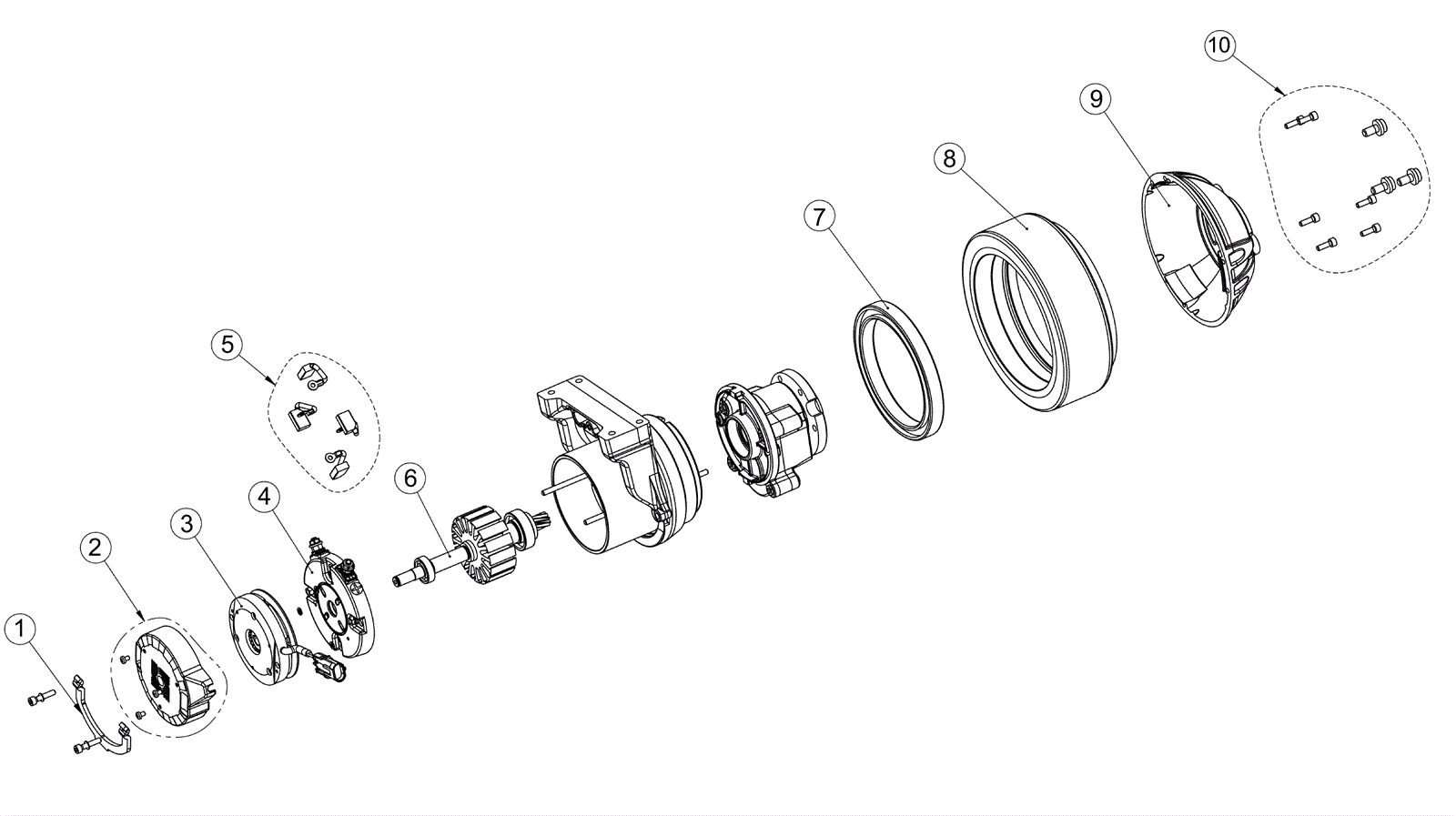

Chassis Drive Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-9799 Brake release lever $29.55 1 ships same day
2 274-9800 Brake cover and screw kit $5.91 1 ships same day
3 274-9833 Drive wheel brake $396.71 1 ships same day
4 274-9801 Carbon brush holder $125.85 1 usually ships 1-5 days
5 274-9794 Spare carbon brush kit (pkg 4) $52.59 1 ships same day
6 274-9802 Rotor Call for price 1 usually ships 1-5 days
7 274-9803 Wheel bearing $106.30 1 usually ships 1-5 days
8 274-9804 Wheel polyurethane $495.64 1 ships same day
9 274-9805 Hub aluminum $30.86 1 usually ships 1-5 days
10 274-9806 Hub and wheel kit $15.08 1 usually ships 1-5 days
N/S 274-9780 Traction encoder $742.35 1 ships same day
