| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

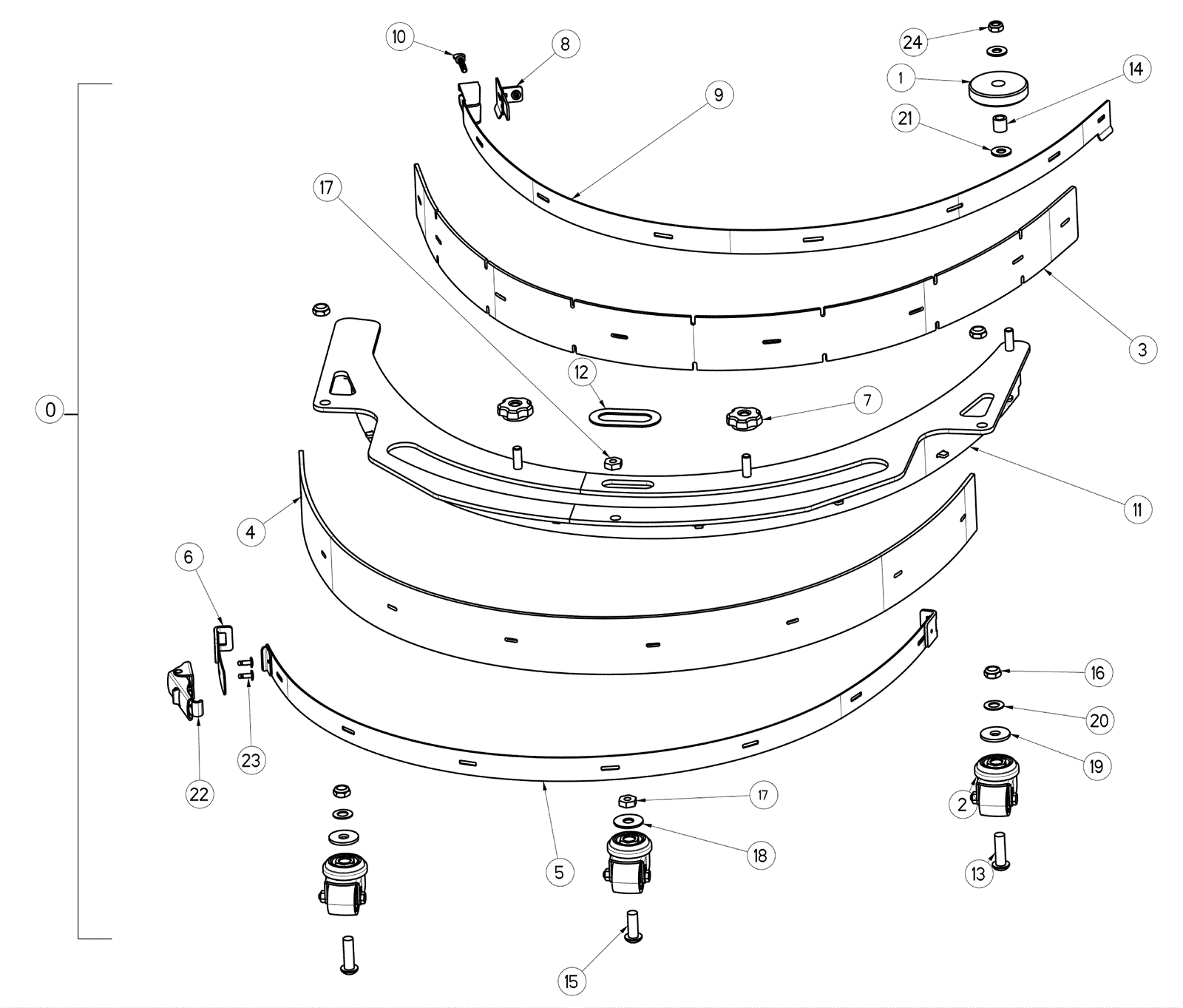

174-4535
|
Squeegee assembly |
1 |
(includes 1-24) |
|
1 |
174-3636
|
Squeegee roller |
1 |
|
|
2 |
174-3637
|
Caster |
3 |
|
|
3 |
174-9157
|
Squeegee blade 20 inch inner |
1 |
|
|
4 |
174-9158
|
Squeegee blade 20 inch outer |
1 |
|
|
5 |
374-3047
|
Squeegee band assembly |
1 |
(includes 6) |
|
6 |
374-3047
|
Squeegee band assembly |
1 |
(includes 5) |
|
7 |
174-4532
|
Knob 5/16-18 fluted stainless steel |
2 |
|
|
8 |
174-3639
|
Left hand inner band weldment |
1 |
|
|
9 |
174-3640
|
Right hand inner band |
1 |
|
|
10 |
174-6644
|
Screw 10-24 x 1 flanged thumb stainless steel |
1 |
|
|
11 |
174-7230
|
20 inch squeegee weldment |
1 |
(Tube for the vacuum recovery hose is no longer on the squeegee weldment and is now on the squeegee mount 174-4534) |
|
12 |
174-6645
|
Squeegee gasket |
1 |
|
|
13 |
999-1911
|
Screw 3/8-16 x 1 1/4 button socket cap |
2 |
|
|
14 |
174-3643
|
Spacer 21/64 x 1/2 x 1/2 stainless steel |
1 |
|
|
15 |
999-0594
|
Screw 3/8-16 x 1 socket head alloy plain finish |
1 |
|
|
16 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
4 |
|
|
17 |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
2 |
|
|
18 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
19 |
174-8169
|
Washer flat .37 x 1.12 x .10 |
2 |
|
|
20 |
174-3203
|
Washer 13/32 x 1/32 flat stainless steel |
2 |
|
|
21 |
174-8251
|
Washer flat stainless steel |
2 |
|
|
22 |
174-3645
|
Under center latch |
1 |
|
|
23 |
174-3646
|
Rivet blind 5/32 x 1/8 grip stainless steel |
2 |
|
|
24 |
999-0430
|
Nut 5/16-18 hex jam plain finish |
1 |
|
|
N/S |
274-9793
|
Inner band kit |
1 |
(includes 8-10) |
|
N/S |
174-4533
|
20 inch squeegee pivot link |
1 |
|
|
N/S |
174-4534
|
20 inch squeegee mount weldment |
1 |
|
|
