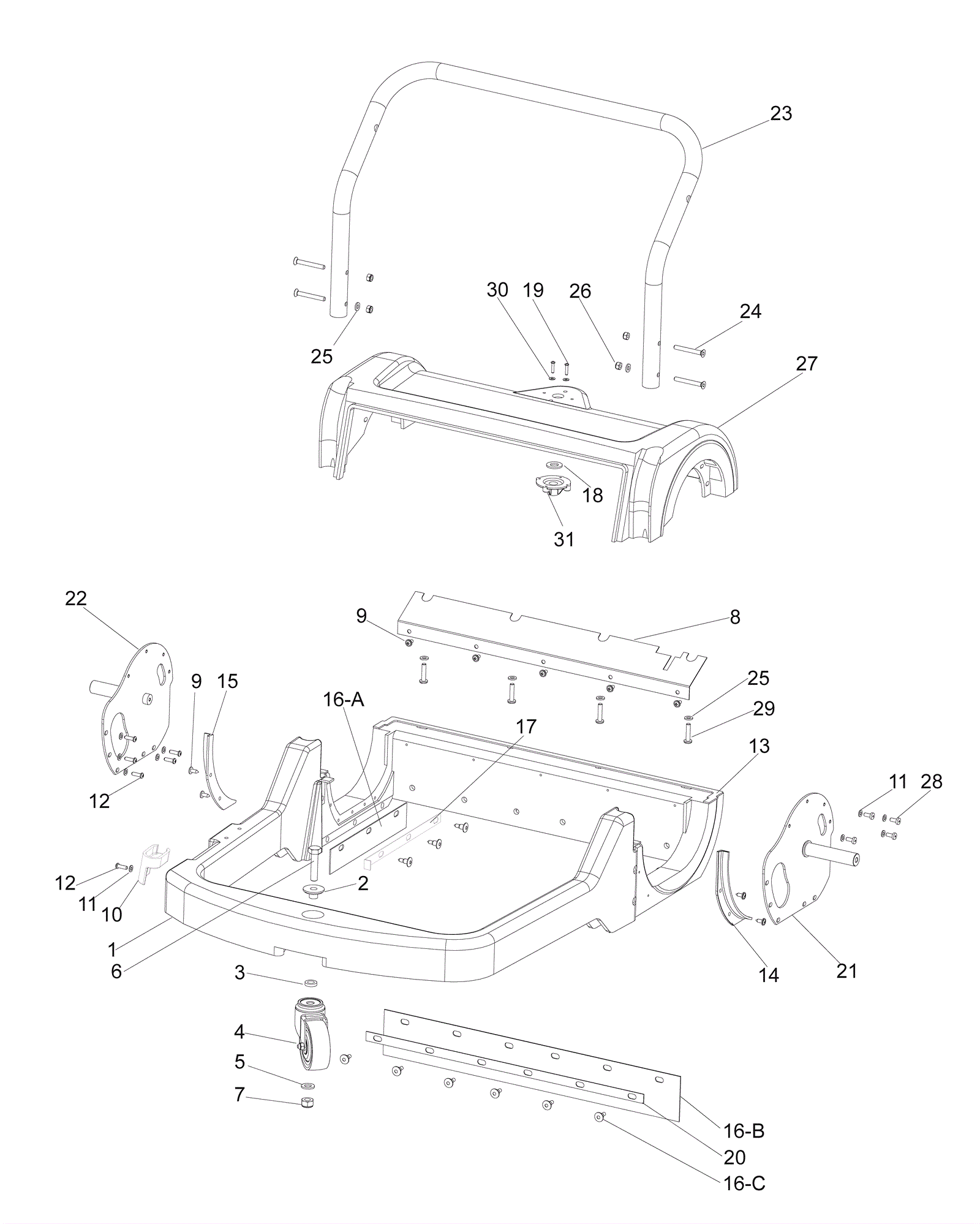

PWRBOSS 26SWEEP Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-8137 FRAME Call for price 1 usually ships 1-5 days
2 274-0501 STEPPED WASHER Call for price 1 usually ships 1-5 days
3 374-1473 WASHER STEEL ? 10.5X18.0X4.0 Call for price 1 usually ships 1-5 days
4 274-6842 CASTOR WHEEL ASSY Call for price 1 usually ships 8-11 days
5 174-9144 Washer M10.5 steel Call for price 1 usually ships 8-11 days
6 374-2099 HEX HEAD SCREW - STEEL 8.8 - M10X45 Call for price 1 usually ships 1-5 days
7 174-9145 Nut M10 hex nylock Call for price 1 usually ships 8-11 days
8 274-3498 SPLASH SHIELD Call for price 1 usually ships 1-5 days
9 374-1477 SELF TAPPING SCREW W/COLLAR ? 4.8X13 Call for price 9 usually ships 1-5 days
10 374-1888 HOLDER SIDE BRUSH ARM Call for price 1 usually ships 1-5 days
11 174-9146 Washer M5.3 steel Call for price 19 usually ships 8-11 days
12 374-1435 SCREW-CRPH SELF TAPPING Call for price 11 usually ships 1-5 days
13 174-9147 Frame gasket Call for price 1 usually ships 8-11 days
14 374-1668 CURVE PLATE LH Call for price 1 usually ships 1-5 days
15 374-1669 CURVE PLATE RH Call for price 1 usually ships 1-5 days
16 274-2984 RUBBER STRIP KIT Call for price 1 usually ships 1-5 days
17 274-0443 SIDE STRIP HOLDER Call for price 2 usually ships 1-5 days
18 374-1447 WASHER SS 304 12.5X24X2 Call for price 1 usually ships 1-5 days
19 374-1497 CRPH SELF TAPPING SCREW ? 3.5X16 Call for price 2 usually ships 1-5 days
20 374-2882 REAR STRIP HOLDER Call for price 1 usually ships 1-5 days
21 274-5611 SIDE PLATE GROUP LH Call for price 1 usually ships 1-5 days
22 274-5612 SIDE PLATE GROUP RH Call for price 1 usually ships 1-5 days
23 274-5748 HANDLE Call for price 1 usually ships 1-5 days
24 274-0009 HEX SOC CSK HEAD SCREW- STEEL ? M6X45 Call for price 4 usually ships 1-5 days
25 374-1442 WASHER STEEL - 6.4X12.5X1.6 Call for price 8 usually ships 1-5 days
26 374-1455 HEX NYLOCK NUT-STEEL GR.8 -M6 -LOW Call for price 4 usually ships 1-5 days
27 274-7217 COVER Call for price 1 usually ships 1-5 days
28 174-9148 Screw M5x12mm pan head stainless steel Call for price 8 usually ships 8-11 days
30 374-1441 WASHER STEEL - 4.3X9.0X0.8 Call for price 2 usually ships 1-5 days
31 374-1867 BOTTOM COVER THREAD ROD Call for price 1 usually ships 1-5 days
