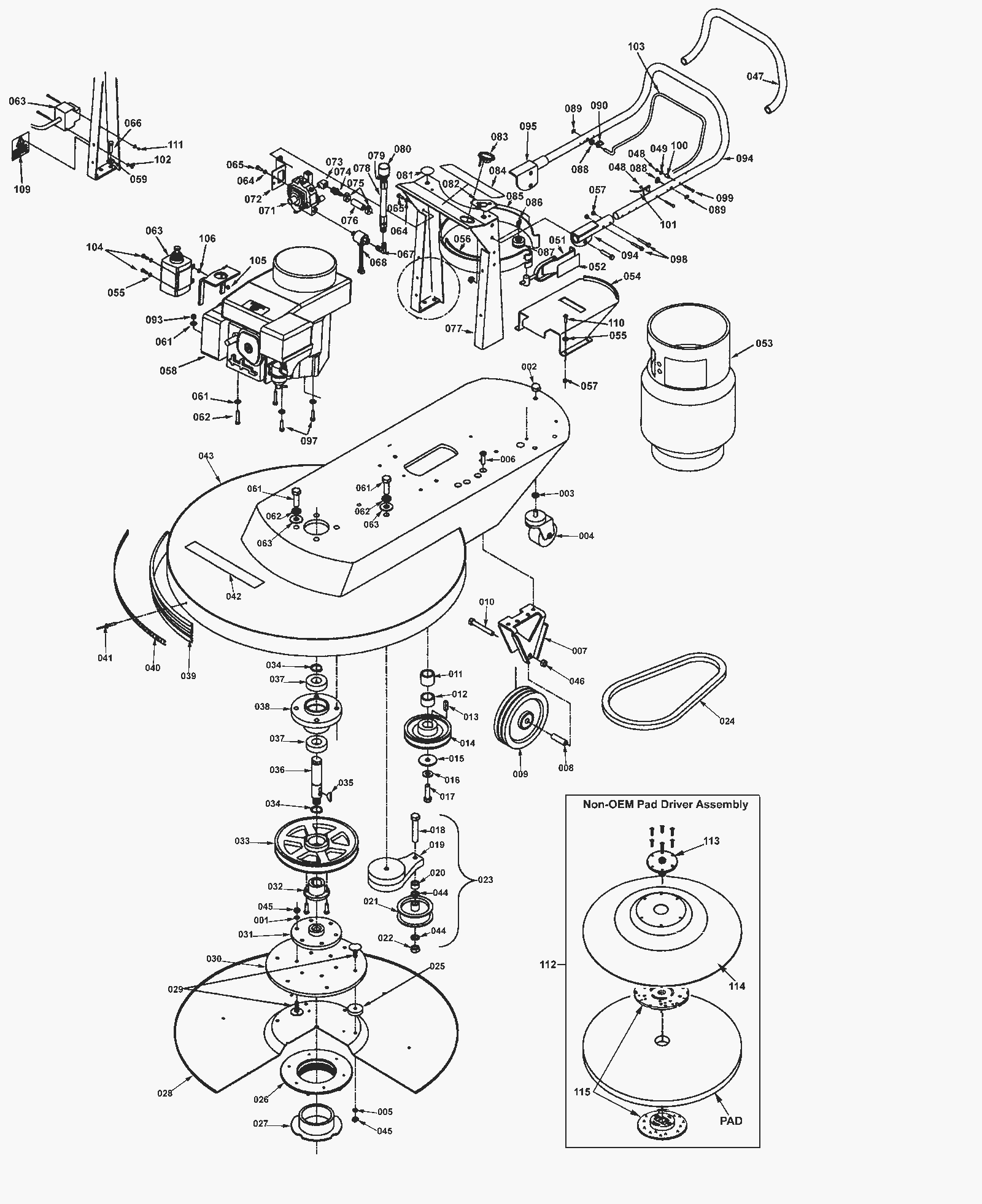

Frame Assembly

#PartDescription ReqNotesAvailability
001 999-0028 Washer 5/16 split lock plain finish 6
002 999-0234 Nut 3/8-16 acorn nickel plated 1
003 999-0034 Washer 3/8 split lock plain finish 1
004 174-5336 Caster wheel 1
005 999-0024 Washer 5/16 flat stainless steel 6
006 999-0536 Screw 5/16-18 x 1 flat head socket plain finish 4
007 174-8140 Wheel bracket weldment 2
008 174-5339 Bushing 2
009 174-8141 Wheel 6 inch 2
010 999-0352 Bolt 3/8-16 x 2 3/4 hex head grade 5 zinc plated 2
011 174-1348 Spacer 1
012 174-1349 Spacer 1
013 174-0036 Square keyway 1
014 174-1350 Pulley 1
015 174-5343 Area washer 1
016 174-5344 Washer 7/16 belleville 1
017 999-0208 Bolt 7/16-20 x 1 1/2 hex head grade 5 zinc plated 1
018 999-0929 Bolt 1/2-13 x 2 3/4 hex head 1
019 174-5346 Rotary tensioner 1
020 174-5099 Spacer 1
021 174-5347 Belt idler with bushing 1
022 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
023 174-5348 Belt tensioner assembly 1
024 991-0016 BX44 Belt 1
025 174-5351 Gimbal spacer 6 OEM
026 174-5017 Center cup 1 OEM
027 174-5016 Center cup retainer (new style) 1 OEM
028 174-1352 Pad driver 21 inch 1 OEM
029 174-5354 Bolt 5/16 x 1.12 special elevator 12 OEM
030 174-5355 Gimbal 1 OEM
031 174-5356 Adapter 1 OEM
032 174-5359 Split tapered bushing 25mm 1
033 174-5360 Pulley 1
034 174-5362 Retaining ring 2
035 174-5363 Keyway woodruff 5/16 x 1 1
036 174-5364 Pad drive shaft driver 1
037 174-5365 Bearing 2
038 174-5366 Bearing housing 1
039 174-1354 Skirt 21 inch 1
040 174-1355 Skirt retainer 21 inch 1
041 174-1356 Pop rivet 12
042 174-8011 Minuteman decal 1
043 174-1357 Casting 21 inch 1
044 174-0979 Special washer 2
045 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12
046 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
047 174-5323 Handle sleeve 1
048 999-0442 Nut 10-24 nylon insert lock stainless steel 2
049 999-0006 Washer 3/16 flat zinc plated 4
050 999-0146 Screw 10-24 x 1 1/2 round head slotted zinc plated 2
051 154-0005 Propane tank strap 1
052 174-5420 Decal- propane warning 1
053 154-1065 Steel propane tank 1
054 174-5331 Battery cover weldment 1
055 999-0016 Washer 1/4 flat plain finish 4
056 174-5332 Felt 2 x 10 2
057 999-0190 Nut 1/4-20 hex plain finish 8
058 174-8130 Engine 13HP honda 1
059 999-0120 Washer 3/8 SAE flat 4
061 999-0024 Washer 5/16 flat stainless steel 6
062 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 2
063 174-8131 Starter assembly 1
064 999-0060 Washer 1/4 split lock plain finish 4
065 174-5718 Bolt 1/4 20 x 5/8 hex head 4
066 174-1378 Bolt 3/8-16 x 1 1/4 hex head #5 4
067 174-0221 1/4 brass fitting 1
068 174-1367 Electric lockoff assembly 1
071 174-8110 Regulator assembly 1
072 174-1369 Regulator bracket 1
073 174-1381 Elbow 45 3/8 MPT x 1/8 FPT 1
074 174-0094 Hose barb 1
075 997-2001 Hose clamp 2
076 174-8132 Fuel hose 3/8 ID x 30 inch 1
077 174-1513 Tank frame weldment 1
078 174-5003 High pressure hose 1
079 174-1382 Elbow 45 degrees male 1/4 x 3/8 1
080 174-5399 Female safety connector 1
082 174-5413 Decal- ignition switch 1
083 174-6297 Hour meter 1
084 174-5414 Dashboard-decal 1
085 174-5415 Decal- propane warning 1
086 991-1901 Key 2
087 154-0319 Starter switch with ground prong (2 keys) 1
088 174-3040 Nylon flanged bushing 2
089 174-2104 Retaining ring 2
090 174-5023 Torsion spring 1
093 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
094 174-8134 Handle bracket left hand 1
095 174-8135 Handle bracket right hand 1
097 999-1194 Screw 5/16-24 x 1 1/4 hex head stainless steel 2
098 174-1944 Bold hex head 1/4 - 20 x 1 5/8 4
099 174-8136 Screw 10-24 x 1 3/4 stainless steel 2
100 174-8137 Spacer .19 x .37 x .47 1
101 174-5001 Bail-style Kaw throttle cable 1
102 174-5232 Washer #6 internal tooth locking 2
103 174-5419 Switch bail 1
104 174-8138 Bolt MM6 x 1.0 x 20 mm hex head 4
105 999-0439 Nut M6-1 hex coarse thread 2
106 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
109 174-8139 Decal GFCI warning 1
110 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
111 999-0195 Nut 6-32 hex plain 2
112 252-9002 21 inch pad driver assembly flex 1 (NON-OEM)
113 252-1390 Shaft plate flex 1 (NON-OEM)
114 252-0281 21 inch pad driver with thread hub 1 (NON-OEM)
115 991-2206 Center-Lok 3 pad holder 1 (NON-OEM)
N/S 174-1380 Elbow 90 1/8 MPT x 1/8 FPT 1
N/S 174-1379 Hose barb 1/8 x 1/8 NPT 1
N/S 174-0979 Special washer 2
N/S 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
N/S 999-0488 Nut 3/8-16 flange lock serrated zinc plated 4
N/S 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4
N/S 174-8133 Handle 1
