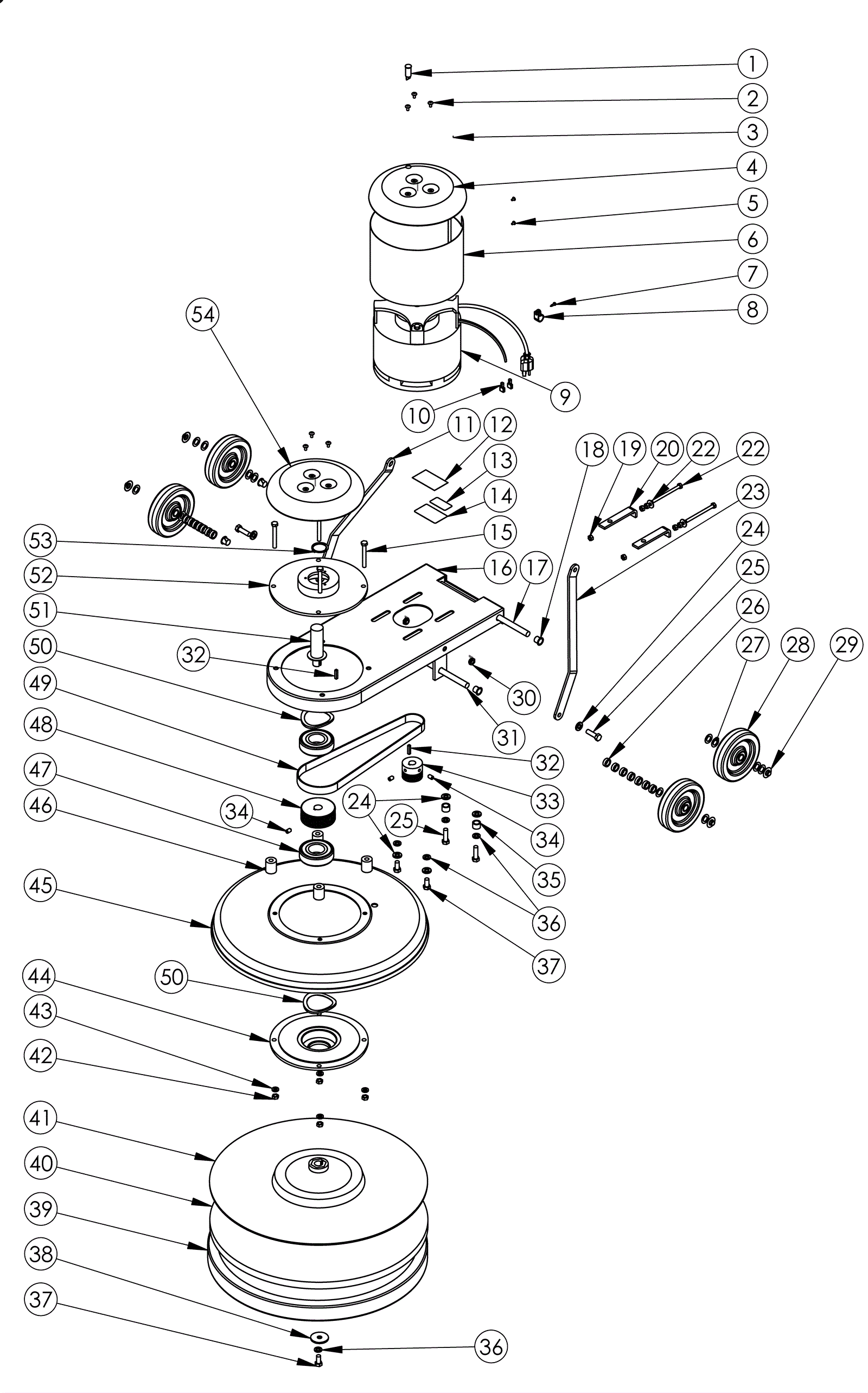

FRONT RUNNER 1500 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 221-0121 Indicator light with green lens $7.24 1 usually ships 3-18 days
4 174-9691 Drip cover $65.84 1 usually ships 4-14 days
6 221-0077 Cord clamp assembly $1.09 1 usually ships 1-5 days
7 221-0397 Motor $913.88 1 usually ships 3-18 days
8 221-0077 Cord clamp assembly $1.09 1 usually ships 1-5 days
9 221-0397 Motor $913.88 1 usually ships 3-18 days
10 174-4204 Female terminal lug $0.90 2 usually ships 4-14 days
11 221-0404 Left side handle brace $24.59 1 usually ships 1-5 days
12 221-0264 Serial tag cover $1.09 1 usually ships 1-5 days
13 174-4203 Decal $1.20 1 usually ships 4-14 days
14 221-0242 Serial number decal (OBSOLETE) $4.50 1 usually ships 1-5 days
15 999-0730 Bolt 5/16-18 x 2 1/2 hex head grade 5 zinc plated $0.99 4 ships same day
16 221-0403 Motor frame $112.77 1 usually ships 1-5 days
17 221-0406 Handle axle $9.10 1 usually ships 1-5 days
18 203-5714 1/2 inch Nylon bushing $2.88 4 usually ships 5-15 days
19 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
20 221-0389 Tension adjustment bracket $1.09 2 usually ships 1-5 days
21 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
22 999-0912 Bolt 1/4-20 x 3 1/2 18-8 hex head stainless steel $1.27 2 ships same day
23 221-0399 Right side handle brace $24.59 1 usually ships 1-5 days
24 221-0387 Washer 3/8 $1.09 6 usually ships 3-18 days
25 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel $1.72 4 ships same day
26 221-0388 Spacer $1.09 14 usually ships 1-5 days
27 999-0588 Washer 7/8 flat stainless steel $11.44 12 ships same day
28 221-0324 5 inch wheel $88.86 4 ships same day
29 221-0248 Nut 1/2 inch $1.89 4 ships same day
30 221-0318 Locking nut $1.09 2 ships same day
31 221-0405 Wheel axle $10.79 1 usually ships 3-18 days
32 221-0313 Square keyway $3.95 2 usually ships 1-5 days
33 221-0392 2 inch pulley $40.03 1 usually ships 1-5 days
34 221-0393 Screw 5/16 set $1.09 3 usually ships 1-5 days
35 174-4202 Spacer $1.90 2 usually ships 4-14 days
36 999-0659 Washer 3/8 medium split lock stainless steel $0.39 5 ships same day
37 221-0391 Bolt 3/8 x 3/4 $1.09 3 usually ships 1-5 days
38 221-0395 Washer 1 3/4 stainless steel $3.63 1 usually ships 1-5 days
39 221-0385 20 inch bumper $107.65 1 usually ships 3-18 days
40 174-4201 20 inch high speed pad (pkg of 5) $39.09 1 usually ships 4-14 days
41 221-0394 20 inch pad driver $183.81 1 usually ships 3-18 days
43 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
44 221-0401 Bearing plate $38.94 1 usually ships 3-18 days
45 174-9692 20 inch brush cover $256.82 1 usually ships 4-14 days
46 221-0375 Spacer $5.37 4 usually ships 1-5 days
47 221-0310 Bearing $30.28 2 usually ships 3-18 days
48 221-0408 3 7/8 inch pulley $82.73 1 usually ships 1-5 days
49 221-0316 Drive belt $47.45 1 usually ships 3-18 days
50 221-0402 Wave washer $5.40 2 usually ships 1-5 days
51 221-0311 Shaft $102.49 1 usually ships 1-5 days
52 221-0401 Bearing plate $38.94 1 usually ships 3-18 days
53 221-0398 Retaining ring $1.84 1 usually ships 1-5 days
54 221-0400 Drip cover (black) $22.51 1 usually ships 1-5 days
