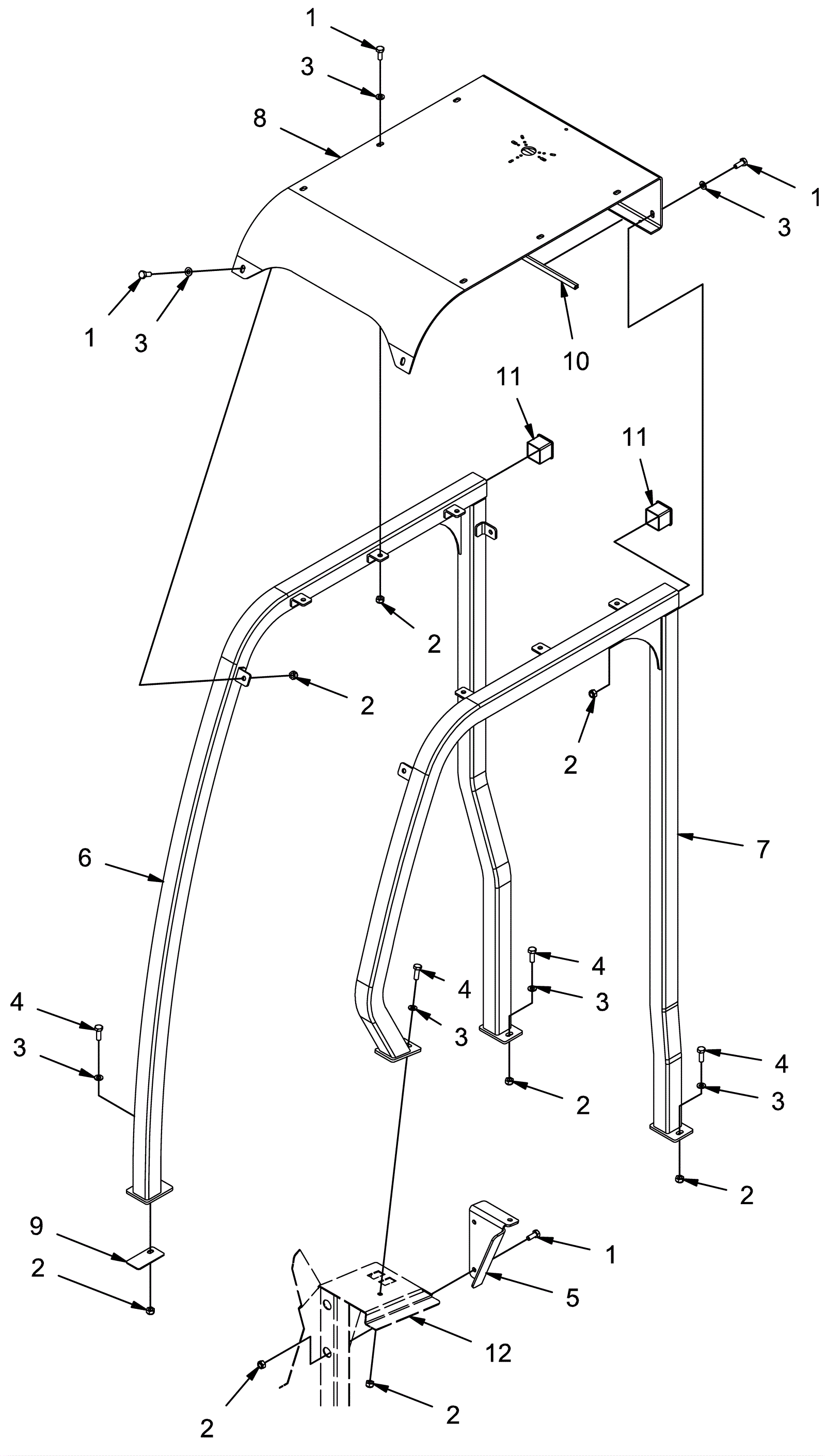

PowerBoss Nautilus Overhead Guard Assembly-Optional

#PartDescriptionPriceReqNotesAvailability
1 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 12 ships same day
2 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 16 ships same day
3 174-8888 Washer $5.13 14 usually ships 12-16 days
4 374-1639 SCR-M10-1.5 X 30 HEX HEAD GR 8.8 Call for price 4 usually ships 1-5 days
5 374-4506 Overhead guard bracket Call for price 1 usually ships 1-5 days
6 374-4507 Right hand side weldment Call for price 1 usually ships 1-5 days
7 374-4508 Left hand side weldment Call for price 1 usually ships 1-5 days
8 374-4509 Top plate Call for price 1 usually ships 1-5 days
9 374-4510 Spacer plate Call for price 1 usually ships 1-5 days
10 374-4511 Edging Call for price 1 usually ships 1-5 days
11 374-4512 Tubing plug Call for price 2 usually ships 1-5 days
12 N/A Not available Call for price (console) (for reference only) usually ships 3-26 days
