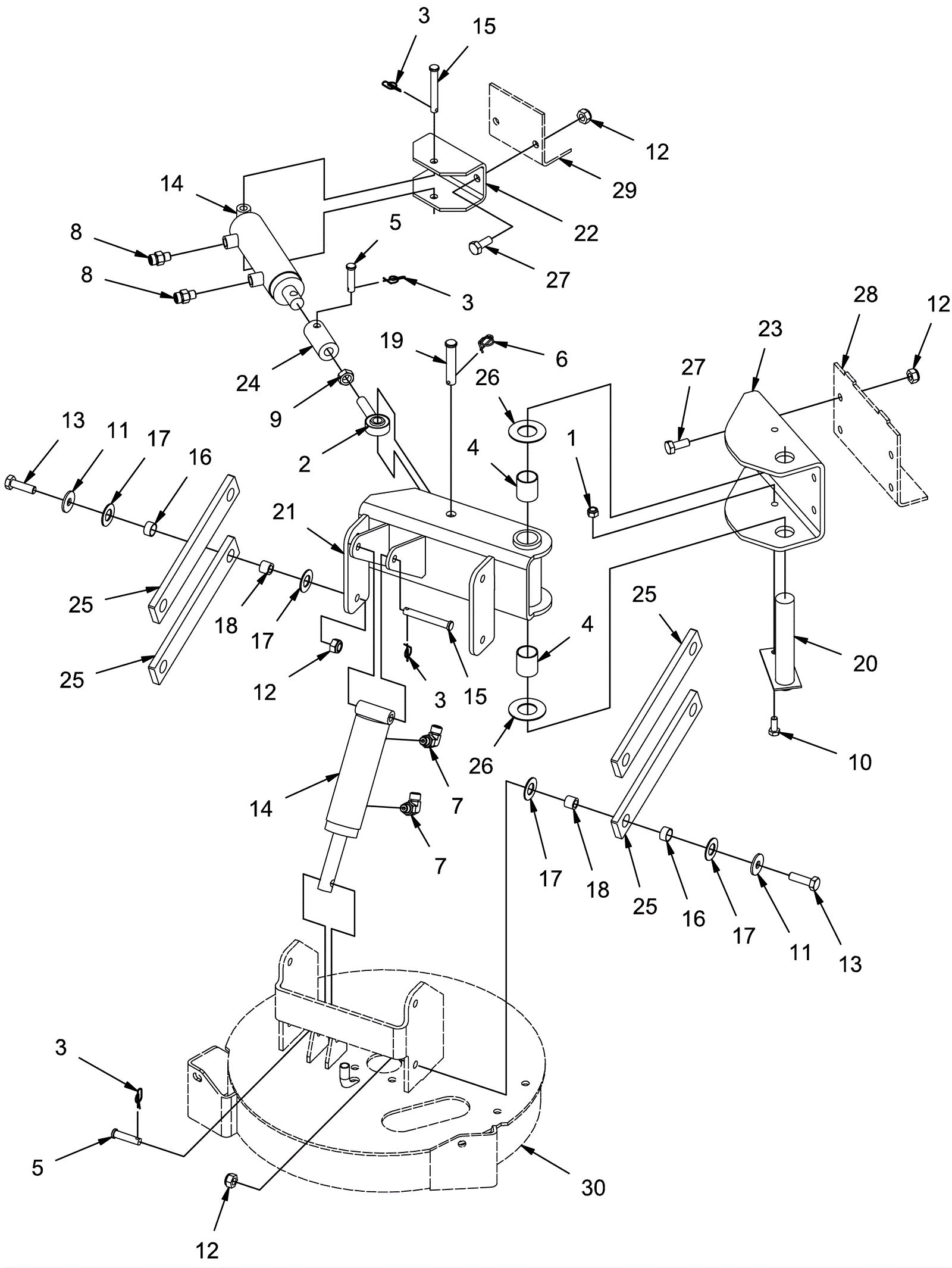

PowerBoss Nautilus Side Brush Lift Assembly-Optional

#PartDescriptionPriceReqNotesAvailability
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
2 374-4477 Male rod end Call for price 1 usually ships 1-5 days
3 174-1578 3/8 rue ring cotter pin $1.81 4 ships same day
4 374-4478 Fiberglide bearing Call for price 2 usually ships 1-5 days
5 374-3935 Clevis pin Call for price 2 usually ships 1-5 days
6 174-7161 Cotter pin $1.20 1 usually ships 1-5 days
7 374-3936 Fitting Call for price 2 usually ships 1-5 days
8 374-3790 Fitting Call for price 2 usually ships 1-5 days
9 374-1122 NUT-HEX 1/2-20 ST PL $0.97 1 usually ships 1-5 days
10 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 1 ships same day
11 174-7186 Washer 10 1/2 x 30 x 2 1/2 flat stainless steel $0.75 8 ships same day
12 999-6697 Nut M10-1.5 hex stainless steel $1.01 14 ships same day
13 999-1557 Bolt M10-1.5 x 45mm hex head stainless steel $3.37 8 usually ships 1-5 days
14 374-3941 Hydraulic cylinder Call for price 2 usually ships 1-5 days
15 374-4133 Clevis pin Call for price 2 usually ships 1-5 days
16 374-4011 Bearing Call for price 8 usually ships 1-5 days
17 374-4012 Thrust washer Call for price 16 usually ships 1-5 days
18 374-4013 Spacer Call for price 8 usually ships 1-5 days
19 174-0337 Clevis pin $5.60 1 usually ships 1-5 days
20 374-4479 Pin weldment Call for price 1 usually ships 1-5 days
21 374-4480 Arm weldment Call for price 1 usually ships 1-5 days
22 374-4481 Cylinder mount Call for price 1 usually ships 1-5 days
23 374-4482 Mount Call for price 1 usually ships 1-5 days
24 374-4483 Adjustment tube Call for price 1 usually ships 1-5 days
25 374-4484 Link Call for price 4 usually ships 1-5 days
26 374-4485 Thrust washer Call for price 2 usually ships 1-5 days
27 174-3661 Hex head screw #M10-1.50 x 25 stainless steel $4.06 6 ships same day
28 N/A Not available Call for price (frame) (for reference only) usually ships 3-26 days
29 N/A Not available Call for price (frame) (for reference only) usually ships 3-26 days
30 N/A Not available Call for price (mount) (for reference only) usually ships 3-26 days
