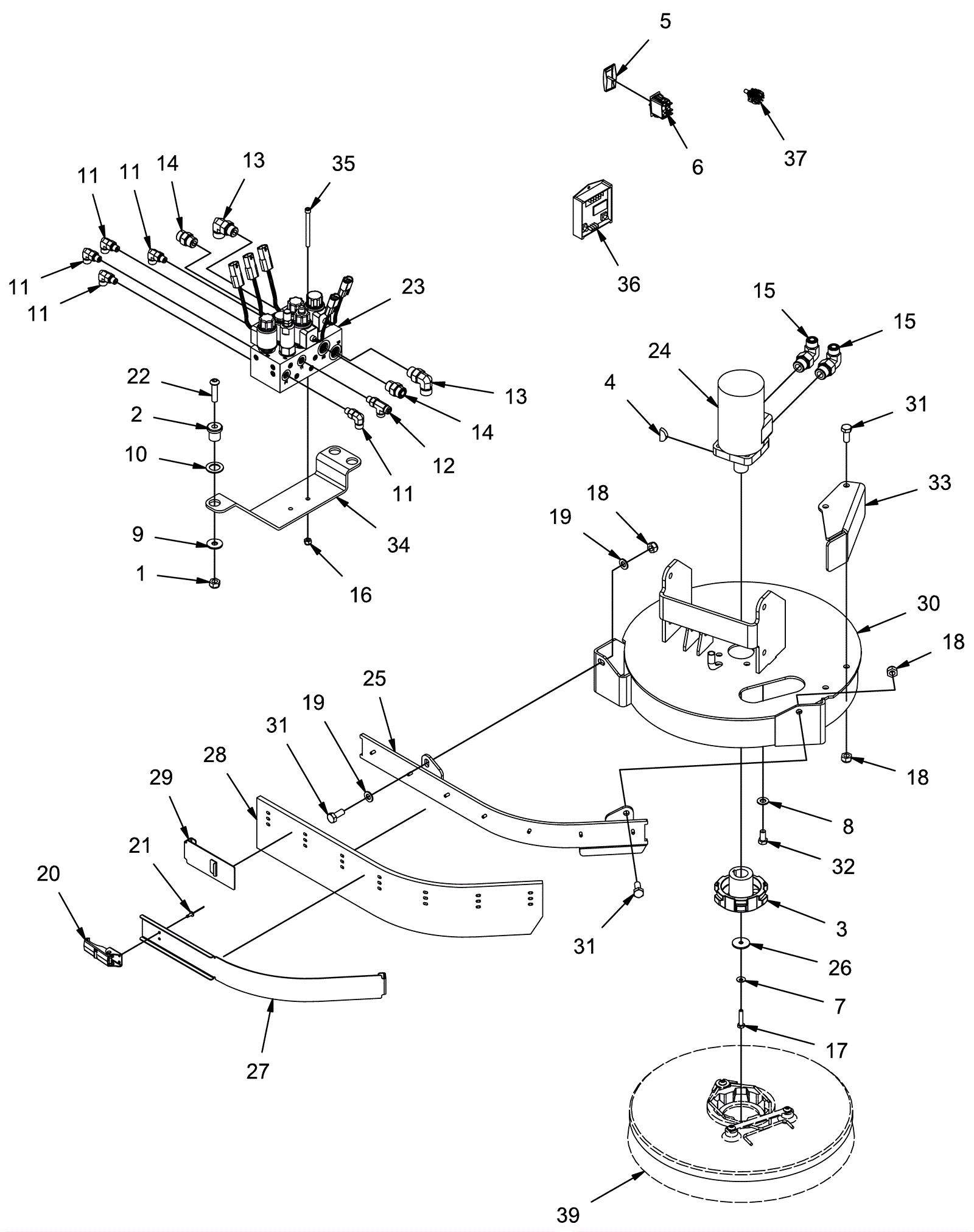

PowerBoss Nautilus Side Brush Assembly-Optional

#PartDescriptionPriceReqNotesAvailability
1 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 3 ships same day
2 374-3901 Isolator Call for price 3 usually ships 1-5 days
3 174-7135 Driver Call for price 1 usually ships 1-5 days
4 374-3913 Woodruff key Call for price 1 usually ships 1-5 days
5 374-3825 Switch cover Call for price 1 usually ships 1-5 days
6 374-3826 Switch Call for price 1 usually ships 1-5 days
7 374-0938 WASHER-CONICAL SPRING 1/4 $0.97 1 usually ships 12-16 days
8 374-0940 WASHER-CONICAL SPRING 3/8 Call for price 4 usually ships 1-5 days
9 374-3903 Isolator washer Call for price 3 usually ships 1-5 days
10 174-1792 Special washer $1.32 3 usually ships 1-5 days
11 374-3936 Fitting Call for price 5 usually ships 1-5 days
12 374-4179 Fitting Call for price 1 usually ships 1-5 days
13 374-3917 Fitting Call for price 2 usually ships 1-5 days
14 374-4163 Fitting Call for price 2 usually ships 1-5 days
15 374-4201 Fitting Call for price 2 usually ships 1-5 days
16 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
17 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 1 ships same day
18 999-6697 Nut M10-1.5 hex stainless steel $1.01 4 ships same day
19 999-9099 Washer M10 flat stainless steel $0.99 2 ships same day
20 174-3645 Under center latch $41.21 1 ships same day
21 174-3646 Rivet blind 5/32 x 1/8 grip stainless steel $1.08 2 ships same day
22 374-4208 Bolt M10-1.50 x 40 button head cap Call for price 3 usually ships 1-5 days
23 374-4466 Manifold Call for price 1 usually ships 1-5 days
24 374-4467 Motor Call for price 1 usually ships 1-5 days
25 374-4468 Squeegee mount weldment Call for price 1 usually ships 1-5 days
26 374-4469 Washer Call for price 1 usually ships 1-5 days
27 274-9936 Squeegee retainer $100.10 1 usually ships 1-5 days
28 274-9937 Squeegee blade linatex $63.51 1 usually ships 1-5 days
29 374-4470 Rear retainer weldment Call for price 1 usually ships 1-5 days
30 374-4471 Mount weldment Call for price 1 usually ships 1-5 days
31 174-3661 Hex head screw #M10-1.50 x 25 stainless steel $4.06 4 ships same day
32 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 4 ships same day
33 374-4472 Guard weldment Call for price 1 usually ships 1-5 days
34 374-4473 Manifold mount Call for price 1 usually ships 1-5 days
35 999-0653 Screw 1/4-20 x 3 socket head alloy plain finish $0.99 2 ships same day
36 374-4474 Double proportional valve driver Call for price 1 usually ships 1-5 days
37 374-4475 Dual brush pressure selector Call for price 1 usually ships 1-5 days
39 N/A Not available Call for price (scrub brush) (for reference only) usually ships 3-26 days
N/S 374-4476 Side brush harness Call for price 1 usually ships 1-5 days
