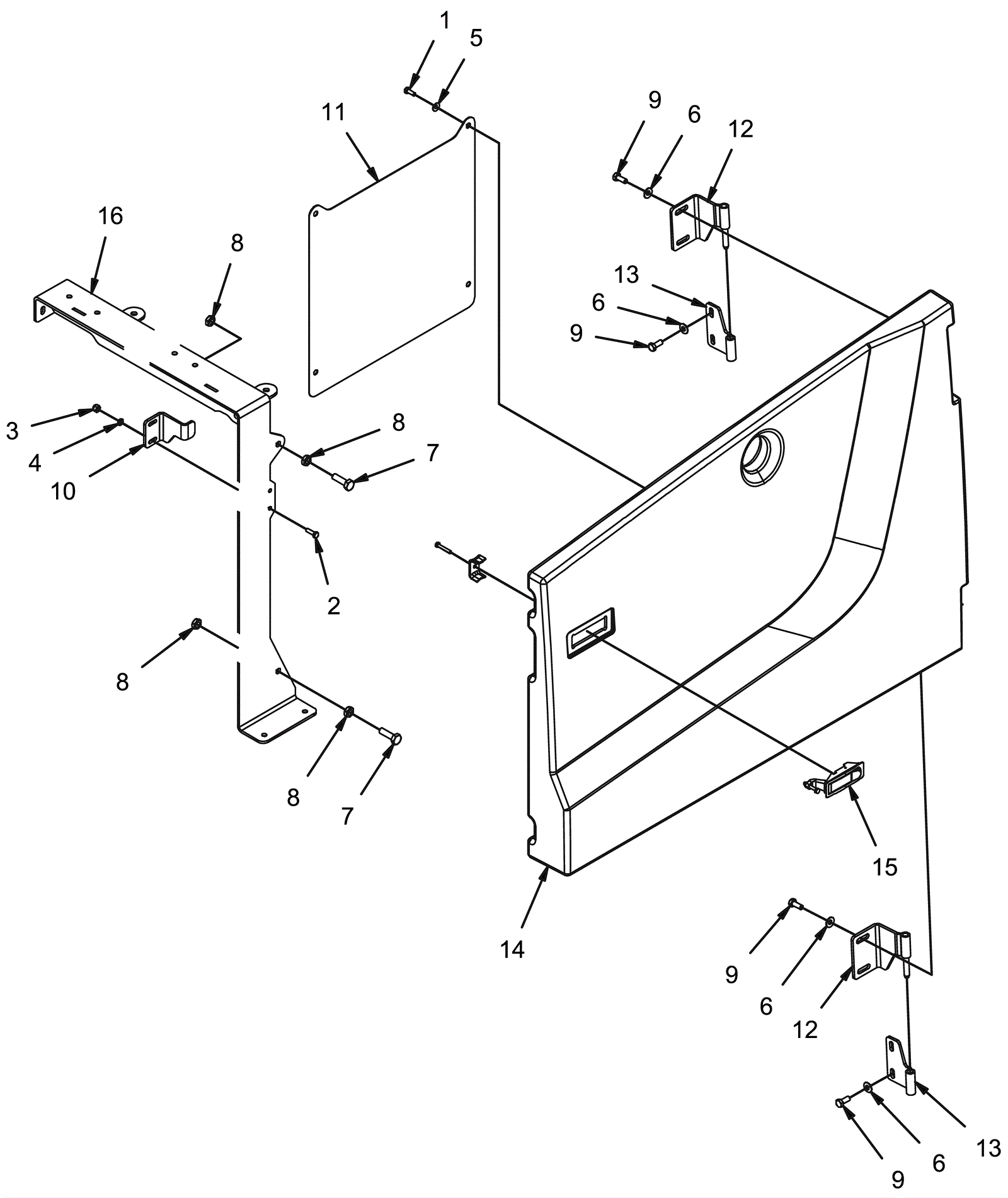

PowerBoss Nautilus Side Door Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
2 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
3 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
4 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
5 374-0938 WASHER-CONICAL SPRING 1/4 $0.97 4 usually ships 12-16 days
6 374-0939 Washer 5/16 conical spring $1.08 8 usually ships 12-16 days
7 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.28 2 ships same day
8 374-1361 NUT-HEX M10 X 1.5 $0.93 4 usually ships 1-5 days
9 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 8 ships same day
10 374-4360 Door striker Call for price 1 usually ships 1-5 days
11 374-4361 Heat shield Call for price 1 usually ships 1-5 days
12 374-4362 Male hinge weldment Call for price 2 usually ships 1-5 days
13 374-4341 Hinge weldment Call for price 2 usually ships 1-5 days
14 374-4363 Left hand door assembly $364.09 1 usually ships 1-5 days
15 374-4359 Latch Call for price 1 usually ships 1-5 days
16 N/A Not available Call for price (cover frame) (for reference only) usually ships 3-26 days
