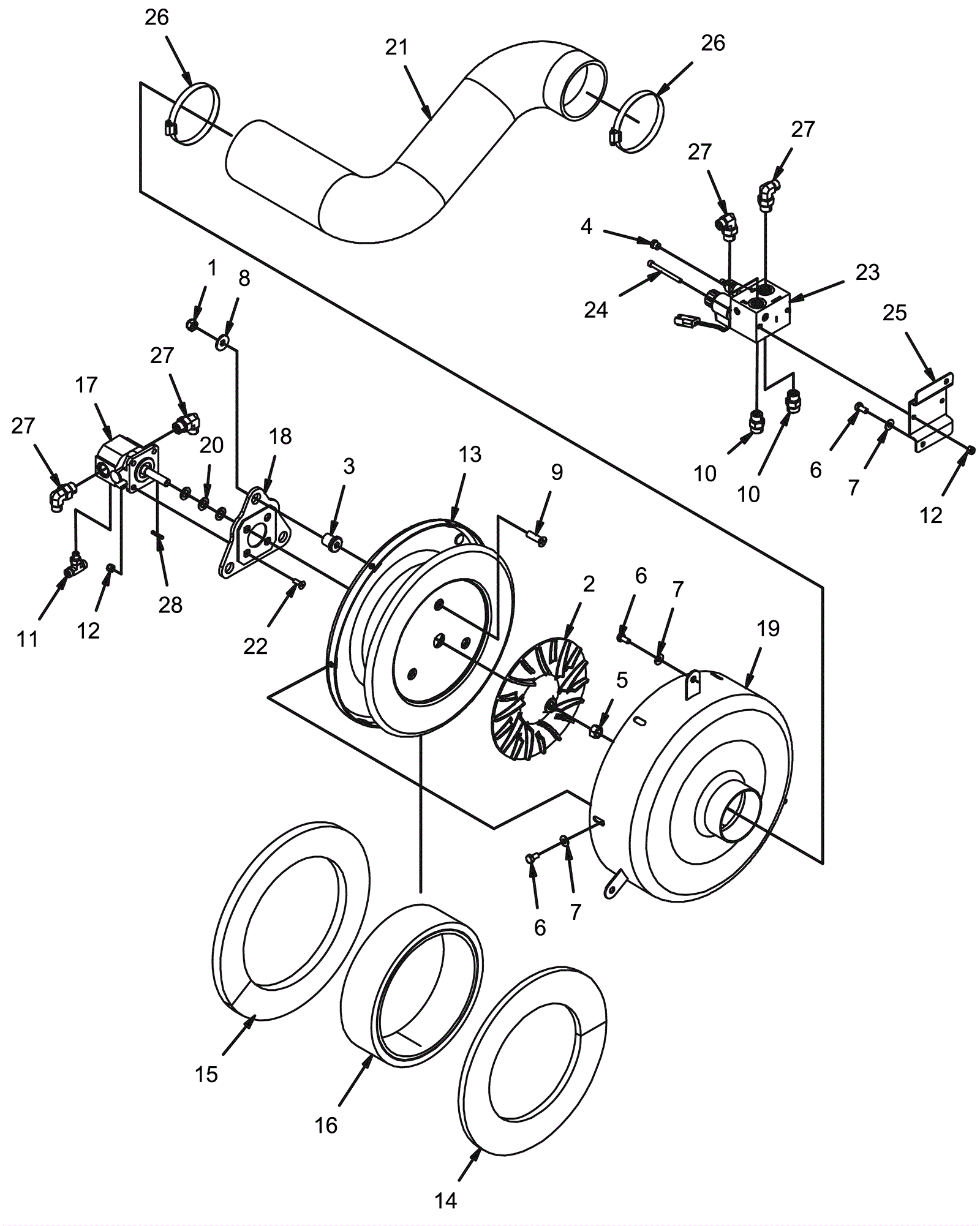

PowerBoss Nautilus Impeller Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 3 ships same day
2 374-4161 Impeller Call for price 1 usually ships 1-5 days
3 374-3901 Isolator Call for price 3 usually ships 1-5 days
4 374-4162 Plug fitting Call for price 1 usually ships 1-5 days
5 374-4178 Nut 1/2-20 unf zinc plated Call for price 1 usually ships 1-5 days
6 374-2090 SCR-HEX,8MMX1.25PX16MM ZP Call for price 11 usually ships 1-5 days
7 374-0939 Washer 5/16 conical spring $1.08 11 usually ships 12-16 days
8 374-3903 Isolator washer Call for price 3 usually ships 1-5 days
9 999-9142 Screw M10-1.5 x 35mm flat head $2.27 3 usually ships 12-18 days
10 374-4163 Fitting Call for price 2 usually ships 1-5 days
11 374-4164 Fitting Call for price 1 usually ships 1-5 days
12 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
13 374-4165 Machined impeller housing Call for price 1 usually ships 1-5 days
14 374-4166 Sound insulation Call for price 1 usually ships 1-5 days
15 374-4167 Sound insulation Call for price 1 usually ships 1-5 days
16 374-4168 Sound insulation Call for price 1 usually ships 1-5 days
17 374-4169 Hydraulic gear motor Call for price 1 (includes 28) usually ships 1-5 days
18 374-4170 Motor mount weldment Call for price 1 usually ships 1-5 days
19 374-4171 Impeller shroud weldment Call for price 1 usually ships 1-5 days
20 374-4172 Washer Call for price 3 usually ships 1-5 days
21 374-4173 Vacuum fan hose Call for price 1 usually ships 1-5 days
22 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated $0.99 4 ships same day
23 374-4174 Impeller manifold Call for price 1 usually ships 1-5 days
24 999-9295 Screw 1/4-20 x 2 3/4 socket zinc plated $1.54 2 usually ships 1-5 days
25 374-4175 Manifold bracket Call for price 1 usually ships 1-5 days
26 374-4176 Hose clamp Call for price 2 usually ships 1-5 days
27 374-4177 Fitting Call for price 4 usually ships 1-5 days
28 N/A Not available Call for price 1 (key) (included with 17) usually ships 3-26 days
