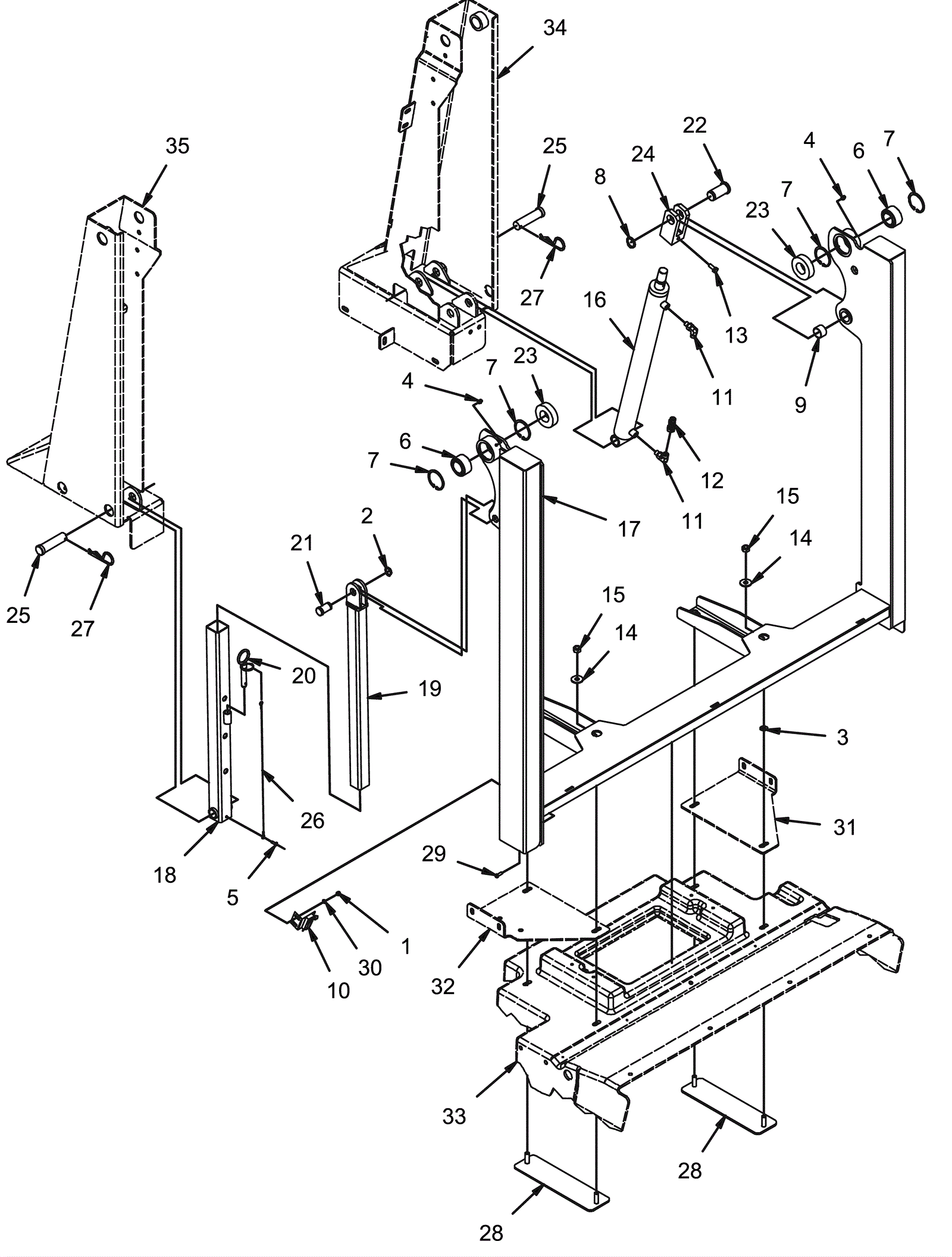

PowerBoss Nautilus Hopper Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 2 ships same day
2 174-7157 Retaining ring $0.97 1 usually ships 1-5 days
3 374-4101 Push nut M8 Call for price 4 usually ships 1-5 days
4 374-3786 Grease zirk $1.19 2 usually ships 1-5 days
5 374-0942 RIVET-AVDEL 3/16 X .602 Call for price 1 usually ships 1-5 days
6 374-4102 Spherical bearing Call for price 2 usually ships 1-5 days
7 374-4103 Retaining ring Call for price 4 usually ships 1-5 days
8 374-4104 Retaining ring Call for price 1 usually ships 1-5 days
9 374-4105 Bearing Call for price 1 usually ships 1-5 days
10 374-4106 Limit switch Call for price 1 usually ships 1-5 days
11 374-3936 Fitting Call for price 2 usually ships 1-5 days
12 374-4107 Fitting Call for price 1 usually ships 1-5 days
13 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 1 usually ships 1-5 days
14 174-7186 Washer 10 1/2 x 30 x 2 1/2 flat stainless steel $0.75 4 ships same day
15 999-6697 Nut M10-1.5 hex stainless steel $1.01 4 ships same day
16 374-4108 Hydraulic cylinder Call for price 1 usually ships 1-5 days
17 374-4109 Hopper lift arm weldment Call for price 1 usually ships 1-5 days
18 374-4110 Safety tube weldment Call for price 1 usually ships 1-5 days
19 374-4111 Upper safety tube weldment Call for price 1 usually ships 1-5 days
20 374-4112 Safety pin Call for price 1 usually ships 1-5 days
21 374-4113 Upper safety tube pin Call for price 1 usually ships 1-5 days
22 374-4114 Upper cylinder pin Call for price 1 usually ships 1-5 days
23 374-4115 Spacer Call for price 2 usually ships 1-5 days
24 374-4116 Clevis Call for price 1 usually ships 1-5 days
25 374-4117 Clevis pin Call for price 2 usually ships 1-5 days
26 374-4118 Lanyard Call for price 1 usually ships 1-5 days
27 374-4119 Hair spring cotter Call for price 2 usually ships 1-5 days
28 374-4120 Back plate weldment Call for price 2 usually ships 1-5 days
29 999-1618 Bolt M5-.8 x 16mm hex head stainless steel $0.99 2 ships same day
30 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
31 N/A Not available Call for price (right hand hopper mount) (for reference only) usually ships 3-26 days
32 N/A Not available Call for price (left hand hopper mount) (for reference only) usually ships 3-26 days
33 N/A Not available Call for price (hopper) (for reference only) usually ships 3-26 days
34 N/A Not available Call for price (right pillar) (for reference only) usually ships 3-26 days
35 N/A Not available Call for price (left pillar) (for reference only) usually ships 3-26 days
