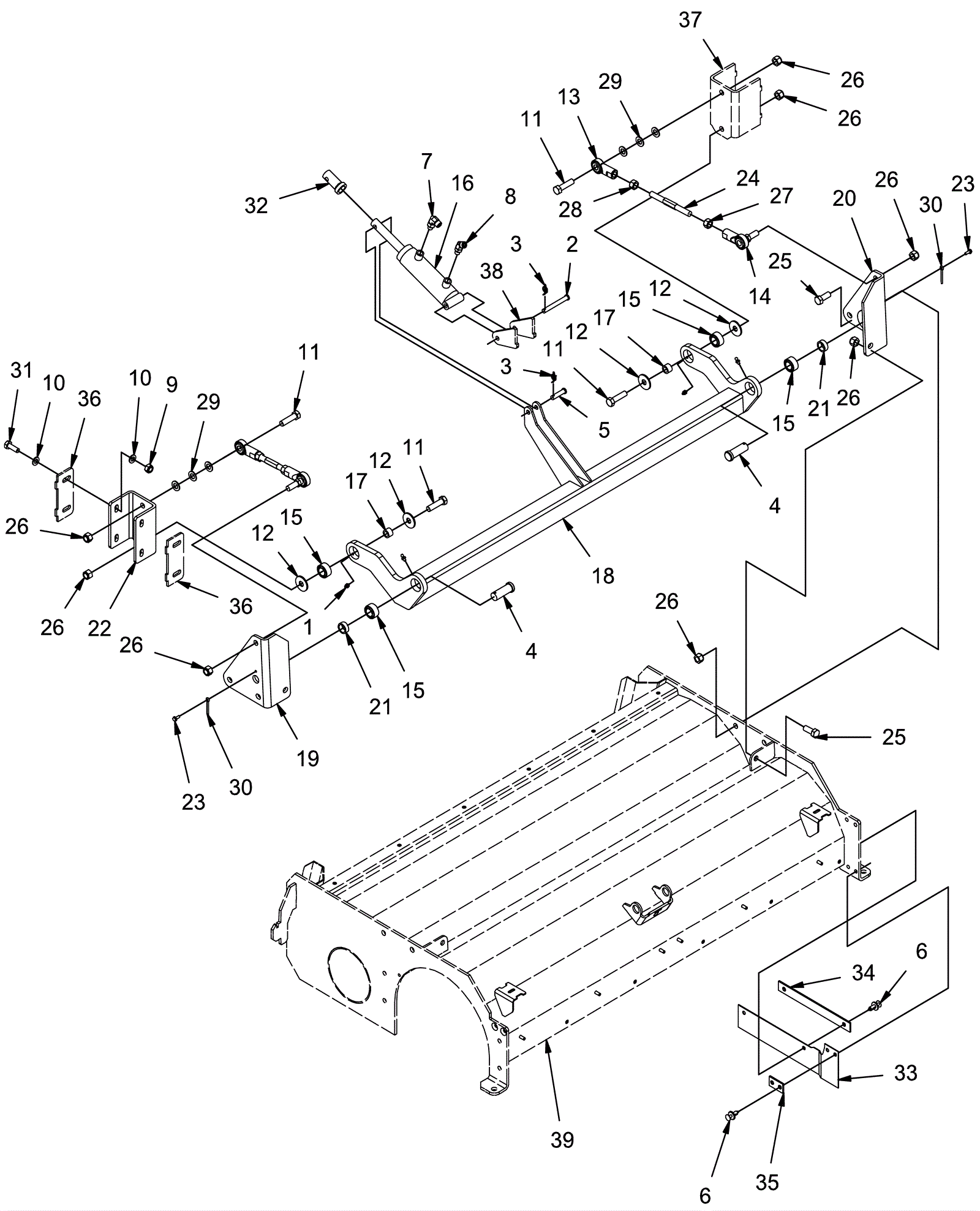

PowerBoss Nautilus Scrub Brush Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 374-3786 Grease zirk $1.19 4 usually ships 1-5 days
2 374-3933 Clevis pin Call for price 1 usually ships 1-5 days
3 174-1578 3/8 rue ring cotter pin $1.81 2 ships same day
4 374-3934 Clevis pin Call for price 2 usually ships 1-5 days
5 374-3935 Clevis pin Call for price 1 usually ships 1-5 days
6 374-3742 Press in fastener Call for price 4 usually ships 1-5 days
7 374-3936 Fitting Call for price 1 usually ships 1-5 days
8 374-3918 Fitting Call for price 1 usually ships 1-5 days
9 999-6697 Nut M10-1.5 hex stainless steel $1.01 4 ships same day
10 999-9099 Washer M10 flat stainless steel $0.99 8 ships same day
11 999-9289 Screw M12-1.75 x 45 hex cap stainless steel $3.54 4 usually ships 1-5 days
12 374-3937 Washer Call for price 4 usually ships 1-5 days
13 374-3938 Female rod end Call for price 2 usually ships 1-5 days
14 374-3939 Female rod end Call for price 2 usually ships 1-5 days
15 374-3940 Spherical bearing Call for price 4 usually ships 1-5 days
16 374-3941 Hydraulic cylinder Call for price 1 usually ships 1-5 days
17 374-3942 Spacer Call for price 2 usually ships 1-5 days
18 374-3943 Lift arm weldment Call for price 1 usually ships 1-5 days
19 374-3944 Right hand lift bracket weldment Call for price 1 usually ships 1-5 days
20 374-3945 Left hand lift bracket weldment Call for price 1 usually ships 1-5 days
21 374-3946 Spacer Call for price 2 usually ships 1-5 days
22 374-3947 Adjustment mount bracket Call for price 1 usually ships 1-5 days
23 999-9155 Screw 10-32 x 1/2 socket cup point set $1.10 2 usually ships 11-24 days
24 374-3948 Adjustment rod Call for price 2 usually ships 1-5 days
25 999-6696 Bolt M12-1.75 x 30mm stainless steel hex cap screw $5.19 6 ships same day
26 374-3949 Nut M12-1.75 esn stainless steel Call for price 12 usually ships 1-5 days
27 374-3950 Nut M12-1.75 left hand thread stainless steel Call for price 2 usually ships 1-5 days
28 999-0503 Nut M12-1.75 hex stainless steel $1.91 2 ships same day
29 999-1346 Washer M12 flat stainless steel $0.99 6 ships same day
30 374-3951 Cotter pin Call for price 2 usually ships 1-5 days
31 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread $0.99 4 ships same day
32 374-3952 Stop tube Call for price 1 usually ships 1-5 days
33 374-3953 Side skirt Call for price 1 usually ships 1-5 days
34 374-3954 Rear skirt retainer Call for price 1 usually ships 1-5 days
35 374-3955 Front skirt retainer Call for price 1 usually ships 1-5 days
36 N/A Not available Call for price (frame) (for reference only) usually ships 3-26 days
37 N/A Not available Call for price (frame) (for reference only) usually ships 3-26 days
38 N/A Not available Call for price (frame) (for reference only) usually ships 3-26 days
39 N/A Not available Call for price (scrub head) (for reference only) usually ships 3-26 days
