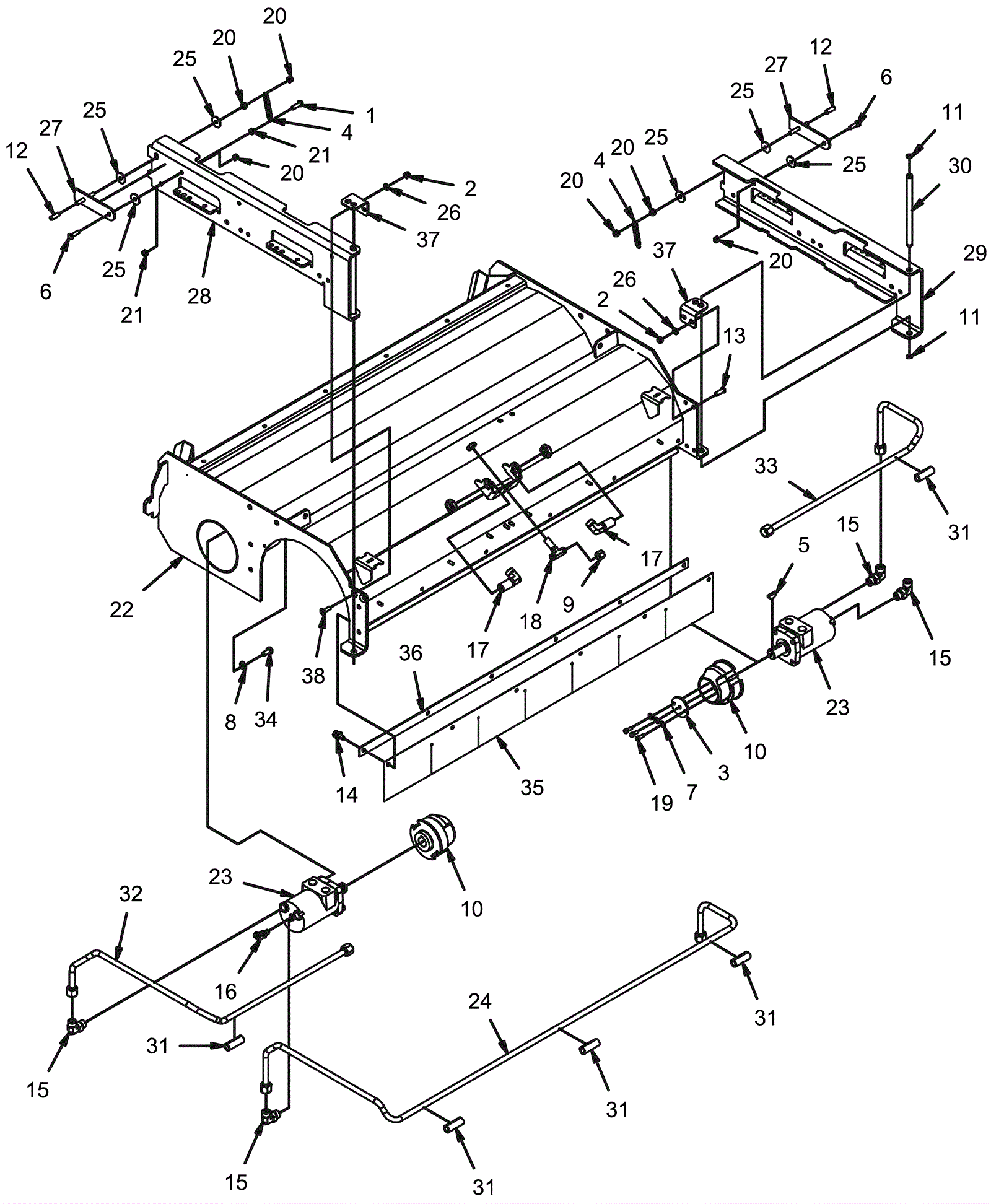

PowerBoss Nautilus Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
2 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
3 374-3911 Main broom drive hub retainer Call for price 2 usually ships 1-5 days
4 374-3912 Spring Call for price 2 usually ships 1-5 days
5 374-3913 Woodruff key Call for price 2 usually ships 1-5 days
6 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 2 ships same day
7 374-0938 WASHER-CONICAL SPRING 1/4 $1.08 6 usually ships 9-11 days
8 374-0940 WASHER-CONICAL SPRING 3/8 Call for price 8 usually ships 1-5 days
9 374-3914 Cap fitting Call for price 1 usually ships 1-5 days
10 374-3915 Main broom drive hub Call for price 2 usually ships 1-5 days
11 374-3817 Retaining ring Call for price 4 usually ships 1-5 days
12 374-3916 Cap Call for price 2 usually ships 1-5 days
13 999-0910 Screw M8-1.25 x 25mm button head socket $3.19 2 ships same day
14 374-3742 Press in fastener Call for price 6 usually ships 1-5 days
15 374-3917 Fitting Call for price 4 usually ships 1-5 days
16 374-3918 Fitting Call for price 1 usually ships 1-5 days
17 374-3919 Fitting Call for price 2 usually ships 1-5 days
18 374-3920 Fitting Call for price 1 usually ships 1-5 days
19 374-1263 SCREW-HEX SOCKET HEAD CAP 1/4-20 X 5/8 S $1.08 6 usually ships 1-5 days
20 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
21 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
22 374-3921 Scrub head weldment Call for price 1 usually ships 1-5 days
23 374-3922 Motor Call for price 2 usually ships 1-5 days
24 374-3923 Cross tube assembly Call for price 1 usually ships 1-5 days
25 174-3644 Washer fender m8 x 24 stainless steel $1.08 6 ships same day
26 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
27 374-3924 Door latch weldment Call for price 2 usually ships 1-5 days
28 374-3925 Right hand square mount channel Call for price 1 usually ships 1-5 days
29 374-3926 Left hand square mount channel Call for price 1 usually ships 1-5 days
30 374-3927 Shaft Call for price 2 usually ships 1-5 days
31 374-3928 Hose guard Call for price 5 usually ships 1-5 days
32 274-9894 Motor tube assembly right hand $60.42 1 usually ships 1-5 days
33 374-3929 Left hand motor tube assembly Call for price 1 usually ships 1-5 days
34 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 ships same day
35 374-3930 Scrub head skirt Call for price 1 usually ships 1-5 days
36 374-3931 Retainer skirt Call for price 1 usually ships 1-5 days
37 374-3932 Adjustment hinge Call for price 2 usually ships 1-5 days
38 999-6699 Screw M8-1.25 x 25mm flat socket head stainless steel $1.47 2 usually ships 19-32 days
