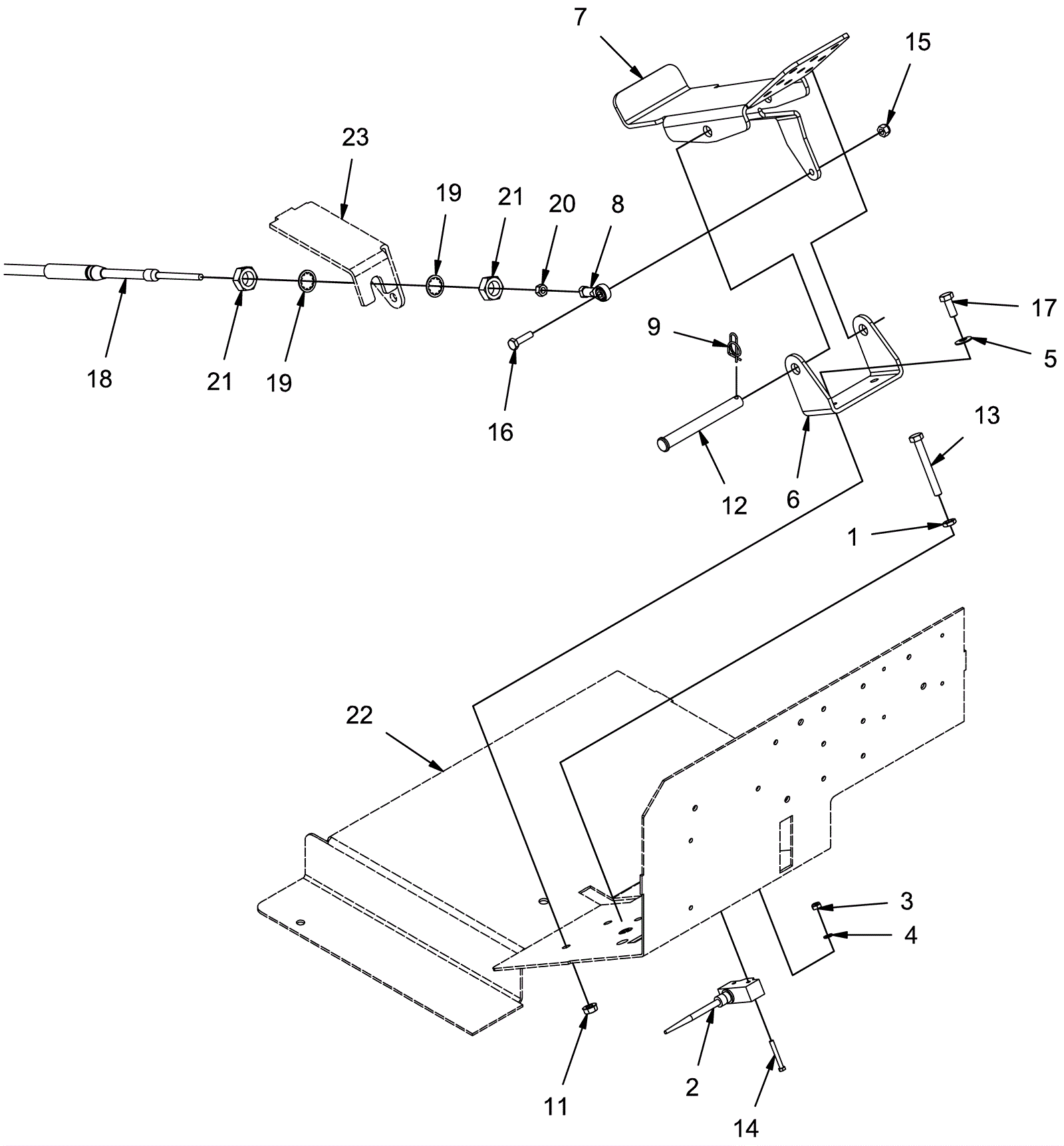

PowerBoss Nautilus Directional Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1551 Nut M8-1.25 hex jam zinc plated $0.99 1 usually ships 1-5 days
2 374-3895 Whisker switch harness Call for price 1 usually ships 1-5 days
3 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
4 999-0412 Washer #8 SAE flat $0.99 2 ships same day
5 374-0939 Washer 5/16 conical spring $1.08 2 usually ships 4-14 days
6 374-3896 Pedal bracket Call for price 1 usually ships 1-5 days
7 374-3897 Pedal Call for price 1 usually ships 1-5 days
8 374-3898 Female rod end Call for price 1 usually ships 1-5 days
9 174-7161 Cotter pin $1.20 1 usually ships 1-5 days
11 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
12 174-1340 Clevis pin 1/2 x 4 1/2 inch zinc plated $7.71 1 usually ships 4-14 days
13 999-9202 Screw M8-1.25 x 65 hex zinc $0.99 1 usually ships 11-24 days
14 999-9288 Screw #8-32 x 1 1/4 hex cap stainless steel $6.09 2 usually ships 1-5 days
15 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
16 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 ships same day
17 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
18 374-3900 Jacketed cable Call for price 1 (includes 19-21) usually ships 1-5 days
19 N/A Not available Call for price 2 (lock washer) (included in 18) usually ships 3-26 days
20 999-0651 Nut 1/4-28 hex stainless steel $0.99 1 (included in 18) ships same day
21 999-0003 Nut 5/8-18 hex jam stainless steel $2.70 2 (included in 18) ships same day
22 N/A Not available Call for price (console) (for reference only) usually ships 3-26 days
23 N/A Not available Call for price (frame) (for reference only) usually ships 3-26 days
N/S 374-3899 Insert Call for price 1 usually ships 1-5 days
