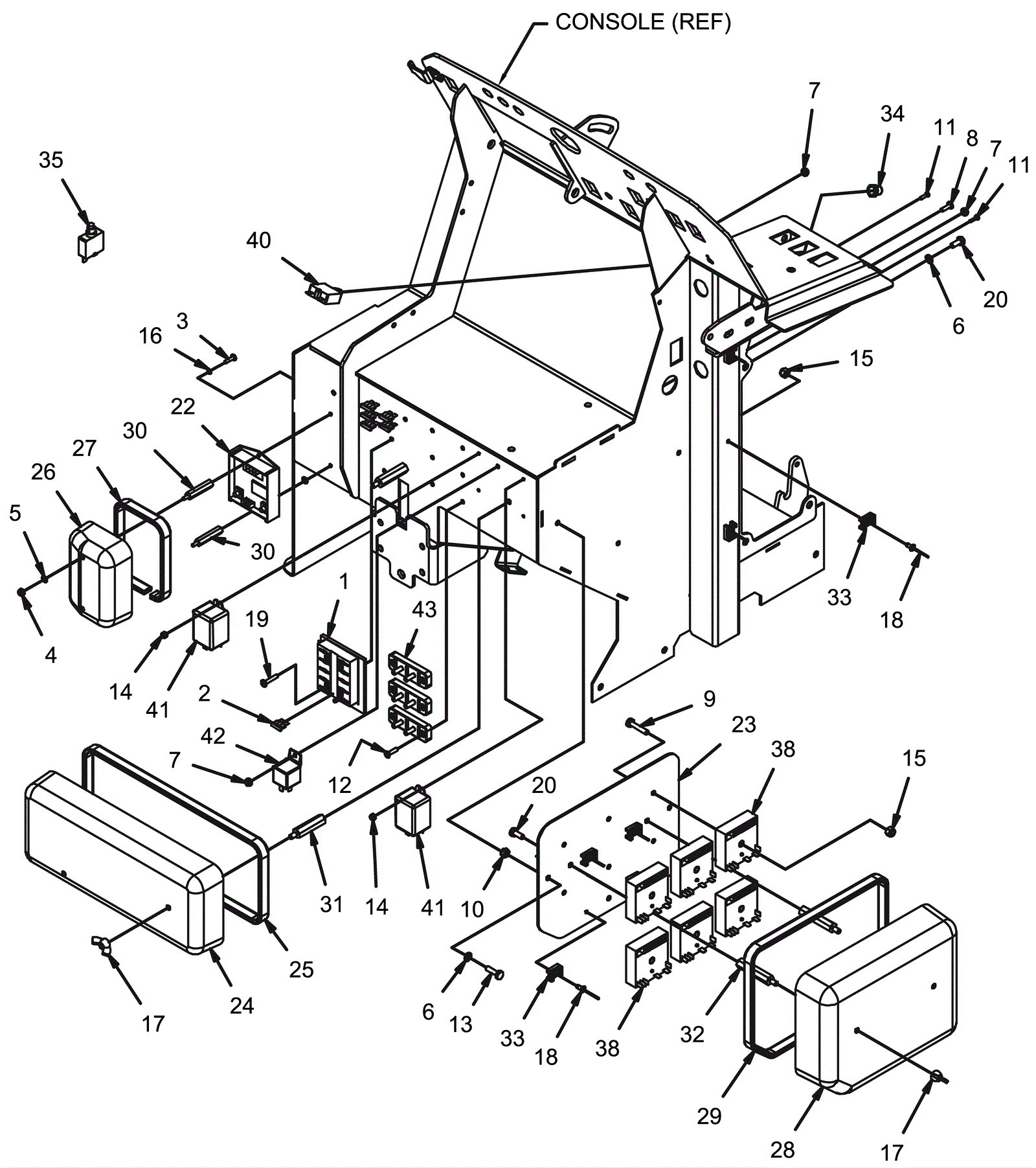

PowerBoss Nautilus Hi-Dump Instrumentation Assembly-1

#PartDescriptionPriceReqNotesAvailability
1 374-3845 Fuse block Call for price 1 usually ships 1-5 days
2 374-3846 15 amp fuse Call for price 6 usually ships 1-5 days
3 174-1586 Screw 8 x 32 x 1/16 pan $1.20 2 usually ships 1-5 days
4 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
5 999-0412 Washer #8 SAE flat $0.99 2 ships same day
6 374-0926 WASHER-LOCK 1/4 SPLIT ZP $1.20 5 usually ships 1-5 days
7 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 9 ships same day
8 374-1626 SCR-PAN,#10-32X0.62,PHL ZP Call for price 1 usually ships 1-5 days
9 374-0930 SCR-HEX,1/4-20X1.25 ZP (SAME AS 711210) $1.20 6 usually ships 1-5 days
10 374-3847 Nut 1/4-20 low height ESN Call for price 3 usually ships 1-5 days
11 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated $0.99 4 ships same day
12 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 6 ships same day
13 174-6289 Bolt 1/4-20 x 7/8 hex head steel plated $0.97 3 usually ships 1-5 days
14 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 4 ships same day
15 999-0190 Nut 1/4-20 hex plain finish $0.99 9 ships same day
16 174-5406 Washer 8 helical $0.97 2 usually ships 4-14 days
17 174-5948 Nut 1/4-20 wing nylon $1.20 4 usually ships 4-14 days
18 174-5108 Rivet 3/16 x 1/4 pop $0.97 7 usually ships 1-5 days
19 174-3151 Screw 10-32 x 1 stainless steel $0.97 2 usually ships 1-5 days
20 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
22 374-3849 Proportional valve driver assembly Call for price 1 usually ships 1-5 days
23 374-3850 Timer plate Call for price 1 usually ships 1-5 days
24 374-3851 Fuse panel cover Call for price 1 usually ships 1-5 days
25 374-3852 Fuse cover seal Call for price 1 usually ships 1-5 days
26 374-3853 Controller cover Call for price 1 usually ships 1-5 days
27 374-3854 Controller seal Call for price 1 usually ships 1-5 days
28 374-3855 Timer cover Call for price 1 usually ships 1-5 days
29 374-3856 Timer cover seal Call for price 1 usually ships 1-5 days
30 374-3857 Panel standoff Call for price 2 usually ships 1-5 days
31 374-3858 Panel standoff Call for price 2 usually ships 1-5 days
32 374-3859 Panel standoff Call for price 2 usually ships 1-5 days
33 374-3355 Cable tie mount $1.00 7 usually ships 1-5 days
34 174-5824 Circuit breaker boot $5.95 1 usually ships 4-14 days
35 174-6534 Circuit breaker 3amp $17.79 1 usually ships 4-14 days
38 374-3862 Timer assembly Call for price 6 usually ships 1-5 days
40 374-3864 40 amp circuit breaker $56.51 1 usually ships 1-5 days
41 374-3865 12V 35 amp relay Call for price 2 usually ships 1-5 days
42 374-3866 12V 30 amp relay Call for price 1 usually ships 1-5 days
43 274-1448 TERMINAL BLOCK, 2 STUD M6 63A $7.56 3 usually ships 1-5 days
N/S 374-3848 Prop valve driver Call for price 1 (included with 22) usually ships 1-5 days
N/S 374-3860 Wire harness assembly Call for price 1 (included with 38) usually ships 1-5 days
N/S 374-3861 Timer Call for price 1 (included with 38) usually ships 1-5 days
N/S 374-3863 Wire harness assembly Call for price 1 (included with 22) usually ships 1-5 days
