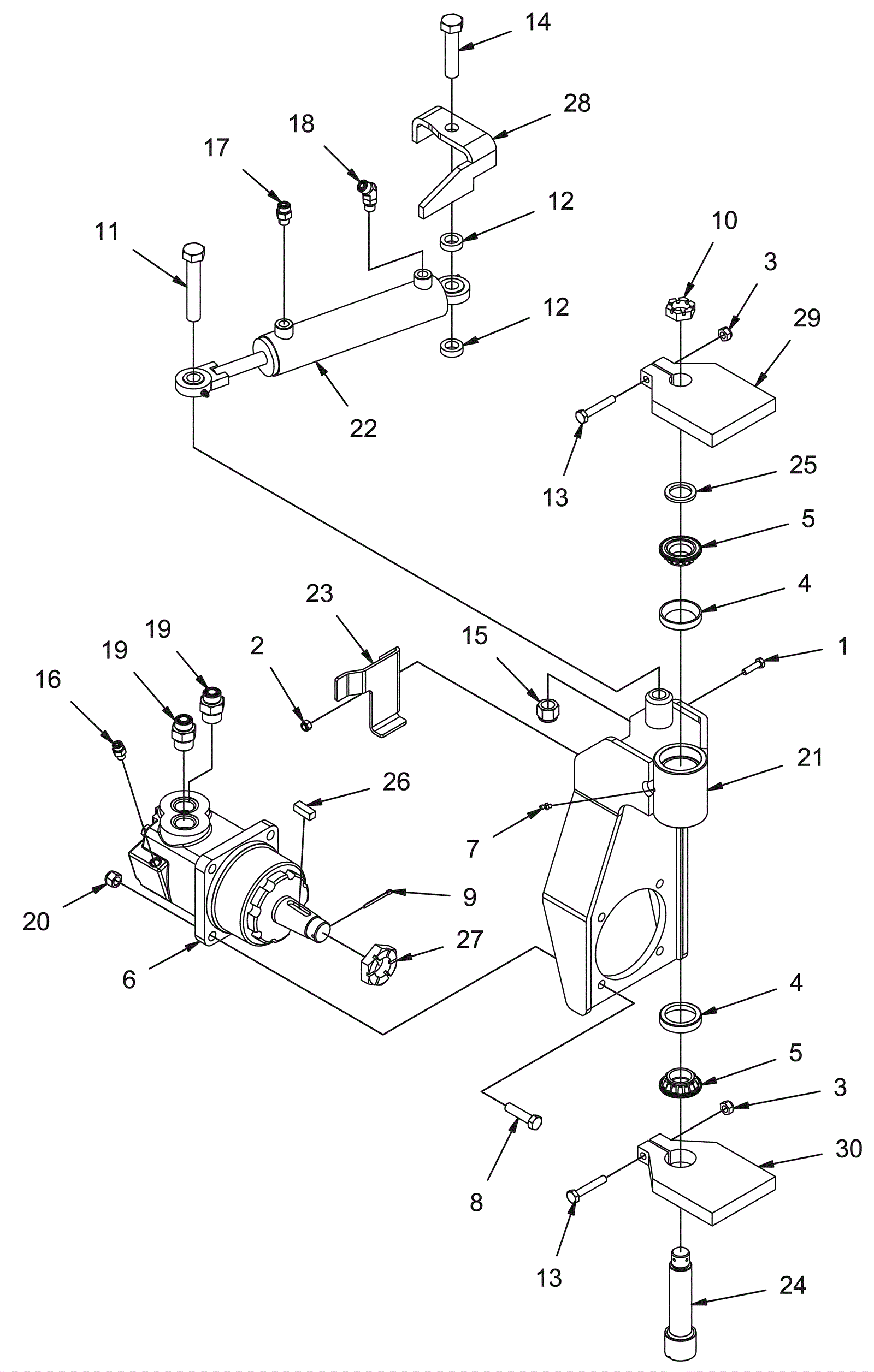

PowerBoss Nautilus Steering Fork Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
2 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
3 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
4 374-3784 Pivot bearing Call for price 2 usually ships 1-5 days
5 174-1636 Tapered bearing cone $39.50 2 usually ships 4-14 days
6 374-3785 Hydraulic wheel motor Call for price 1 (includes 26-27) usually ships 1-5 days
7 374-3786 Grease zirk $1.19 3 usually ships 1-5 days
8 374-0899 SCR-HEX,1/2-13X2.00 ZP $2.18 4 usually ships 1-5 days
9 374-3787 Cotter pin Call for price 1 usually ships 1-5 days
10 374-3773 Slotted nut 1-20 zinc plated Call for price 1 usually ships 1-5 days
11 999-9279 Bolt 3/4-10 x 4 1/4 hex head plain finish $1.80 1 usually ships 1-5 days
12 374-3788 Spacer Call for price 2 usually ships 1-5 days
13 999-1429 Bolt M10-1.5 x 60mm hex head stainless steel $4.50 2 ships same day
14 999-9280 Screw 3/4-10 x 3 1/4 hex cap $6.14 1 usually ships 1-5 days
15 374-3789 Nut Call for price 1 usually ships 1-5 days
16 374-3790 Fitting Call for price 1 usually ships 1-5 days
17 374-3791 Fitting Call for price 1 usually ships 1-5 days
18 374-3792 Fitting Call for price 1 usually ships 1-5 days
19 374-3793 Fitting Call for price 2 usually ships 1-5 days
20 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 4 ships same day
21 374-3794 Steering fork weldment Call for price 1 usually ships 1-5 days
22 374-3795 Steering cylinder Call for price 1 usually ships 1-5 days
23 374-3796 Hose retainer Call for price 1 usually ships 1-5 days
24 374-3797 Pivot pin Call for price 1 usually ships 1-5 days
25 374-3798 Spacer Call for price 1 usually ships 1-5 days
26 N/A Not available Call for price 1 (key) (included with 6) usually ships 3-26 days
27 N/A Not available Call for price 1 (nut) (included with 6) usually ships 3-26 days
28 N/A Not available Call for price (frame) (for reference only) usually ships 3-26 days
29 N/A Not available Call for price (frame) (for reference only) usually ships 3-26 days
30 N/A Not available Call for price (frame) (for reference only) usually ships 3-26 days
