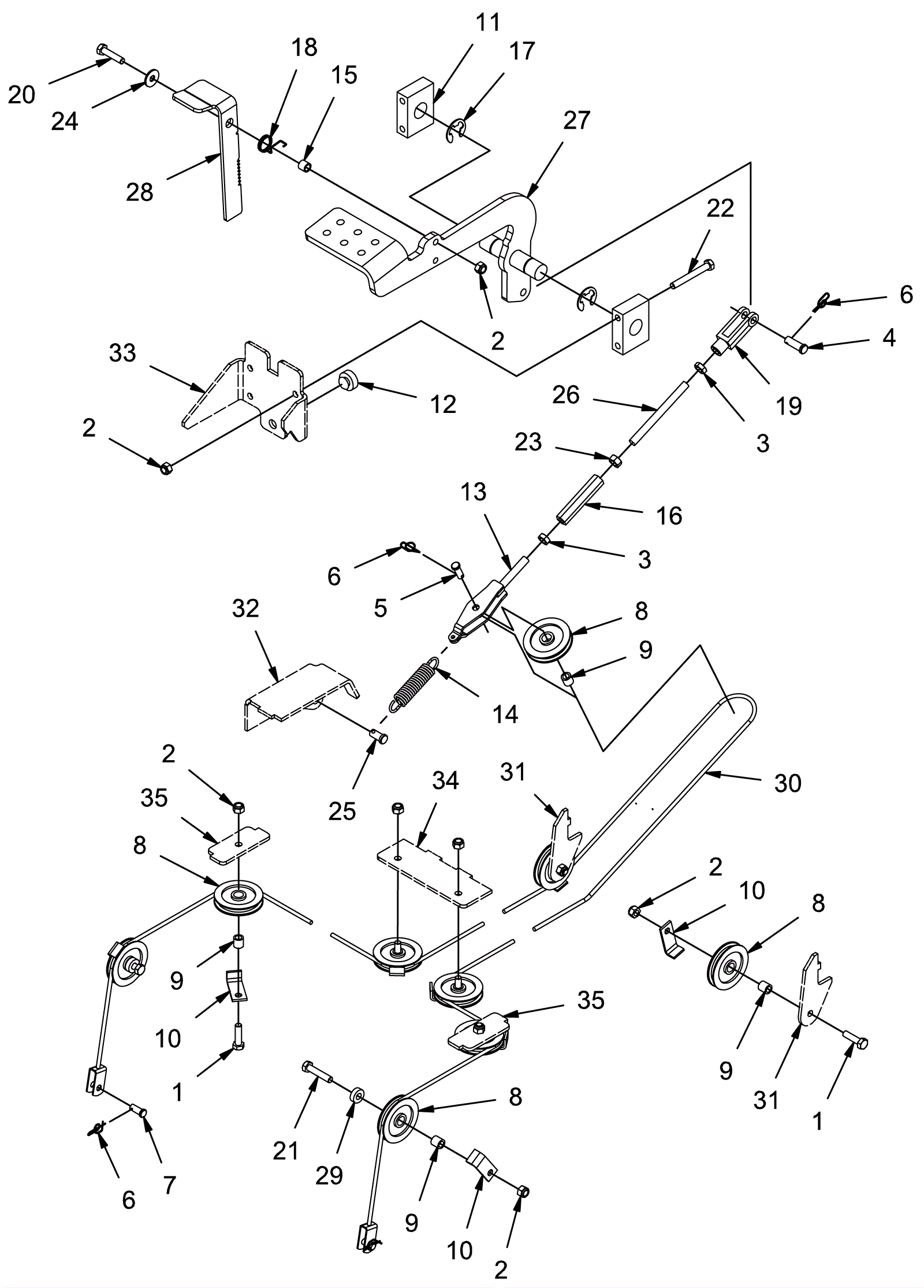

PowerBoss Nautilus Brake Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 6 usually ships 12-18 days
2 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 13 ships same day
3 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
4 174-1852 Clevis pin 3/8 x 1 1/8 zinc plated $1.45 1 ships same day
5 174-1577 5/16 x 7/8 zinc plated clevis pin $1.40 1 usually ships 1-5 days
6 174-1578 3/8 rue ring cotter pin $1.81 4 ships same day
7 174-3013 Clevis pin $0.97 2 usually ships 12-16 days
8 374-3757 Pulley Call for price 9 usually ships 1-5 days
9 174-3643 Spacer 21/64 x 1/2 x 1/2 stainless steel $5.19 9 ships same day
10 374-3758 Cable retainer Call for price 8 usually ships 1-5 days
11 374-3759 Brake pivot block Call for price 2 usually ships 1-5 days
12 374-3760 Bumper Call for price 1 usually ships 1-5 days
13 374-3761 Brake pulley clevis Call for price 1 usually ships 1-5 days
14 374-3762 Spring Call for price 1 usually ships 1-5 days
15 374-3763 Spacer $20.16 1 usually ships 1-5 days
16 374-3764 Turnbuckle Call for price 1 usually ships 1-5 days
17 374-3765 E-ring Call for price 2 usually ships 1-5 days
18 374-3766 Torsion spring $10.54 1 usually ships 1-5 days
19 374-3767 Clevis Call for price 1 usually ships 1-5 days
20 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
21 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
22 999-9202 Screw M8-1.25 x 65 hex zinc $0.99 4 usually ships 12-18 days
23 999-0319 Nut 3/8-24 hex left hand plain finish $1.98 1 ships same day
24 999-6695 Washer M8 fender stainless steel $0.99 1 ships same day
25 174-8312 Clevis pin 3/8 x 3/4 $0.97 1 usually ships 12-16 days
26 374-3768 Brake adjustment rod Call for price 1 usually ships 1-5 days
27 374-3769 Brake pedal weldment Call for price 1 usually ships 1-5 days
28 374-3772 Parking brake pedal Call for price 1 usually ships 1-5 days
29 374-3770 Spacer Call for price 2 usually ships 1-5 days
30 374-3771 Brake cable Call for price 1 usually ships 1-5 days
31 N/A Not available Call for price (for reference) (frame) usually ships 3-26 days
32 N/A Not available Call for price (for reference) (frame) usually ships 3-26 days
33 N/A Not available Call for price (for reference) (console) usually ships 3-26 days
34 N/A Not available Call for price (for reference) (frame) usually ships 3-26 days
35 N/A Not available Call for price (for reference) (frame) usually ships 3-26 days
