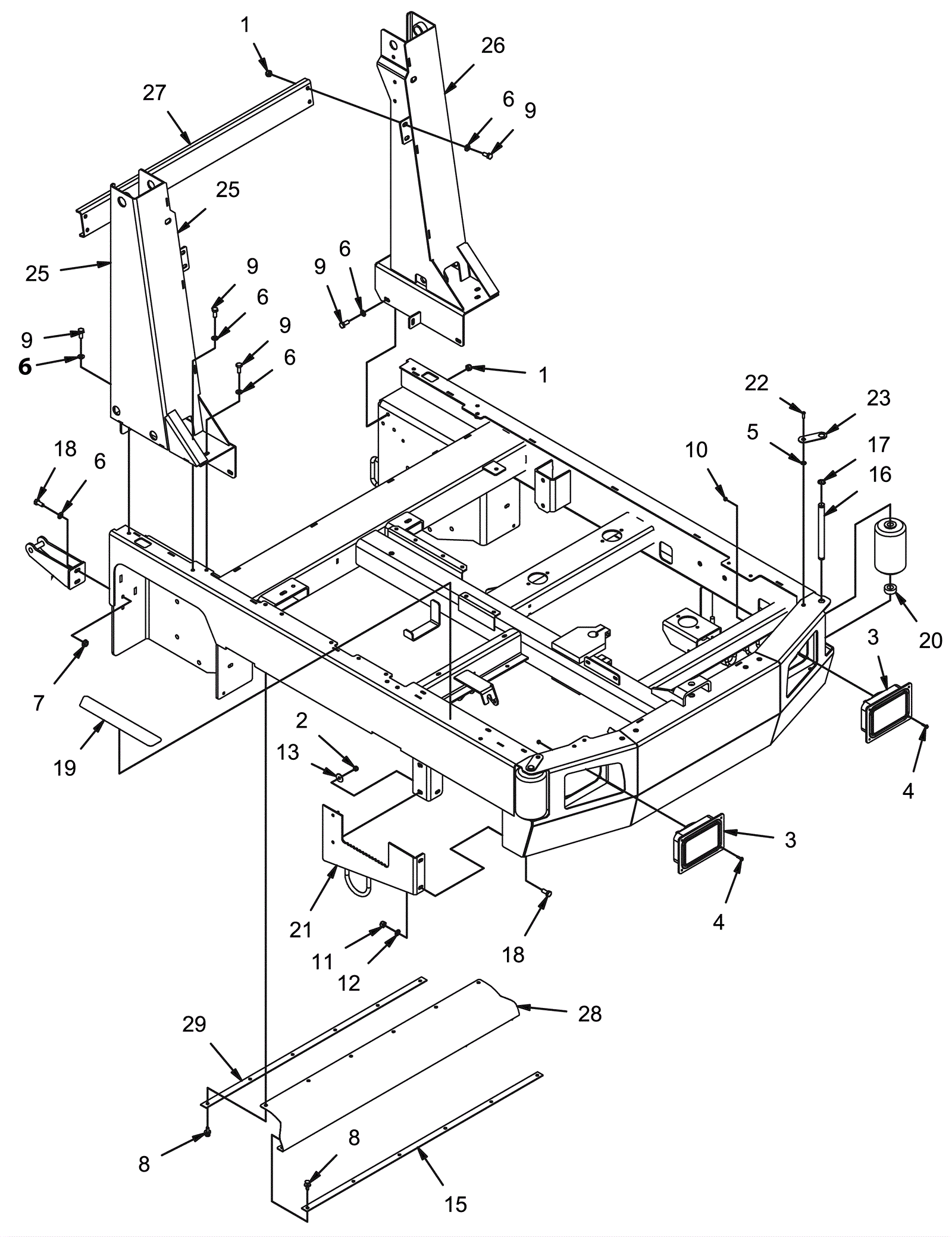

PowerBoss Nautilus Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 8 ships same day
2 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
3 374-3741 12V headlight Call for price 2 usually ships 1-5 days
4 374-0908 SCR-HEX,#10-32X0.75 ZP $1.20 8 usually ships 1-5 days
5 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
6 374-0940 WASHER-CONICAL SPRING 3/8 Call for price 16 usually ships 1-5 days
7 999-1994 Nut M10-1.5 plain serrated flange $0.99 2 usually ships 1-5 days
8 374-3742 Press in fastener Call for price 12 usually ships 1-5 days
9 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 14 ships same day
10 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 8 ships same day
11 999-6697 Nut M10-1.5 hex stainless steel $1.01 2 ships same day
12 999-9099 Washer M10 flat stainless steel $0.99 2 ships same day
13 174-3644 Washer fender m8 x 24 stainless steel $1.08 2 ships same day
14 374-3743 Roller Call for price 2 usually ships 1-5 days
15 274-3333 STRAP $14.95 1 usually ships 1-5 days
16 374-3744 Roller pin Call for price 2 usually ships 1-5 days
17 374-3745 Retaining ring Call for price 2 usually ships 1-5 days
18 174-3661 Hex head screw #M10-1.50 x 25 stainless steel $4.06 4 ships same day
19 374-3746 Step pad Call for price 1 usually ships 1-5 days
20 374-3747 Spacer Call for price 2 usually ships 1-5 days
21 374-3748 Cover assembly Call for price 1 usually ships 1-5 days
22 999-1620 Screw M6-1 x 20mm flat head socket stainless steel $6.29 2 ships same day
23 374-3749 Roller pin retainer Call for price 2 usually ships 1-5 days
25 374-3751 Right hand pillar weldment Call for price 1 usually ships 1-5 days
26 374-3752 Left hand pillar weldment Call for price 1 usually ships 1-5 days
27 374-3753 Cross channel Call for price 1 usually ships 1-5 days
28 374-3754 Hopper seal Call for price 1 usually ships 1-5 days
29 374-3755 Seal retainer Call for price 1 usually ships 1-5 days
N/S 374-3750 High dump frame assembly Call for price 1 usually ships 1-5 days
N/S 374-3756 Striker weldment Call for price 1 usually ships 1-5 days
