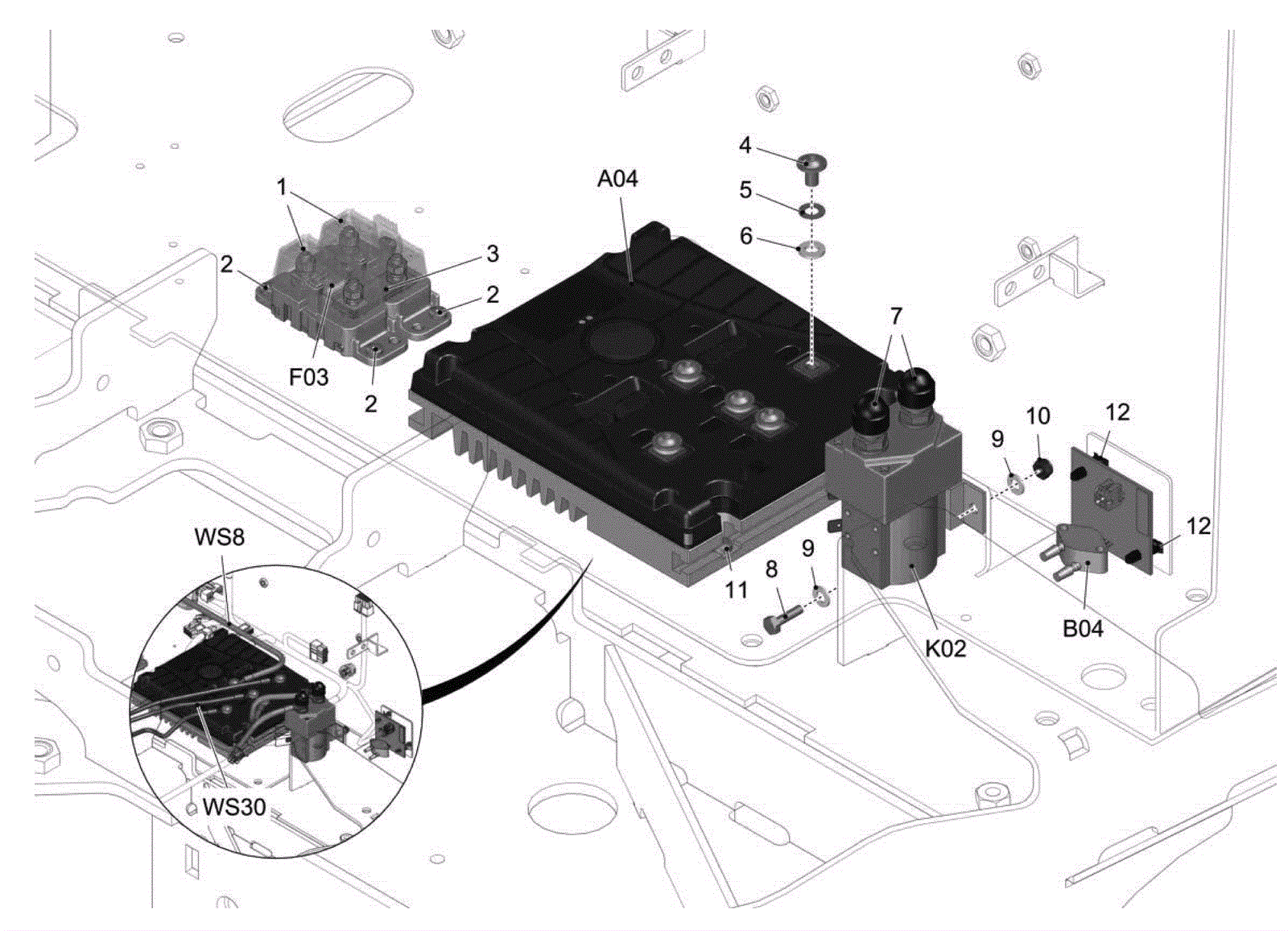

Powerboss Scrubmaster B260 Electrical Base Plate Assembly-Part 2

#PartDescriptionPriceReqNotesAvailability
1 174-9595 Fuse holder $15.55 2 usually ships 4-14 days
2 174-9456 Screw $1.05 4 usually ships 4-14 days
3 174-9596 Current bar $10.11 1 usually ships 4-14 days
4 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 5 ships same day
5 174-9580 Spring washer $2.43 5 usually ships 4-14 days
6 999-1261 Washer M6 flat stainless steel $0.99 5 ships same day
7 174-8291 Nut cover safety cap M8 $1.40 2 usually ships 1-5 days
8 174-9620 Bolt M5-.8 x 16 hex head $0.97 2 usually ships 1-5 days
9 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
10 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
11 374-0614 SCREW $0.95 4 usually ships 1-5 days
12 374-1910 PRINT PLATE HOLDER $0.95 2 usually ships 1-5 days
A04 174-9597 Driving control $1,279.86 1 (front wheel) usually ships 4-14 days
B04 174-9544 Pressure sensor $255.67 1 (fresh water sensor) usually ships 4-14 days
F03 174-9598 Fuse link $4.67 1 (front drive control) usually ships 4-14 days
K02 274-9121 MAGNETIC SWITCH $131.98 1 usually ships 1-5 days
WS8 174-9593 Wiring harness $143.96 1 usually ships 4-14 days
