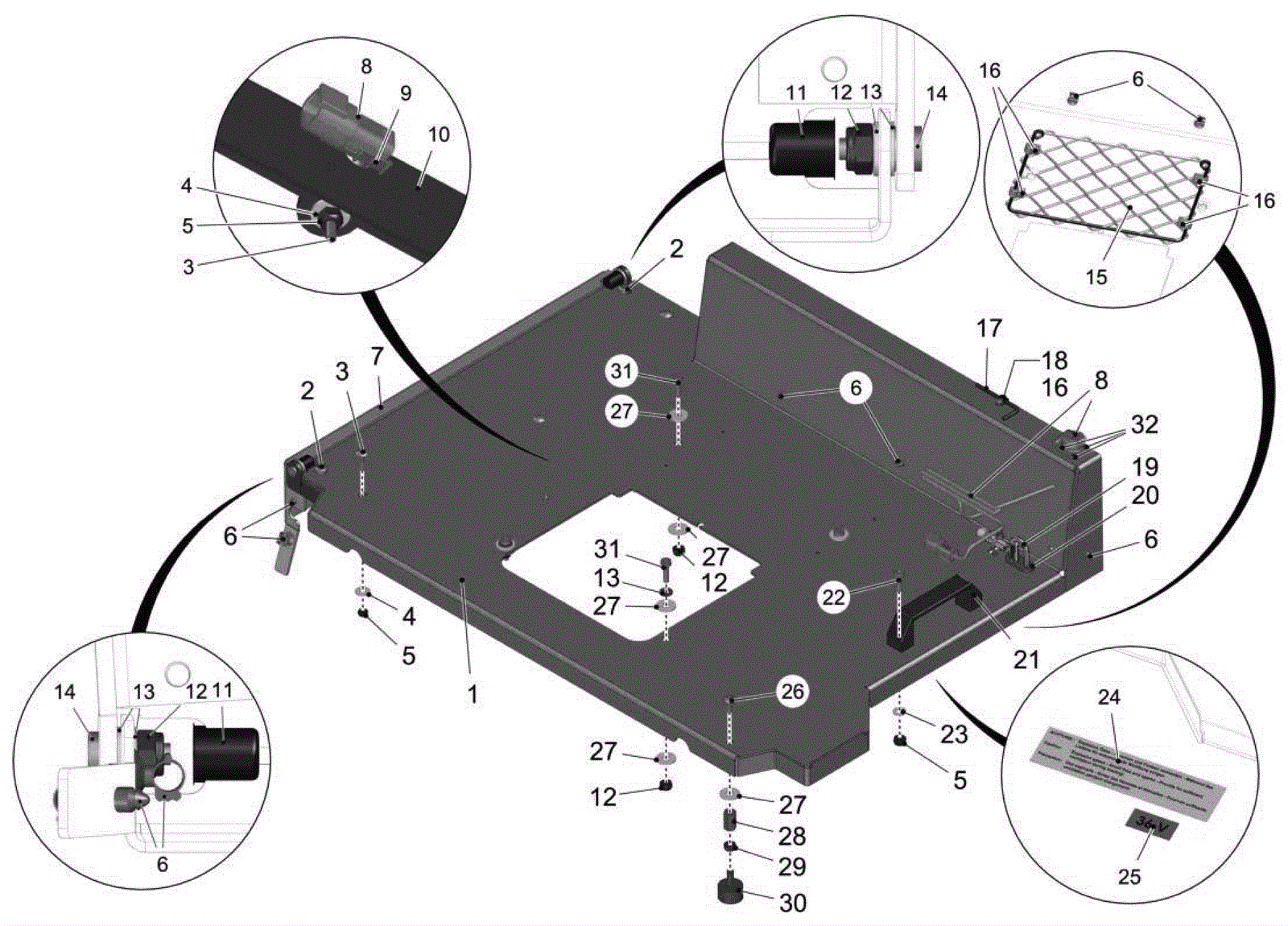

Powerboss Scrubmaster B260 Seat Plate Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-9504 Seat flap $515.38 1 usually ships 4-14 days
2 174-9457 Lens head screw $3.90 2 usually ships 4-14 days
3 174-9505 Round head screw $1.05 3 usually ships 4-14 days
4 274-3223 WASHER $0.95 3 usually ships 1-5 days
5 274-2757 HEXAGON NUT $1.05 3 usually ships 1-5 days
6 174-9470 Retainer $1.05 10 usually ships 4-14 days
7 174-9506 Hinge $46.71 1 usually ships 4-14 days
8 174-9507 Charging connection $287.83 1 usually ships 4-14 days
9 174-9508 Mounting clip $1.54 1 usually ships 4-14 days
10 174-9509 Frame $116.69 1 usually ships 4-14 days
11 174-9510 Lens cap $1.05 2 usually ships 4-14 days
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 8 ships same day
13 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
14 274-3618 Cylinder head stud $0.95 2 usually ships 1-5 days
15 174-9511 Luggage rack $61.49 1 usually ships 4-14 days
16 174-9512 Screw $1.05 5 usually ships 4-14 days
17 174-9513 Socket head wrench Call for price 1 (spare part on request) usually ships 4-14 days
18 374-2331 TUBE CLAMP $1.42 1 usually ships 1-5 days
19 174-9514 Key $3.35 1 usually ships 4-14 days
20 374-2997 GROMMET $1.07 1 usually ships 1-5 days
21 174-9515 Handle $14.77 1 usually ships 4-14 days
22 174-9516 Socket head cap screw $1.05 2 usually ships 4-14 days
23 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
24 374-3283 Explosive gases decal $7.15 1 usually ships 1-5 days
25 174-9517 36V decal $7.79 1 usually ships 4-14 days
26 174-8919 Screw M8 x 1 1/4 x 16 flanged stainless steel $2.75 1 usually ships 1-5 days
27 999-9097 Washer M8 flat stainless steel $0.99 9 ships same day
28 274-2805 HEX NUT $0.95 1 usually ships 1-5 days
29 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
30 174-9518 Buffer $5.03 1 usually ships 4-14 days
31 174-9519 Socket head screw $1.00 4 usually ships 4-14 days
32 174-9520 Screw $1.05 4 usually ships 4-14 days
